Commercial Wall Cavity Dryer - Fast 205°F Heated Air Injected Into Hard to Reach Wet Areas for Water Damage Restoration
- HEATED pressurized air flow for optimal wall cavity drying
- Self-Healing/Auto restart thermal protection safety feature

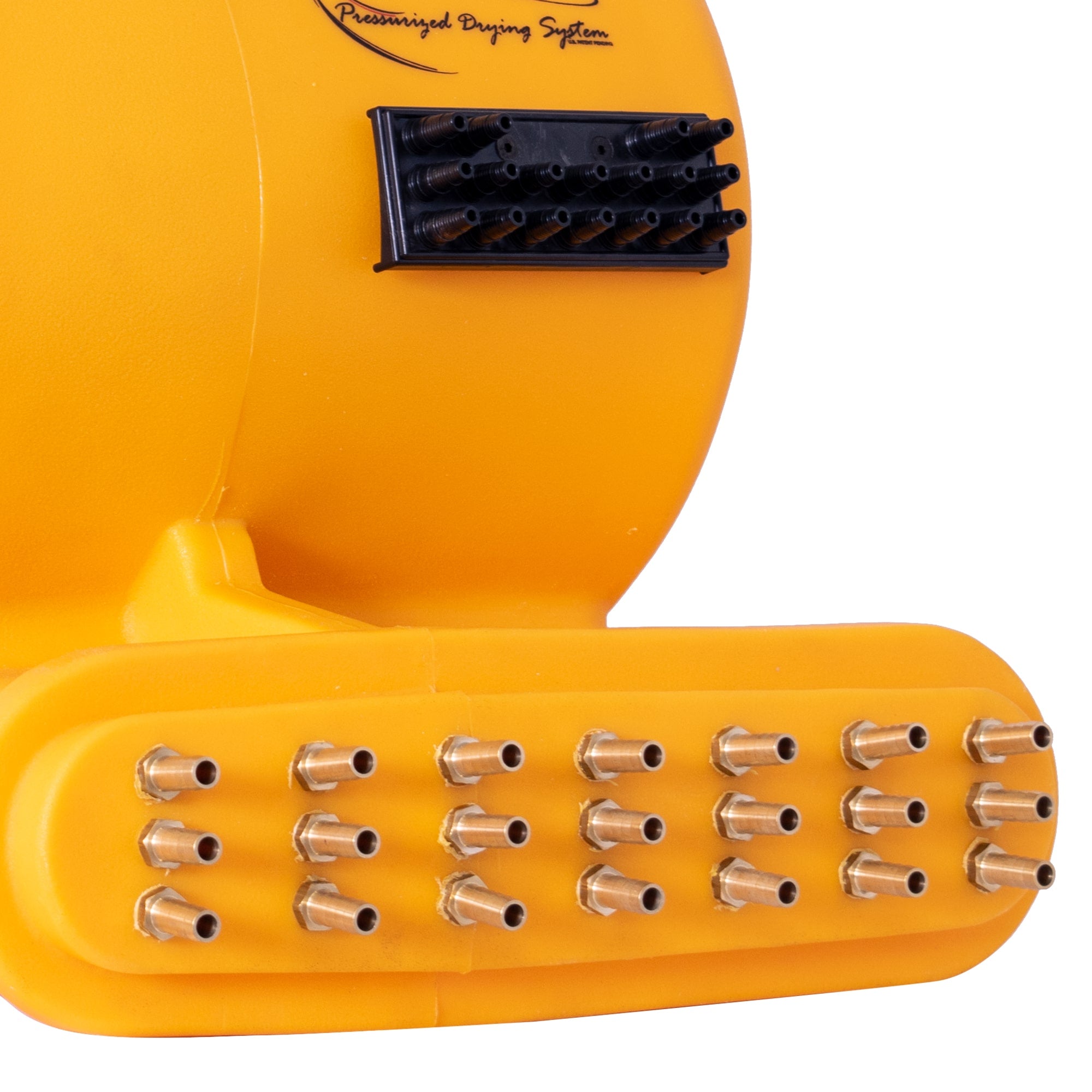

- On-Board Plug-Off system improves drying capability with increased pressure
- Strong Return-On-Investment that drives revenues and pays for itself in a few jobs

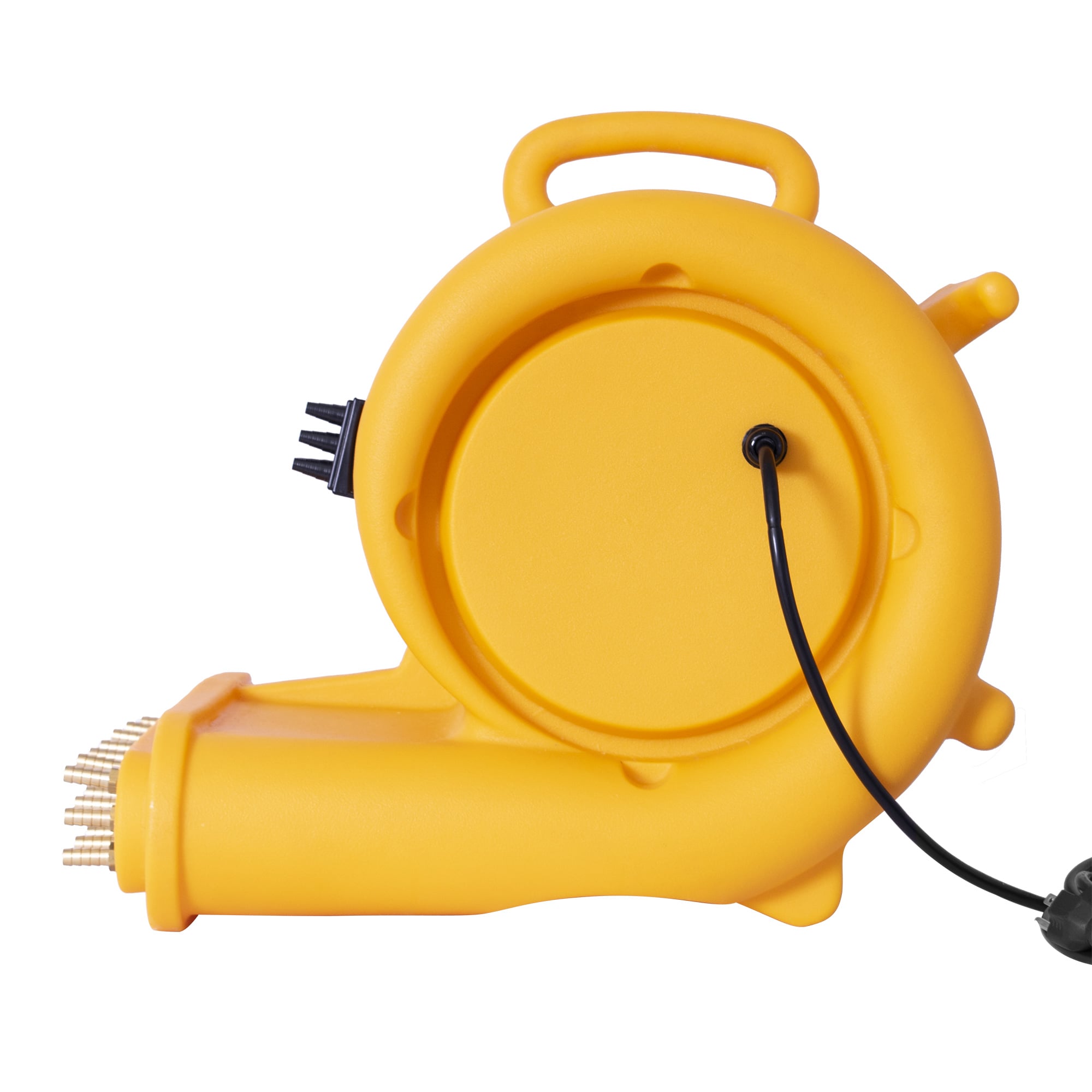

- Built-In cord wrap for easy storage without messy cords hanging
- Easy grip handle for easy portability from storage to jobsite
- 2 x 100’ rolls of tubing included for increased drying coverage
- Lightweight & stackable to maximize storage space
Xactimate Code: WTRWALL (Wall Cavity Drying -inj. Type)
Overview

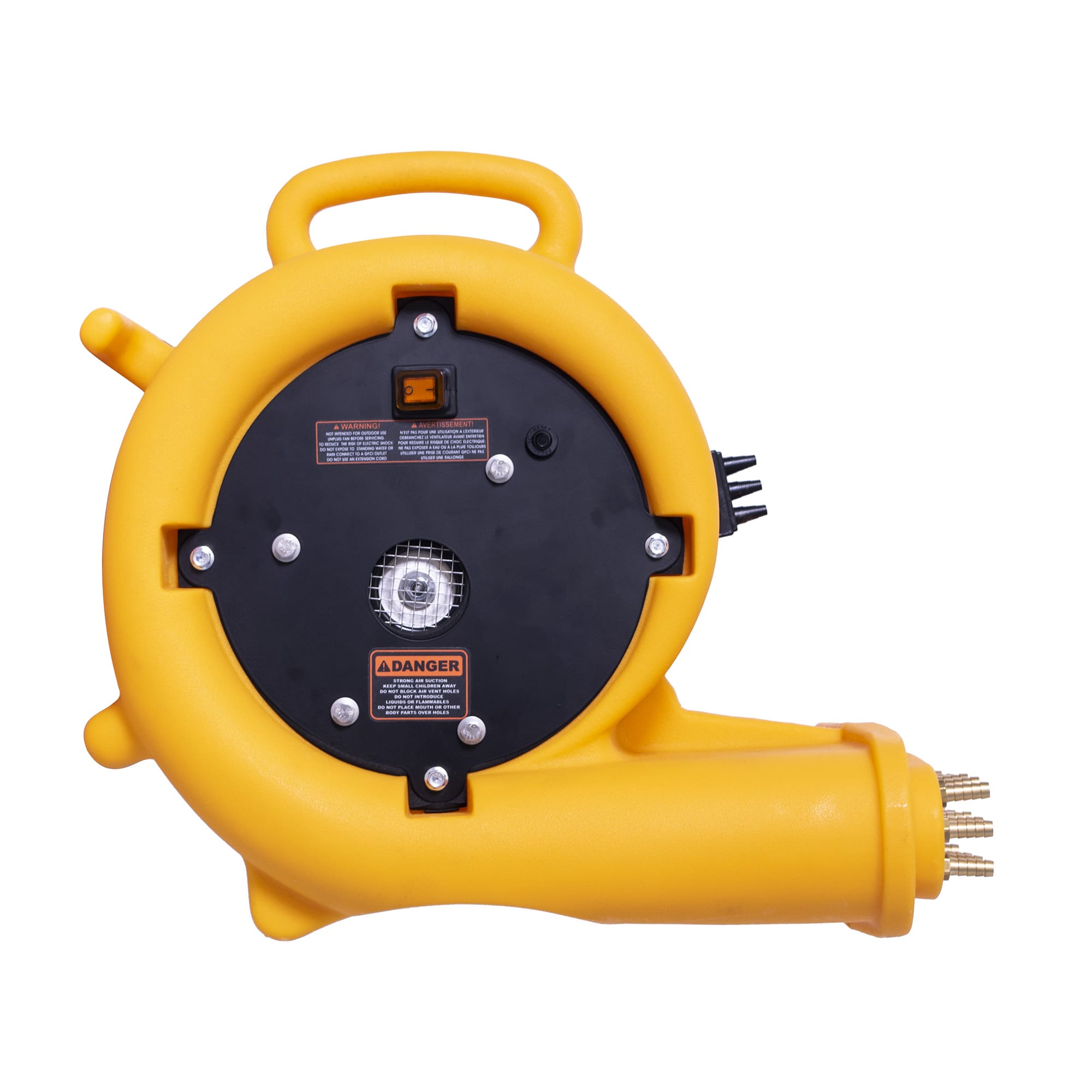

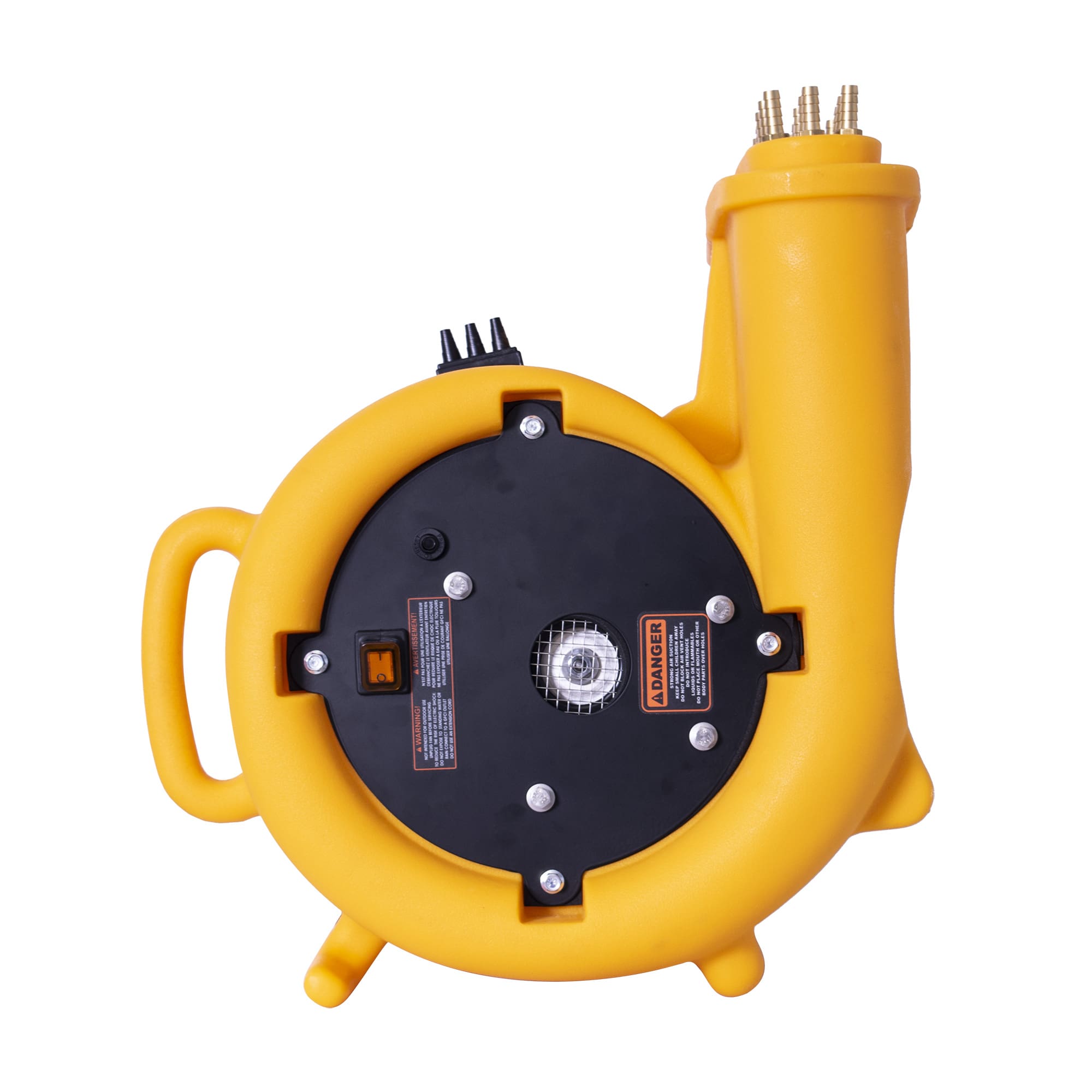

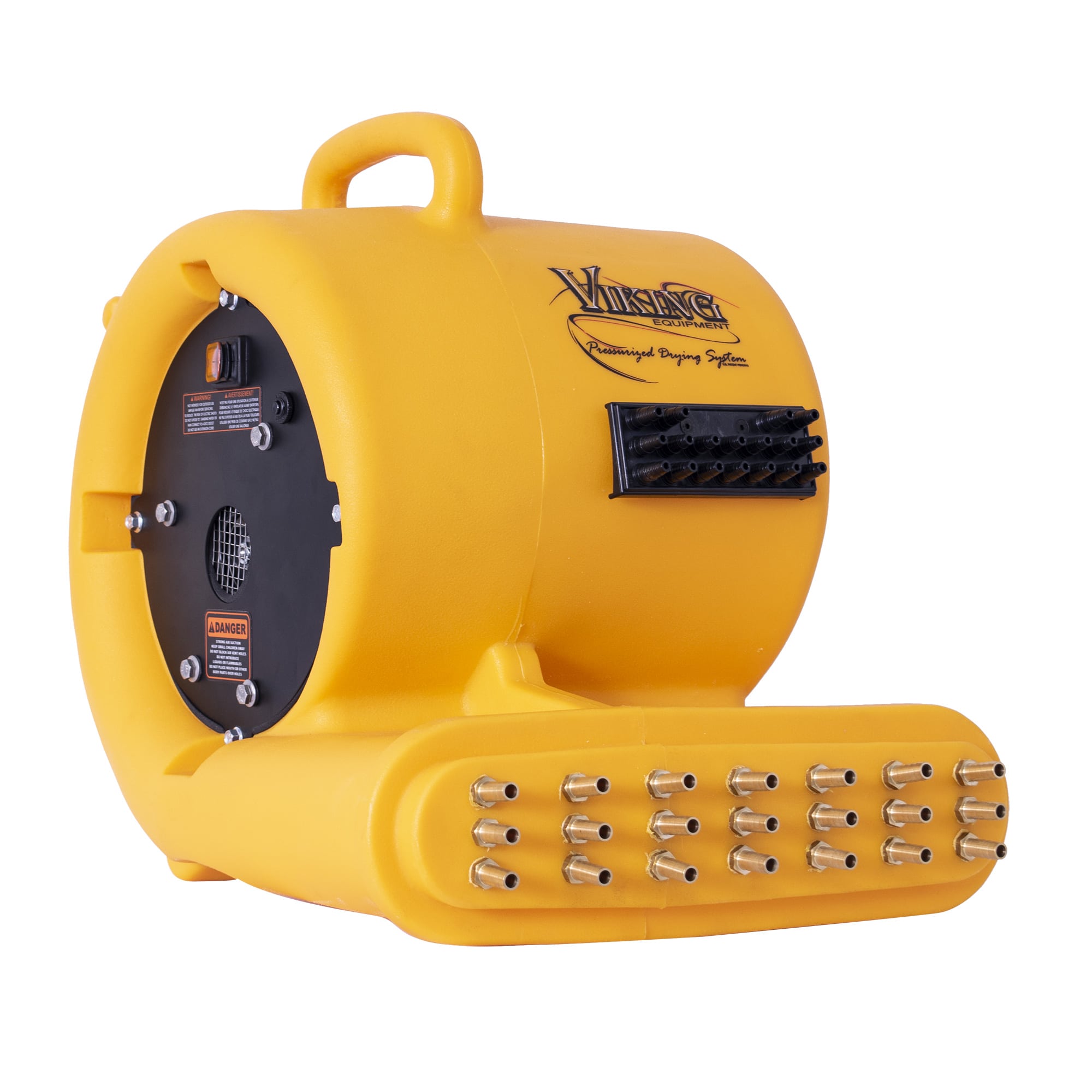

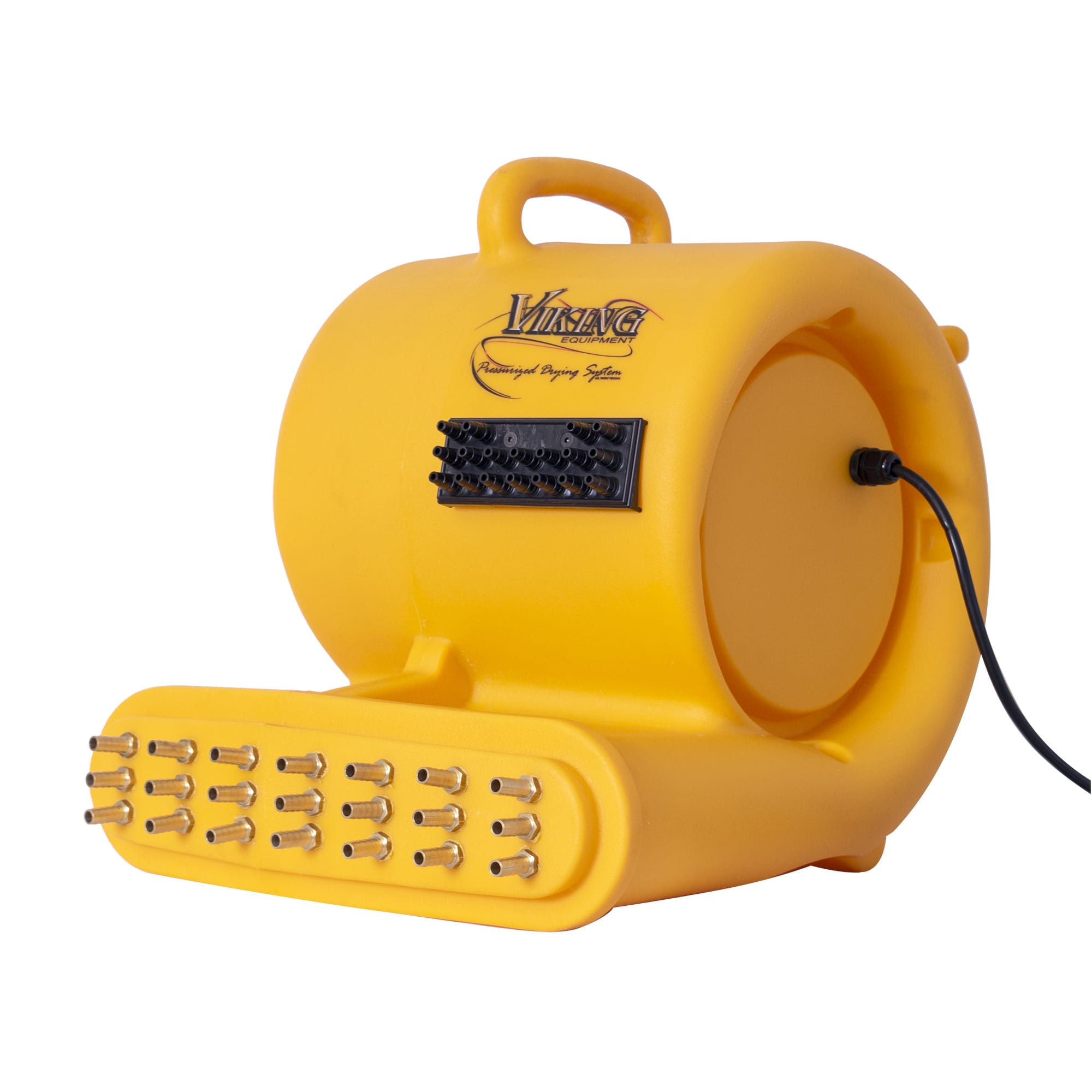

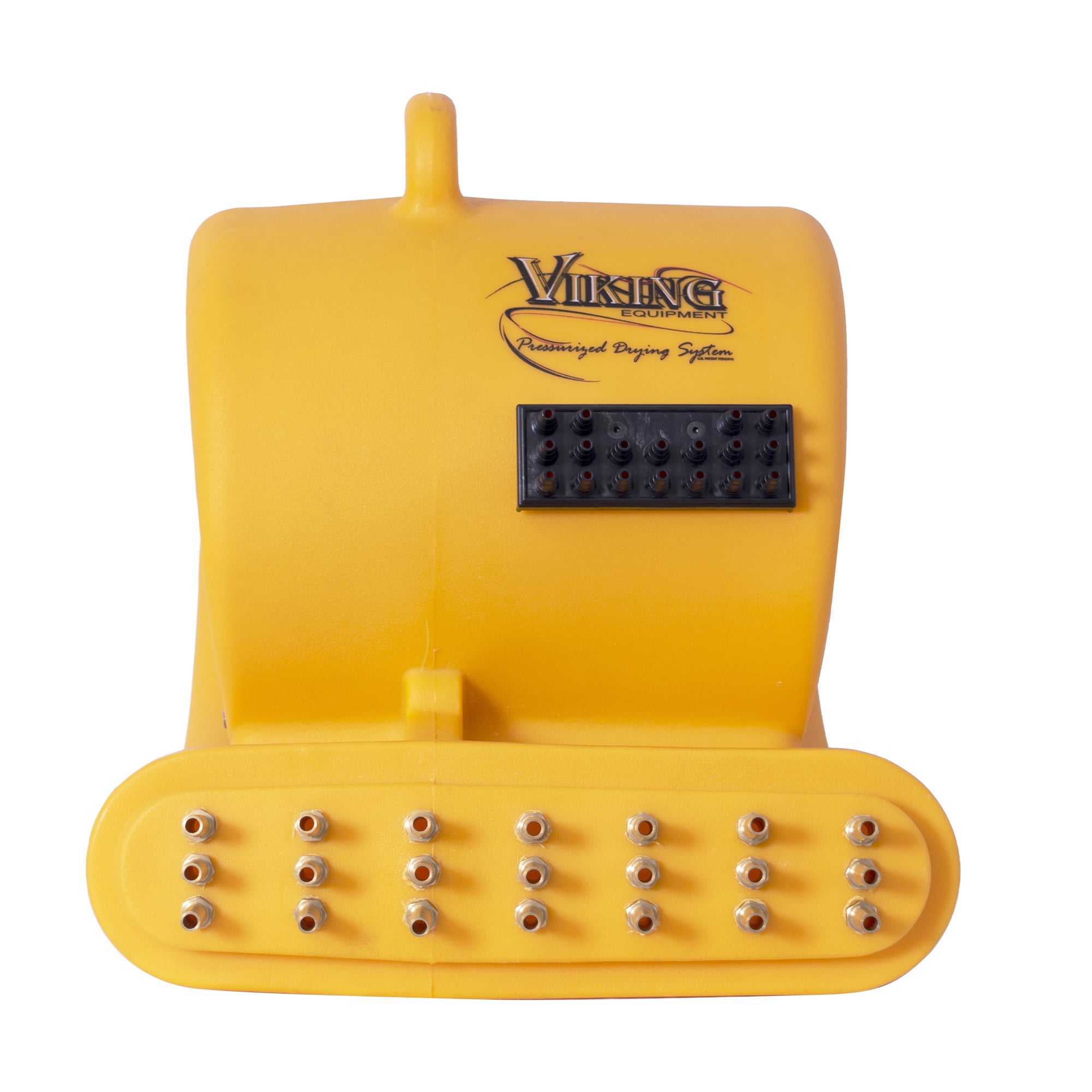

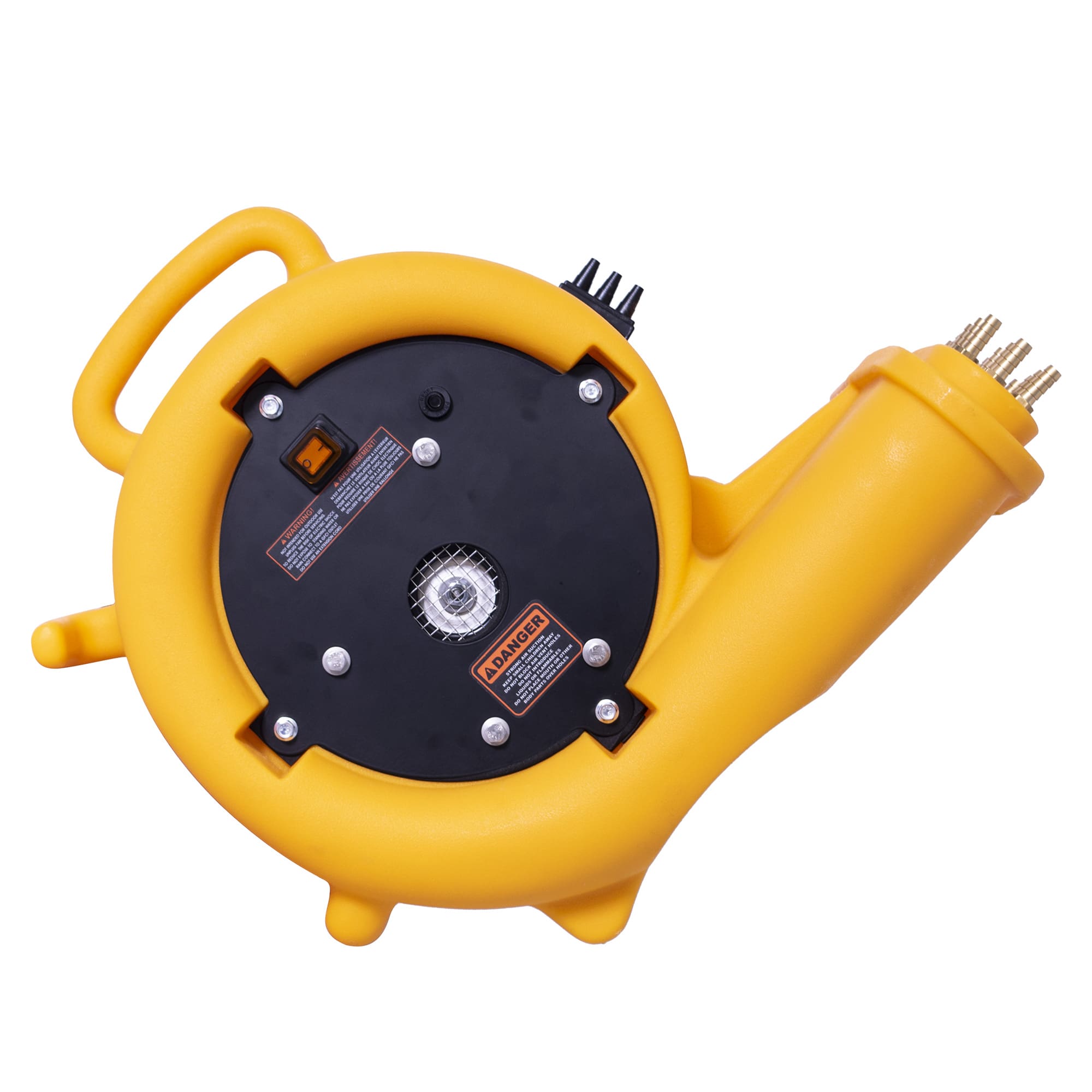

Heat to 205°F! The performance proven VIKING PDS-21 is a revolutionary all-in-one containment wall cavity dryer that, for a decade, has carried the restoration industry's strongest return on investment.
Innovative Design

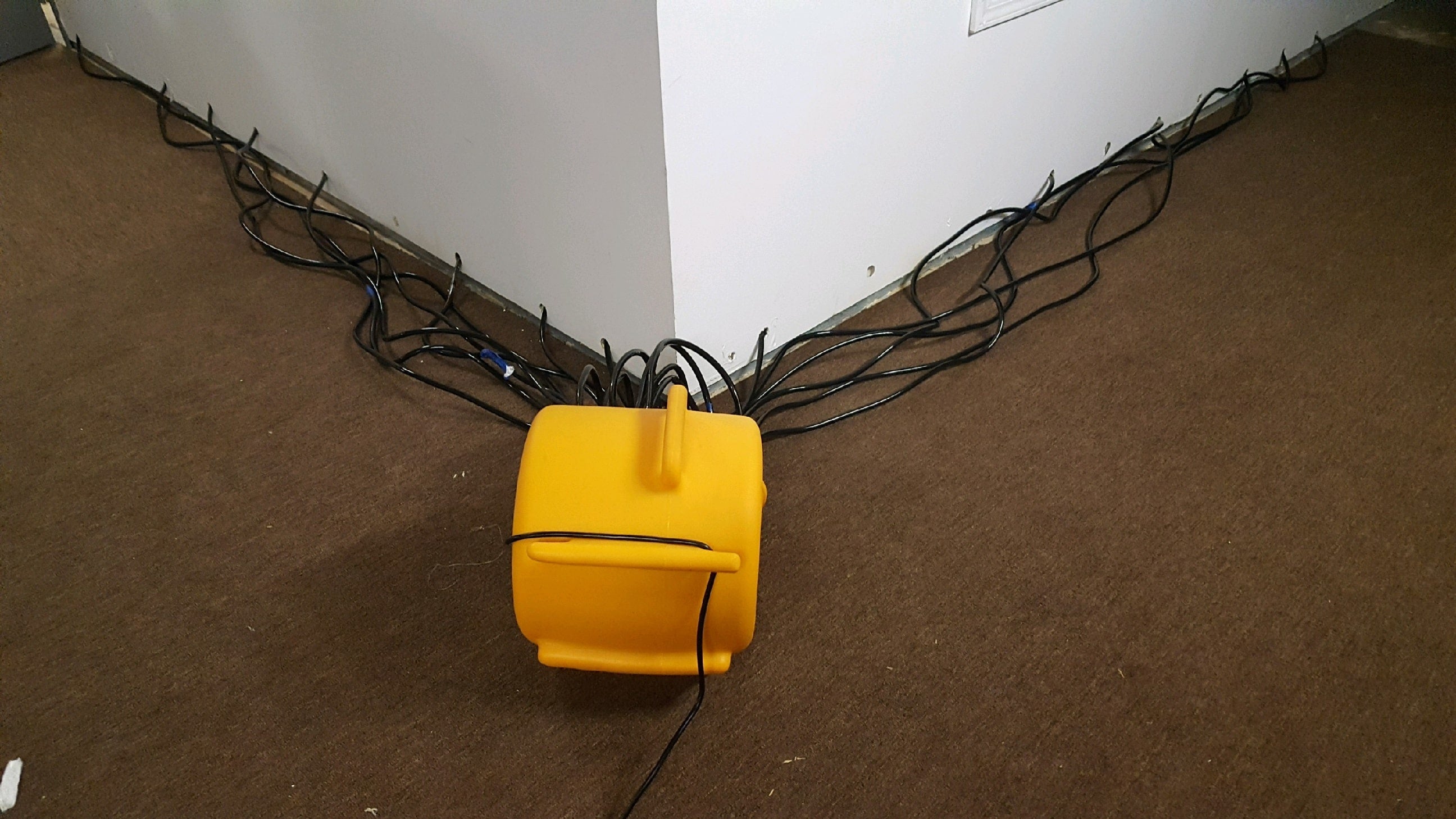

There is no air mover motor, no squirrel cage, and no attachments. The PDS-21 Pressurized Drying System quickly delivers dry heated air that is perfect for drying under sinks, behind cabinets and permanent furniture.
Portability & Convenience
This portable unit features a lightweight, stackable design that includes a built-in cord wrap.
Ease of Use
The frustration free PDS-21 is easy-to-use on big and small jobs alike. It makes drying a breeze!
Specifications
| Motor | 2-Stage Tangential By-Pass |
| Volts / Cycle | 115 V |
| Amp | 9.0 A |
| Rated Airflow | 92 CFM |
| Speeds | 1 |
| Cord Length | 25 ft |
| Stackable | Yes |
| Tubing | 3/8 id 1/2 od Black (200 Ft.) |
| Operating Temperature | Up to 205F |
| Unit Weight (lbs) | 19 LB |
| Unit Dimensions (L x W x H) | 20.5" x 16.7" x 18.5" |
| Box Weight (lbs) | 35.6 LB |
| Box Dimensions (L x W x H) | 21" x 19" x 22" |
| Housing | Roto Molded Polyethylene |
| Safety Certifications | UL Approved Motor |

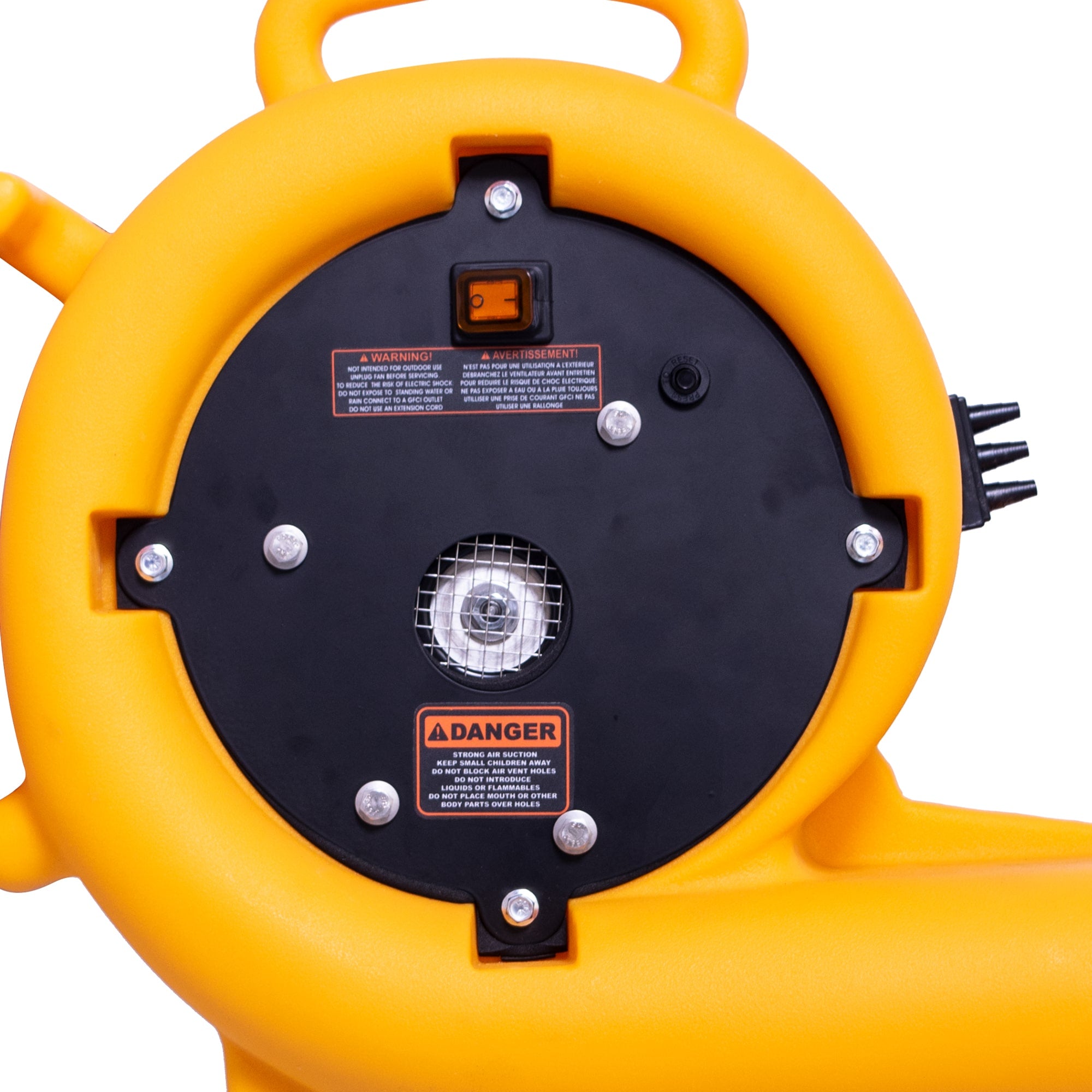

| Thermal Protection | Thermal Protection Switch + Auto Reset |
| UPC | 848025012529 |
| Color | Green, Yellow |
Product Resources
Warranty
Manufacturer's 1 Year Limited Warranty
***PLEASE NOTE***
The XPOWER/VIKING Limited Warranty DOES NOT COVER the brushes on the Pressurized Wall Cavity Drying (PDS) line of equipment beyond the first use. Any motor issues beyond the first use will require the customer to return the unit(s) for inspection. The PDS-12/PDS-21 brushes and motors are wear and tear parts that will require replacing over time.
