Pressurized Drying System - Injects Heated Air Into Wall Cavities with Variable Speed Control
- Pressurized heated airflow for optimal wall cavity drying
- Variable speed control for continued drying on occupied dries
- Quick release nozzles improve efficiency by making setup and takedown easy
- Two 1 PSI pressure release valve maintains consistent drying capability
- Built-In Cord Wrap for easy storage without messy cords hanging
- Easy Grip Handle for easy portability from storage to jobsite
- 1 100’ Roll of Tubing for increased drying coverage
- Lightweight & Compact to reduce fatigue and maximizes storage space
- Strong Return-On-Investment that drives revenues and pays for itself in a few jobs
Xactimate Code: WTRWALL (Wall Cavity Drying – Inj. Type)
Overview

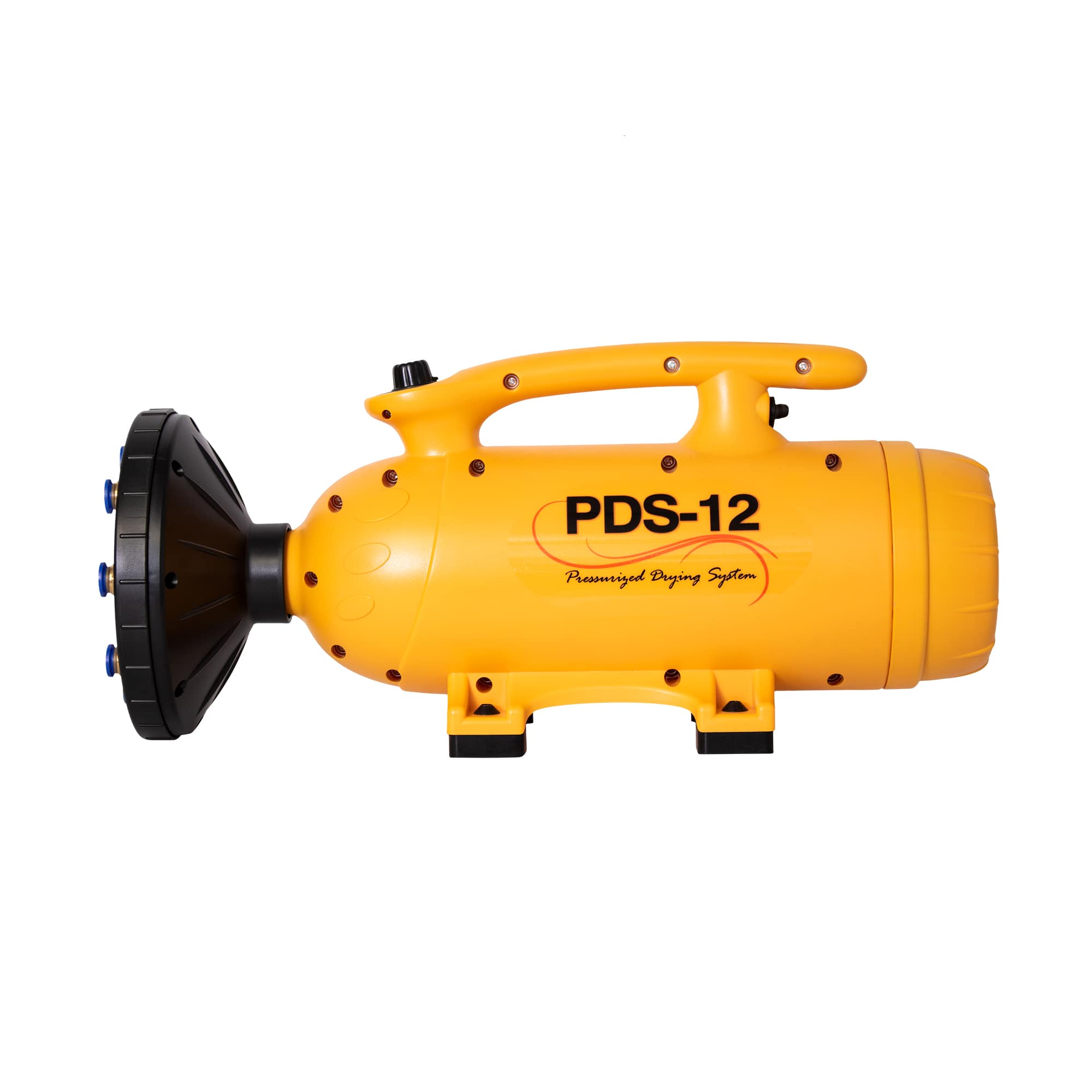

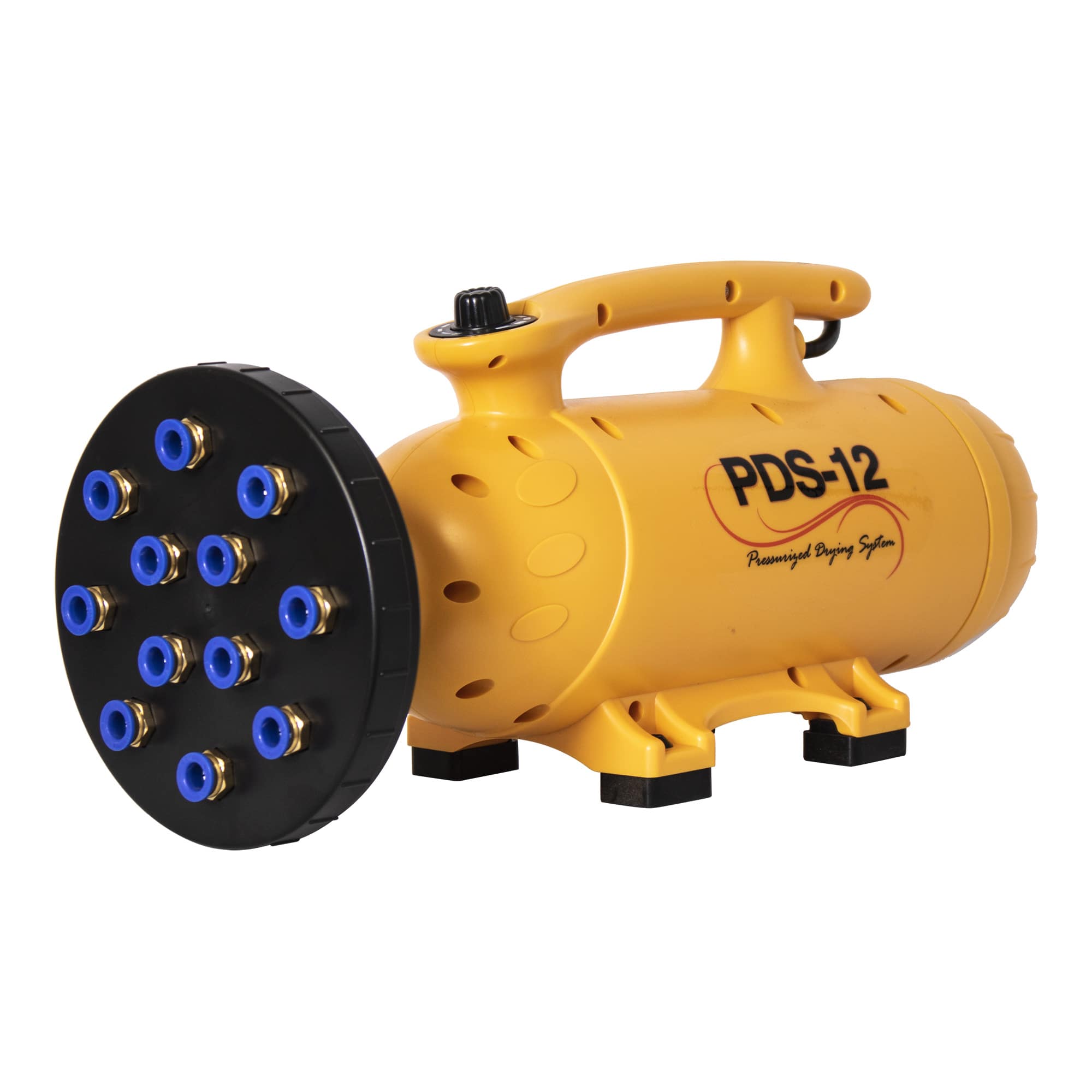

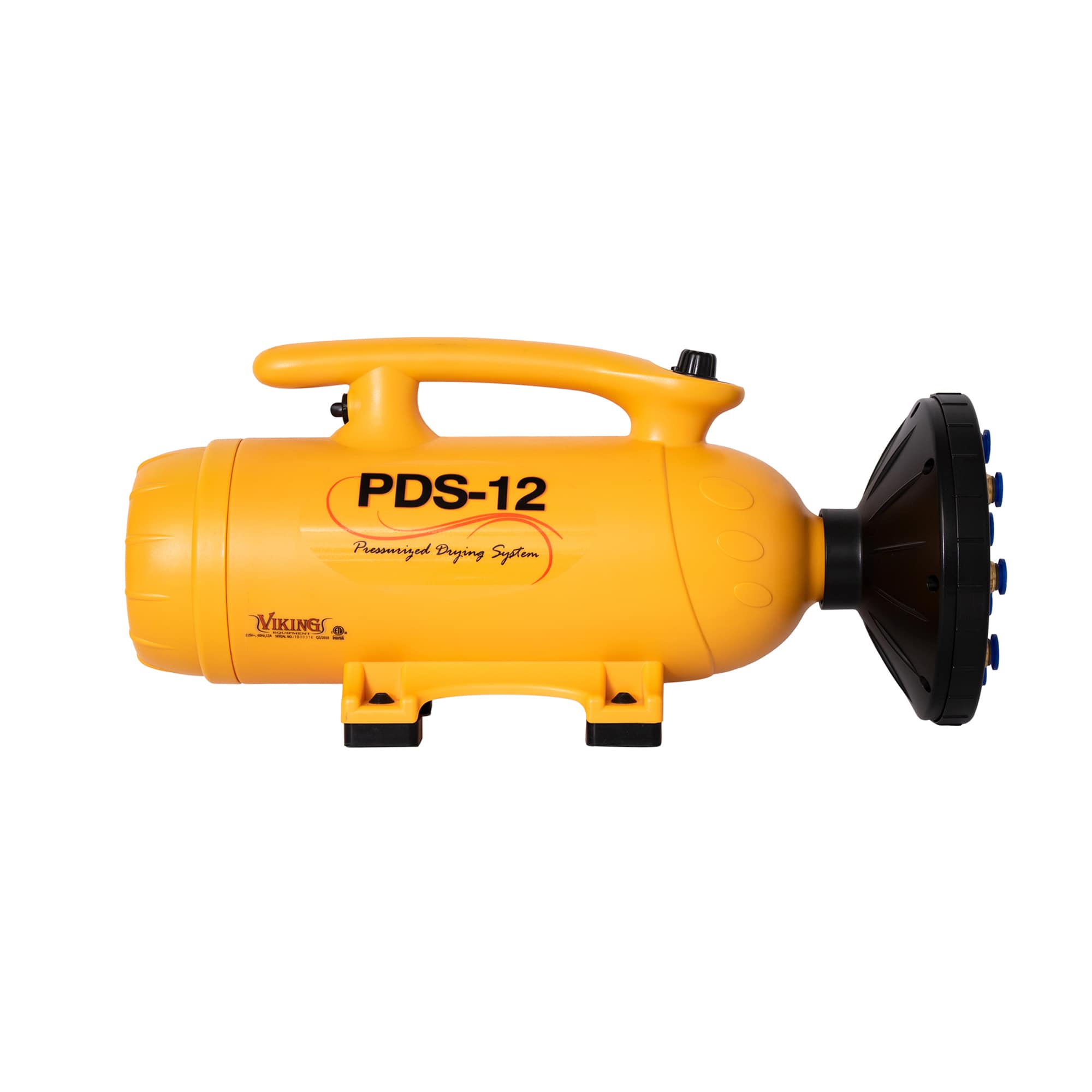

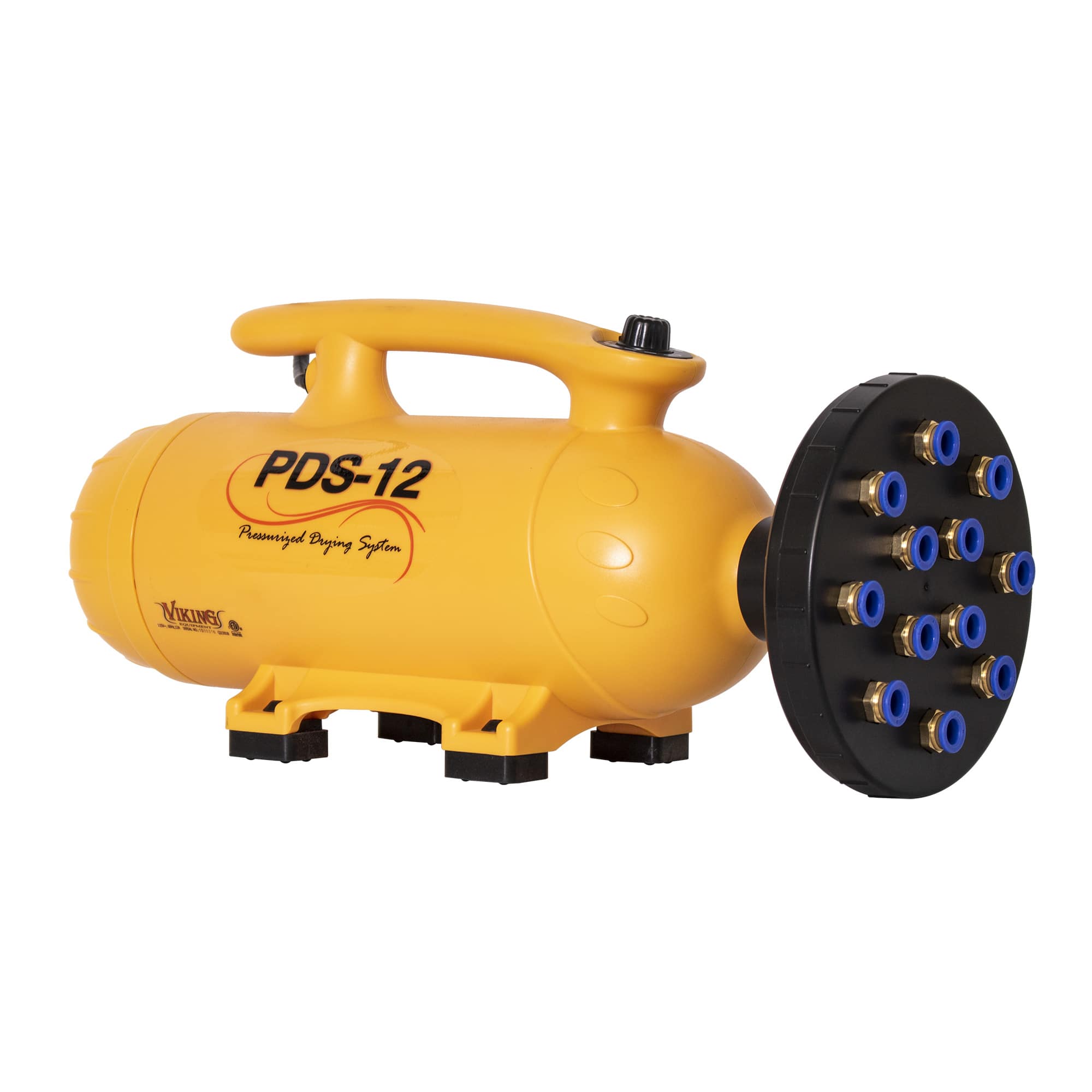

The VIKING PDS-12 by XPOWER Manufacture is COMING IN HOT! This NEW Pressurized Drying System with HEAT will QUIETLY improve dry times with ease.
Quiet Operation
The PDS-12 operating volume is very low and so it's a NO BRAINER for occupied dries! No more homeowners shutting off your Pressurized Drying Systems in the middle of the night!
Performance
This compact industry changing wall cavity dryer features the same drying capability as the performance proven PDS-21, but with a VARIABLE SPEED control that provides the ability to dial in the exact airflow needed for different drying applications.
Applications
The PDS-12 will quickly and QUIETLY deliver dry heated air that is perfect for drying under sinks, behind cabinets and permanent furniture.
Convenience

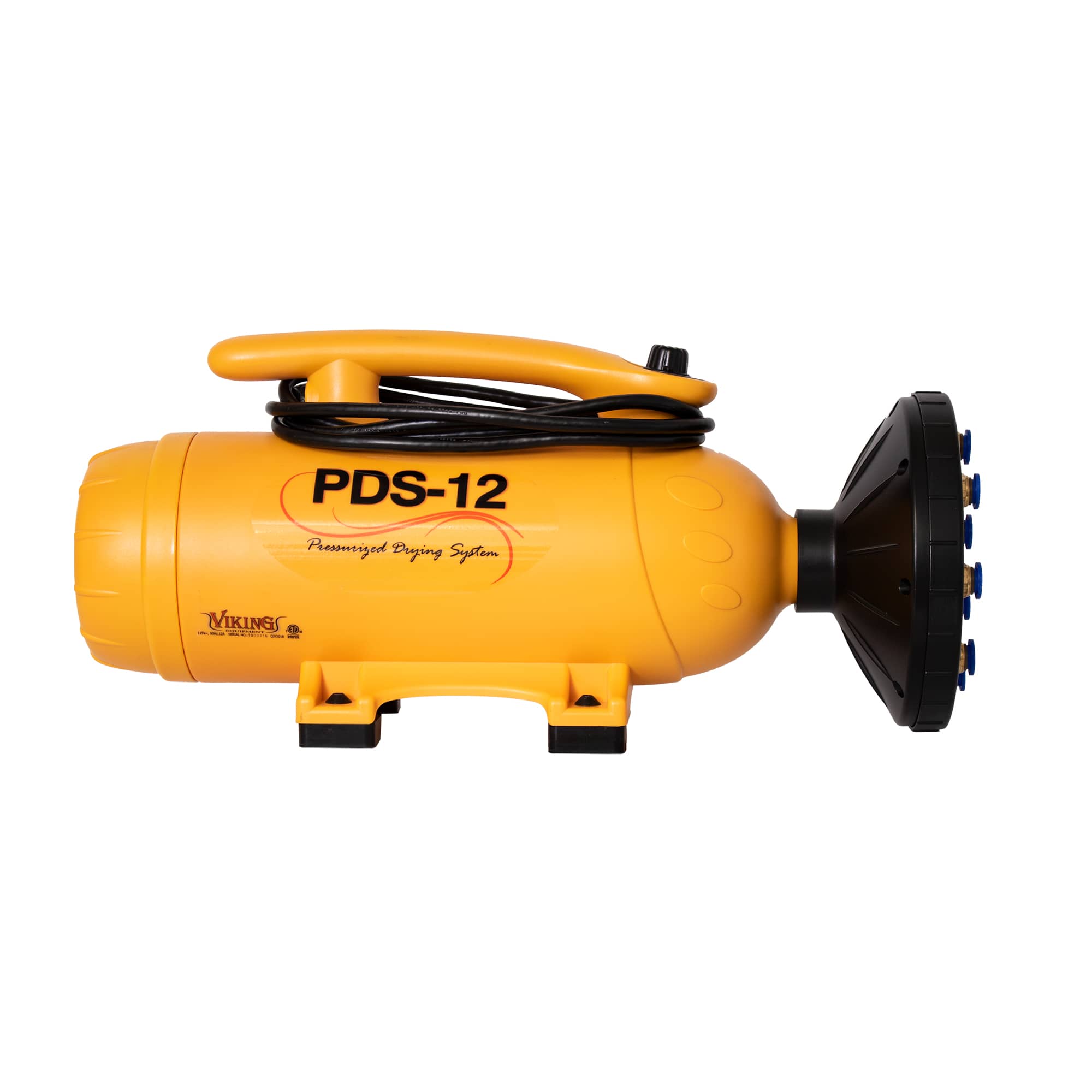

The lightweight PDS-12 features a convenient wrap around cord design and quick release nozzles for quick setup and tear down.
Specifications
| Motor | 4 HP |
| Volts / Cycle | 115 V |
| Amp | 12.0 A |
| Rated Airflow | 160 CFM |
| Speeds | Variable Speed |
| Cord Length | 10 Ft. |
| Stackable | No |
| Tubing | 3/8 id 1/2 od Black (100 Ft.) |
| Operating Temperature | Up to 100F |
| Unit Weight (lbs) | 18.3 LB |
| Unit Dimensions (L x W x H) | 20.6" x 8.1" x 9.7" |
| Box Weight (lbs) | 22.00 LB |
| Box Dimensions (L x W x H) | 18.5" x 13.0" x 11.8" |
| Housing | ABS |
| Safety Certifications | ETL/CETL |
| Thermal Protection | No |
| UPC | 848025012512 |
Video
Product Resources
Warranty
Manufacturer's 1 Year Limited Warranty
***PLEASE NOTE*** The XPOWER/VIKING Limited Warranty DOES NOT COVER the brushes on the Pressurized Wall Cavity Drying (PDS) line of equipment beyond the first use. Any motor issues beyond the first use will require the customer to return the unit(s) for inspection. The PDS-12/PDS-21 brushes and motors are wear and tear parts that will require replacing over time.
