Professional-Grade Drum Fan for Industrial Applications

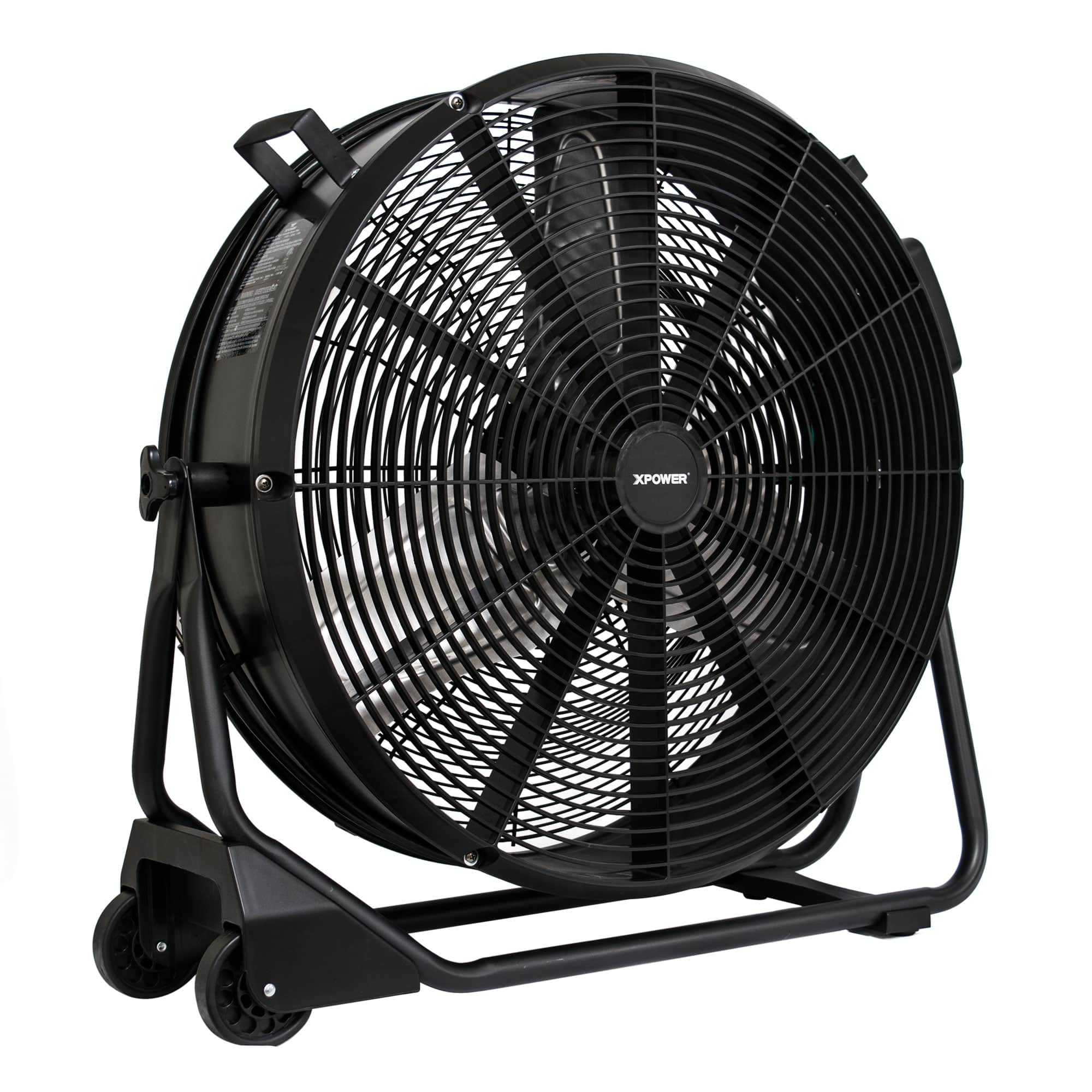

- 24” Industrial Drum Fan / Barrel Fan
- Powerful 1/2 HP brushless DC motor with variable speed control
- Low 1.8 Amp draw with 5,800 CFM maximum airflow capacity
- Rugged steel housing and fan blades
- Portable and easy to roll
- Wide range of operating positions
- Safety certified and comes with a manufacturer’s limited 1 year warranty
Applications

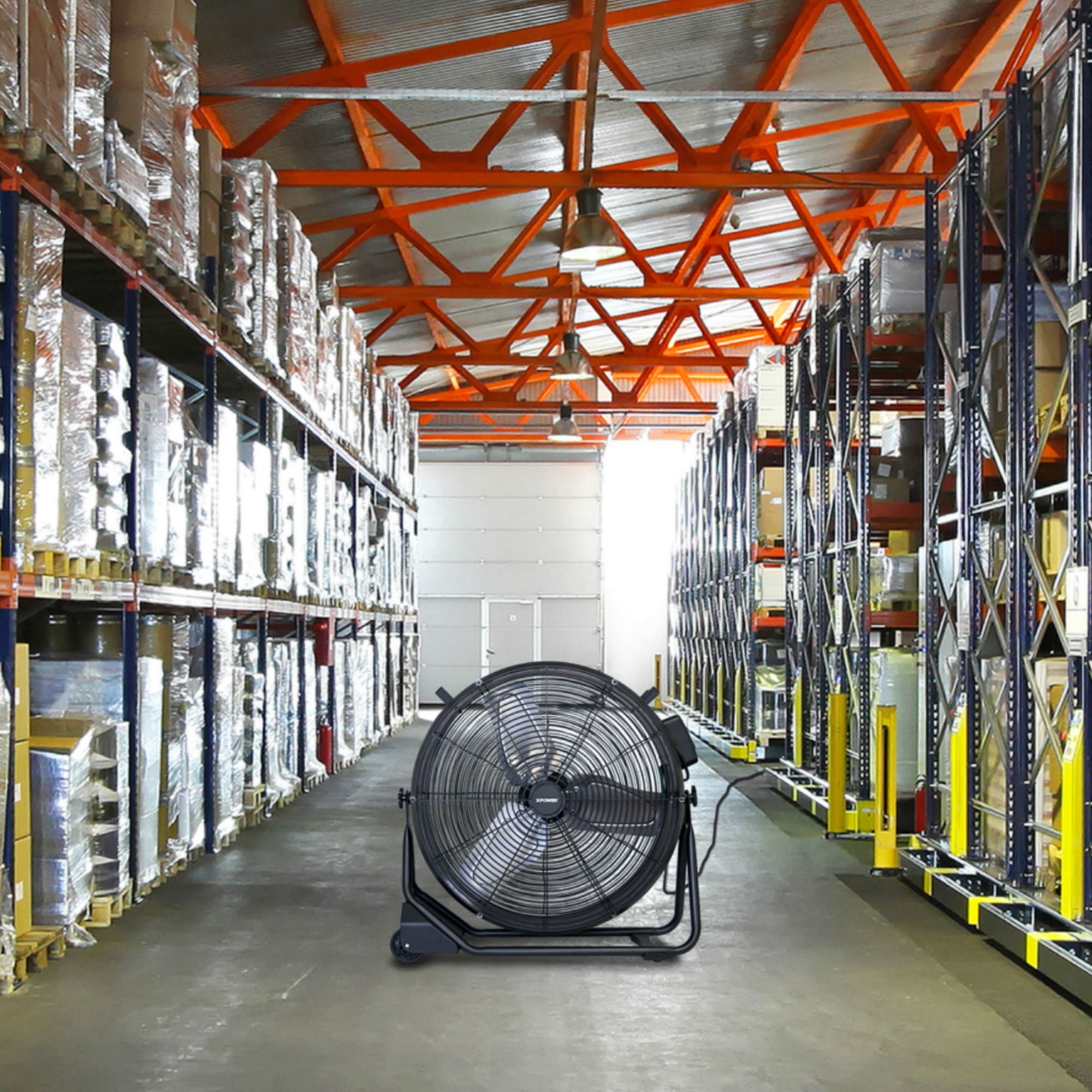

Perfect candidate for your ventilation needs in warehouse, barn, garage, or workshop settings.
Motor Specifications
- 1/2 HP brushless DC motor
- Rated at 5800 CFM
- Maximum 1.8 Amps draw
Control Features

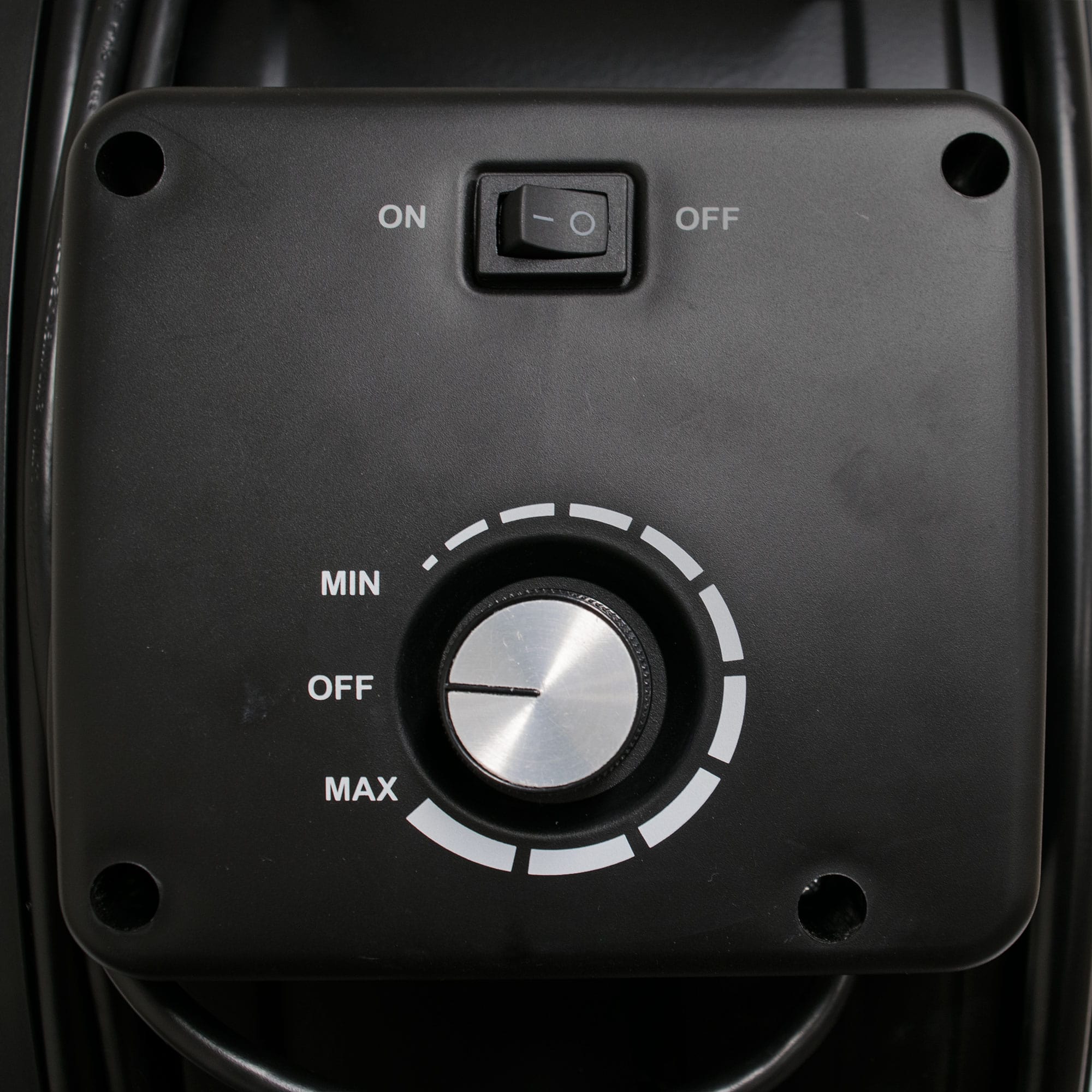

Variable speed control allows you to set the airflow necessary for your application.
Portability & Design

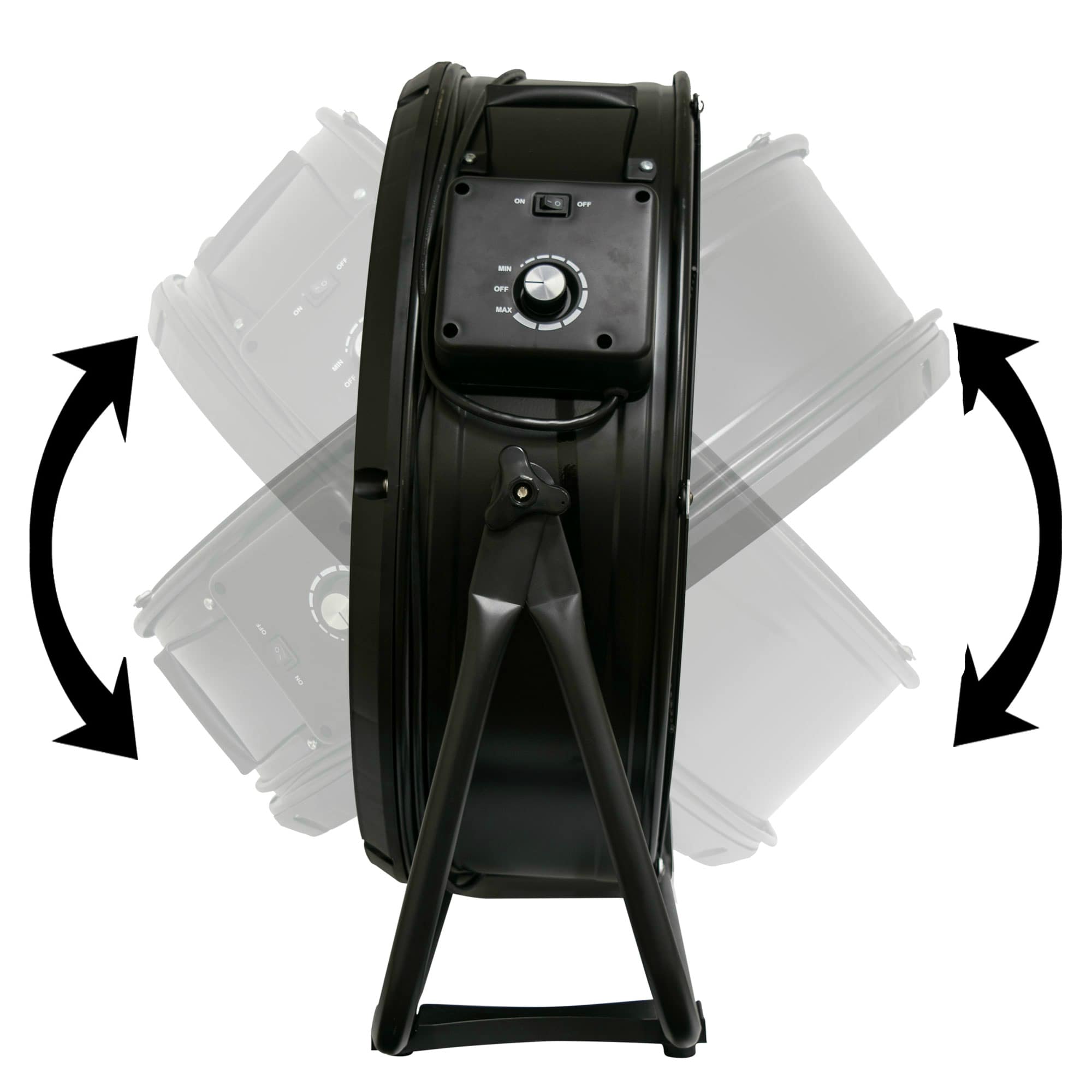

Durable rack equipped with easy to roll wheels maximize portability while offering a wide range of operating positions.
Safety & Compliance
- ETL/CETL safety certified
- Meets OSHA requirements
Performance Summary
The FD-630D is ready for your ventilating needs no matter how large or small the task.
Specifications
| Volts / Cycle | 115V / 60 Hz |
| Motor | 1/2HP |
| Power | 1.8 A |
| Rated Airflow | 5800 CFM |
| Speeds | Variable Speed Control |
| RPM | 1200 |
| Unit Weight (lbs) | 29.3 |
| Unit Dimensions (L x W x H) | 30.1″ x 9.3″ x 29.0″ |
| Box Weight (lbs) | 34.80 |
| Box Dimensions (L x W x H) | 32.40″ x 11.80″ x 33.30″ |
| Operating Positions | 200° |
| Cord Length | 10 ft |
| Housing | Metal |
| Stackable | No |
| Daisy Chain (GFCI) | No |
| Safety Certifications | ETL/CETL |
| Warranty | 1 Year Limited |
| UPC | 848025041987 |
Video
Product Support
Warranty
Manufacturer's 1 Year Limited Warranty
