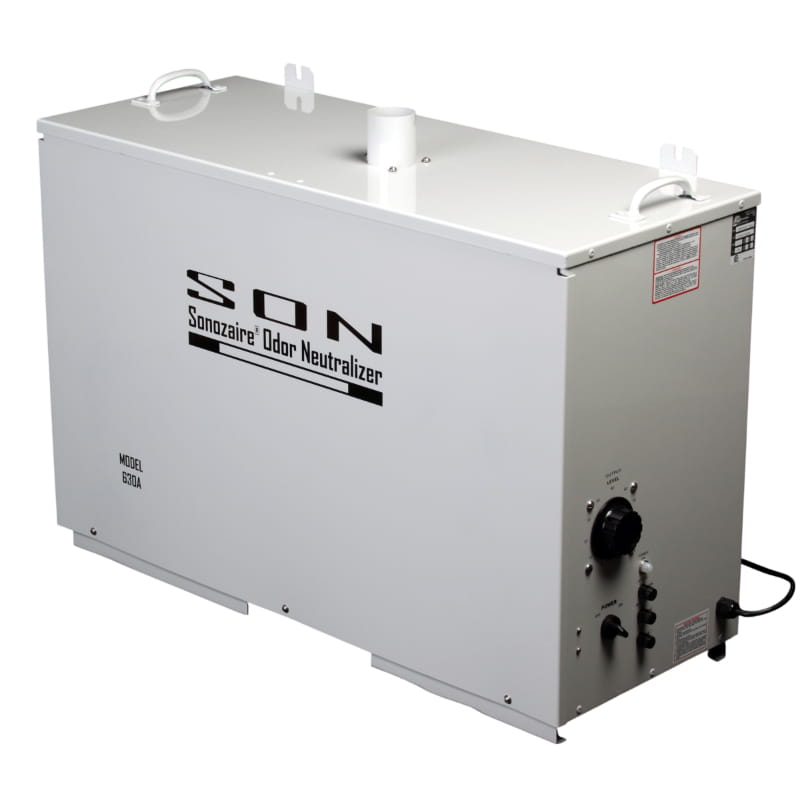

Sonozaire 630A
When faced with a large scale odor problem, restoration companies, waste management operators, dry cleaners, and cleaning management firms reach for the Sonozaire Model 630A.
As the largest unit in the Sonozaire lineup, the 630A generates ozone (O₃) on-site through corona discharge, pulling oxygen from the surrounding air and converting it into a powerful oxidizer that breaks odor molecules down at the source, with no chemicals and no masking fragrance.
Built with heavy-duty aluminum construction and dual electrode banks, it's rated for the largest treatment volumes in the Sonozaire lineup — designed for large compactors, garbage rooms, sewage lift stations, and full-scale on-site restoration jobs.
Main Applications for the Sonozaire Model 630A
- Waste Compactors & Containers: 30 – 50 cubic yards (23 – 38 cubic meters)
- Garbage Rooms: 12,150 – 20,250 cubic feet (344 – 574 cubic meters)
- Fire/Smoke/Water Restoration (On-Site): 15,000 – 750,000 cubic feet (425 – 21,240 cubic meters)
- Odor Treatment Chambers: up to 15,000 cubic feet (420 cubic meters)
Key Features of the Sonozaire Odor Neutralizer 630A
- Removes odors — Smoke, mold/mildew, garbage/fermentation odors, pet odors, urine, sewage gas, tobacco, chemicals, and industrial process odors.
- Chemical-free odor destruction — Ozone is generated electrically from ambient air, requiring no chemicals or masking fragrances.
- Built for the largest jobs in the Sonozaire lineup — Rated to treat on-site restoration volumes up to 750,000 cubic feet, the largest capacity of any Sonozaire model.
- Dual electrode assemblies — Two banks of three glass/electrode cells generate ozone for large-scale compactor, garbage room, and full-building restoration applications.
-
Two treatment modes for restoration flexibility
- Shock treatment mode – sealed room at maximum output for rapid, high-concentration treatment.
- Soak treatment mode – lower ozone levels distributed through HVAC over a longer period.
- Variable ozone output control — Dial ozone production up or down on the side-mounted control knob to match the odor load.
- Optional 12-hour timer with continuous-run/hold-on feature — Timer option automatically shuts the unit off after a set duration; hold-on feature allows continuous operation for larger odor loads.
- No chemical residue — Ozone naturally reverts to oxygen after treatment, leaving no chemical residue in the treated space.
- 100 CFM blower with washable air filter — Internal blower draws fresh air through a cleanable filter, maintaining consistent ozone output; filter is washable and re-installable.
- Heavy-duty aluminum construction — Built for the demands of continuous industrial and commercial service.
-
CSA Certified — Standard 115V models are certified under CSA file 151665 and LR 30836.
The Sonozaire 630A Ozone Odor Remover is ideal for many industries
Water/Fire/Smoke Damage Restoration
Waste Management & Large Compactor/Container Odor Control
Dry Cleaning Odor Removal & Content Restoration
Specifications
Weight: 85.0 lbs
Dimensions: 36.0 × 27.0 × 14.0 in
Power: 260 watts
Blower volume:
@ 60hz = 100 cfm
@ 50hz = 136 cu m / hr
Safety
For use in unoccupied areas only. The Sonozaire Model 630A produces ozone levels that exceed safe limits for occupied spaces. Areas being treated must be vacated during operation, and re-entry should be delayed until ozone has reverted back to oxygen — typically 90 minutes to 2 hours after the unit shuts off.
Never use near flammable gases or liquids. Flammable vapors drawn into the unit's air intake or electrical components can ignite, creating a fire or explosion risk.
Post warning signage. Any room or area being treated should have a visible notice indicating ozone treatment is in progress and that the space must not be entered.
Protect sensitive materials before treatment. Ozone will degrade natural rubber (latex) over time. Remove or cover rubber items, pets, fish tanks, live plants, and irreplaceable items such as paintings before running a treatment cycle.
Not for use in occupied spaces, hospitals, or sick rooms. This unit is an industrial-strength ozone generator and is not designed or approved for continuous use around people, patients, or animals without additional engineering controls (such as ozone sensors) to limit exposure to regulatory levels.
Follow exposure limits. OSHA permits a maximum of 0.1 ppm ozone averaged over an 8-hour period; the FDA limit for continuously occupied spaces is 0.05 ppm. Levels above 5 ppm are considered immediately dangerous to life and health.
Maintain proper electrical grounding. Always use a grounded, three-prong outlet. Never cut or remove the ground prong from the power cord.
Refer to owner's manual for complete safety details and instructions.
Product Manual
