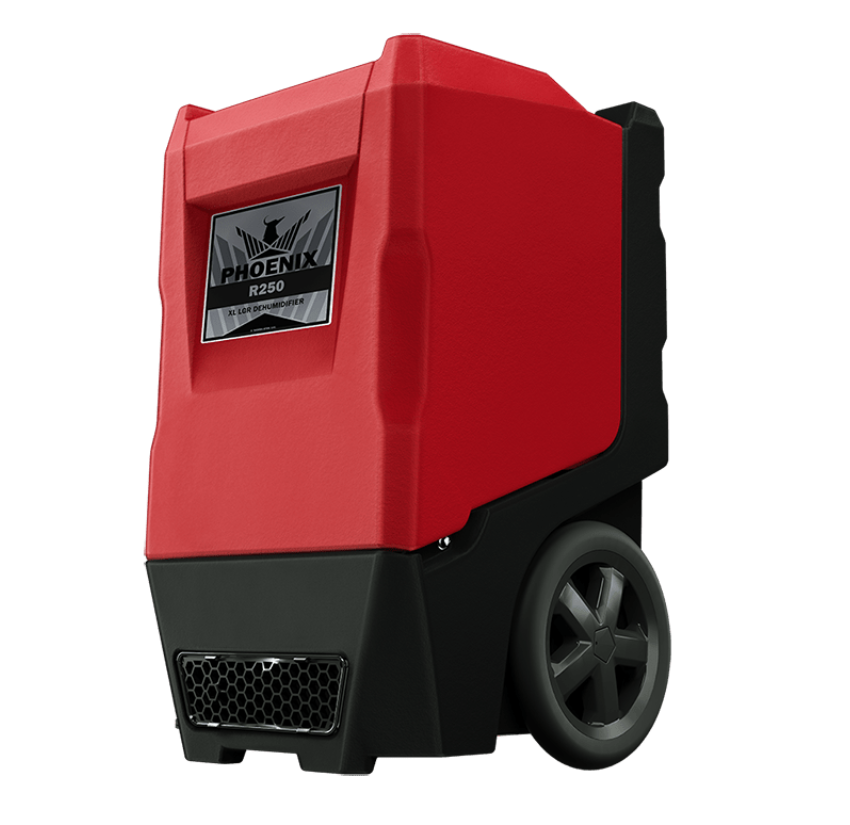

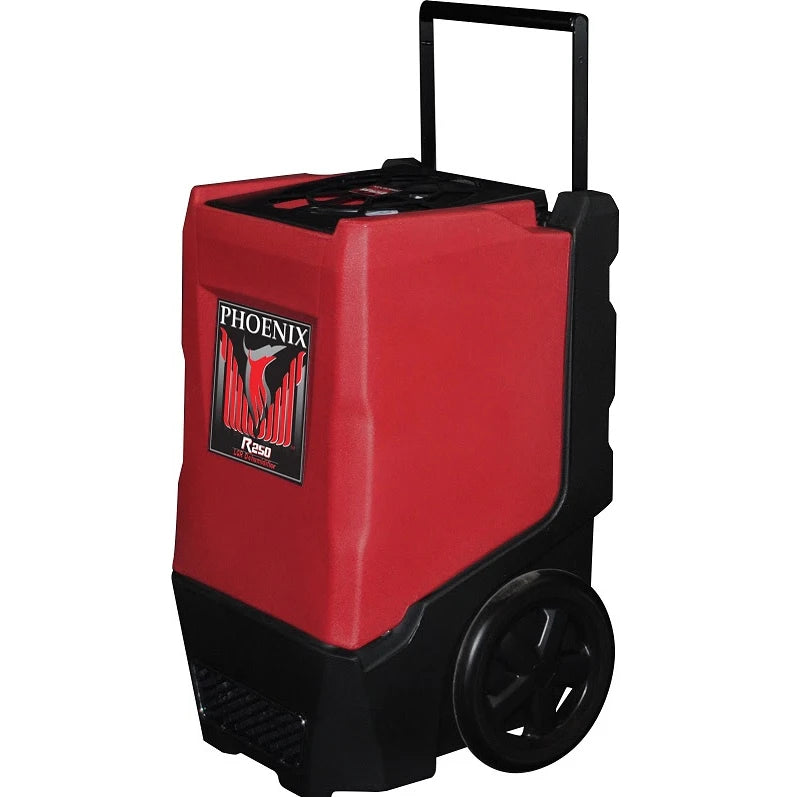

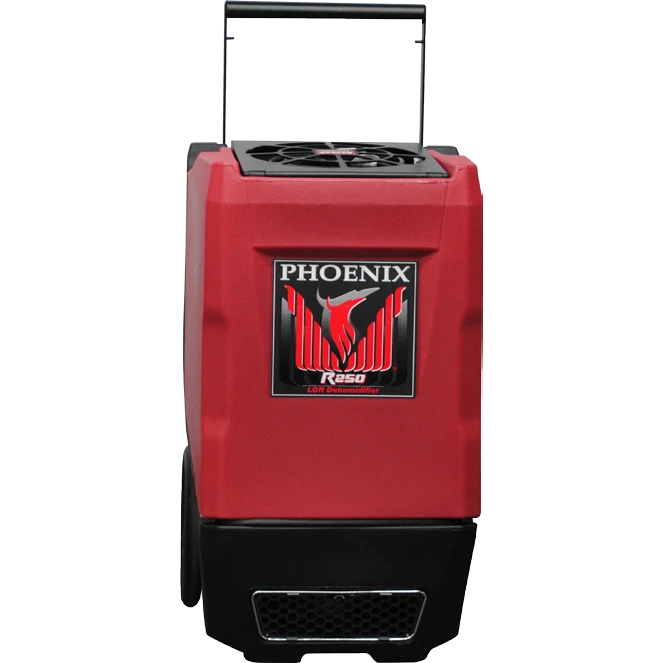

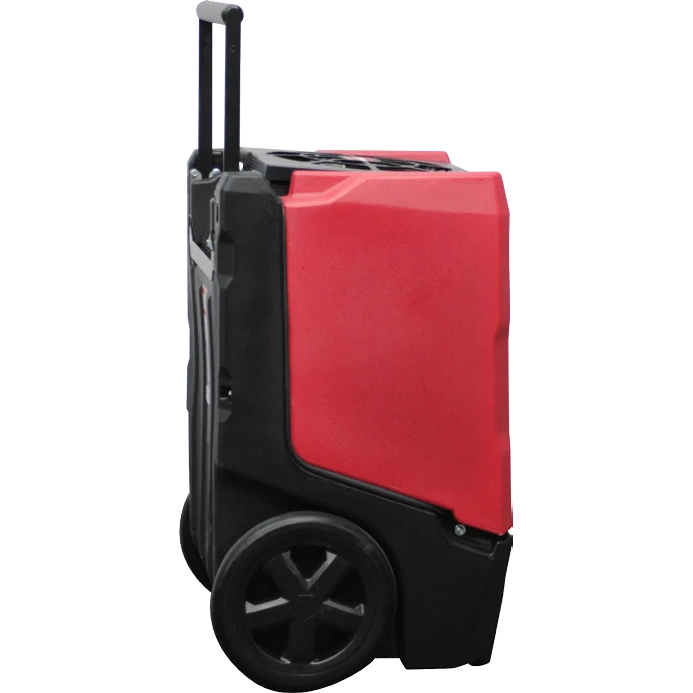

Phoenix R250 LGR Dehumidifier - Epoxy Coated Coils for Extended Coil Life and Corrosion Protection
The Phoenix R250 has been redesigned from the inside out to be a rugged, high-performance dehumidifier. Phoenix is leading the industry by introducing epoxy coated coils. This new feature will extend the life of the coils, provide protection in corrosive environments, and maintain the coil's heat transfer ability over the life of the coil.
We kept the outstanding handle used on the R200 along with patented ByPass™ Technology, excellent airflow, multiple ducting options, and a pleated media filter. And, with some amazing Phoenix Engineering, the R250 removes the most water of the Phoenix rotomolds at 130 pints per day (AHAM) while drawing only 7.4 amps of electricity, making it one of the smallest, lightest XL category LGRs on the market.
Key Features
- Epoxy Coated Coils for extended coil life
- Removes 130 pints per day at AHAM (80ºF/60% RH)
- Draws only 7.4 amps and removes 6.0 pints/kWh
- 310 CFM; faster drying and superior static pressure for ducting
- Hi-Temp Operation up to 110°F
- Heavy-Duty Condensate Pump
- Compact Design
- Patented ByPass™ Technology
- Recessed 12" Wheels
- Pleated 12" x 12" x 1" MERV-11 Media Air Filter
- Stacks easily reducing storage space

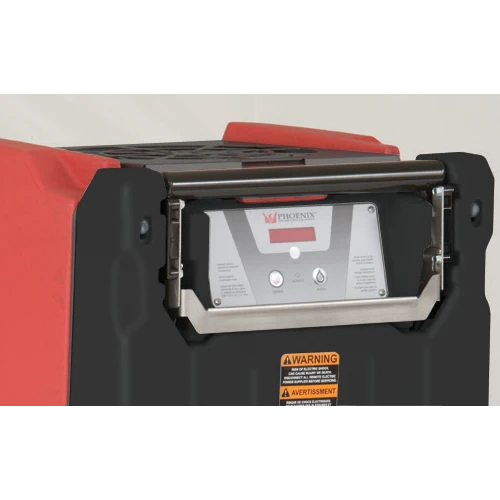

- Telescoping Handle that retracts for storage
- Convenient storage for power cord and drain hose
INTRODUCING EPOXY-COATED COILS
Phoenix is leading the industry by introducing epoxy-coated coils. This new feature will extend the life of the coils, provide protection in corrosive environments, and maintain the coil’s heat transferability. Also included is a rugged float switch designed specifically for restoration environments.
Top-Notch Phoenix Engineering
With some amazing Phoenix Engineering, the R250 removes the most water of the Phoenix roto molds at 130 pints per day (AHAM) while drawing only 7.4 amps of electricity.
Going Above and Beyond
By using Phoenix’s patented ByPass™ system, the R250 will continue to maximize water removal in temperatures beyond the competition’s acceptable operating range.
Specifications
Part Numbers
4045200-01 (Red)
4045200-02 (Blue)
Power
Current Draw: 7.4 Amps
Voltage: 120 VAC, Grounded
Water Removal
130 PPD at 80°F/60% RH (AHAM)
CFM
310 CFM
Filter
Pleated 12” x 12” x 1” Media MERV 11
Ducting Options
10″ Lay-Flat
Cord Length
25’ Power Cord
Unit Dimensions
Width: 20”
Height: 33.5”
Depth: 20”
Weight: 109 Lbs.
Operating Range
33°F to 110°F
Refrigerant Range
1 Lb., 3 Oz. R454B
