Phoenix Guardian R Air Scrubber: True HEPA Performance in a Portable Design
Setting the standard for portable air filtration, the Phoenix Guardian R Air Scrubber stands out as the most compact True HEPA device in its class. Built with an innovative energy-efficient rotomold construction, this versatile air scrubber seamlessly integrates rugged durability with featherweight portability and space-saving stackability—creating an unmatched solution for restoration professionals who demand both mobility and power.
Versatile enough to function as either an air scrubber or negative air machine, the Phoenix Guardian R HEPA System has undergone rigorous independent testing that validates True HEPA performance across the complete system—not just the filter alone—while consistently delivering over 500 CFM of pristine filtered airflow.
When space constraints and power limitations challenge your project, the Phoenix Guardian R HEPA Air Scrubber rises to meet those demands. Its minimal footprint paired with remarkably low energy consumption makes it the go-to solution for both residential and commercial environments where you refuse to sacrifice True HEPA reliability for the sake of portability.
Xactimate Code: WTRNAFAN
Key Features
- Up to 500 CFM airflow with only 2.4 amp power draw
- Compact, lightweight design - only 33 lbs
- Variable speed flow control for precise airflow management from 250 to 500 CFM

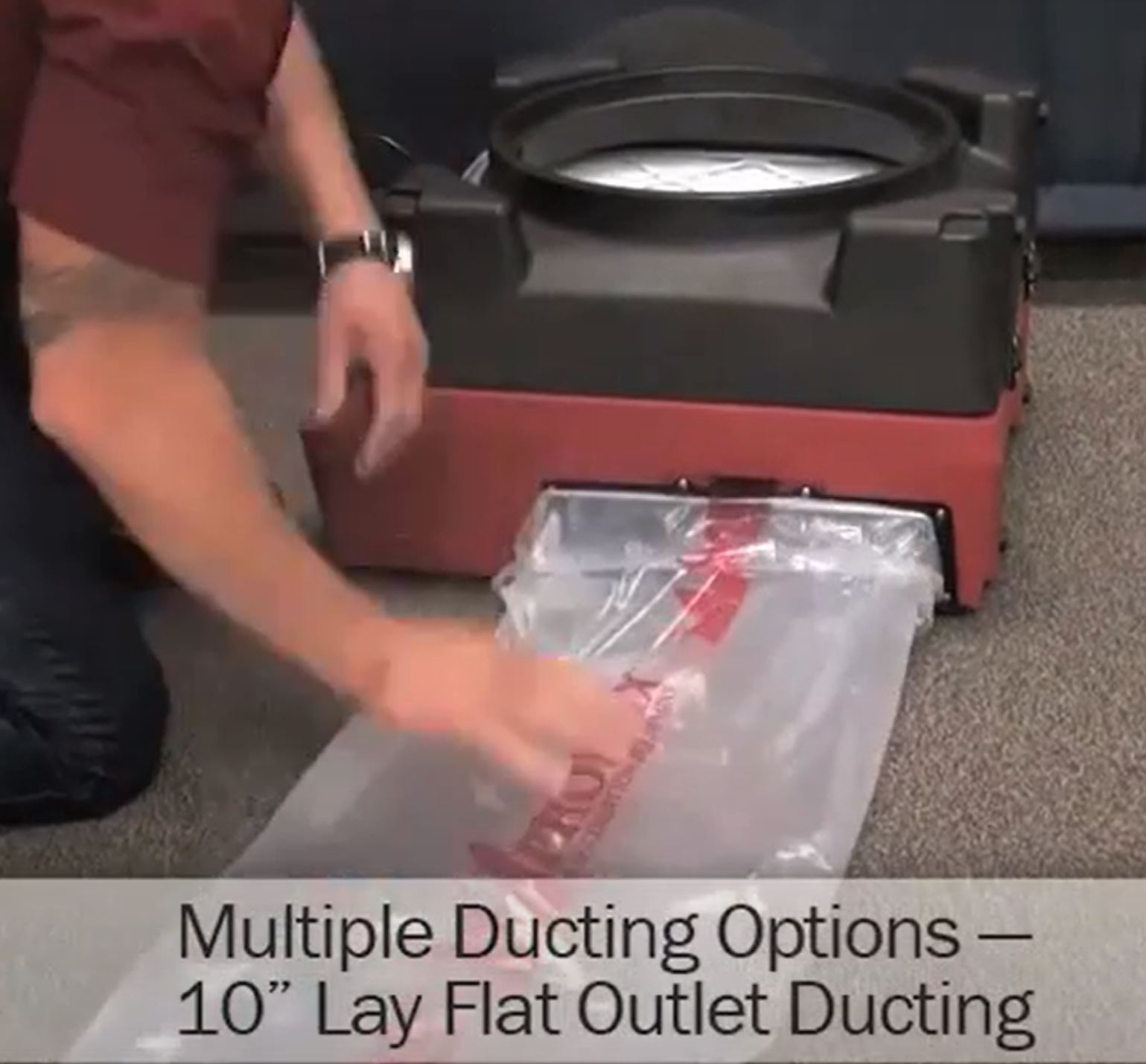

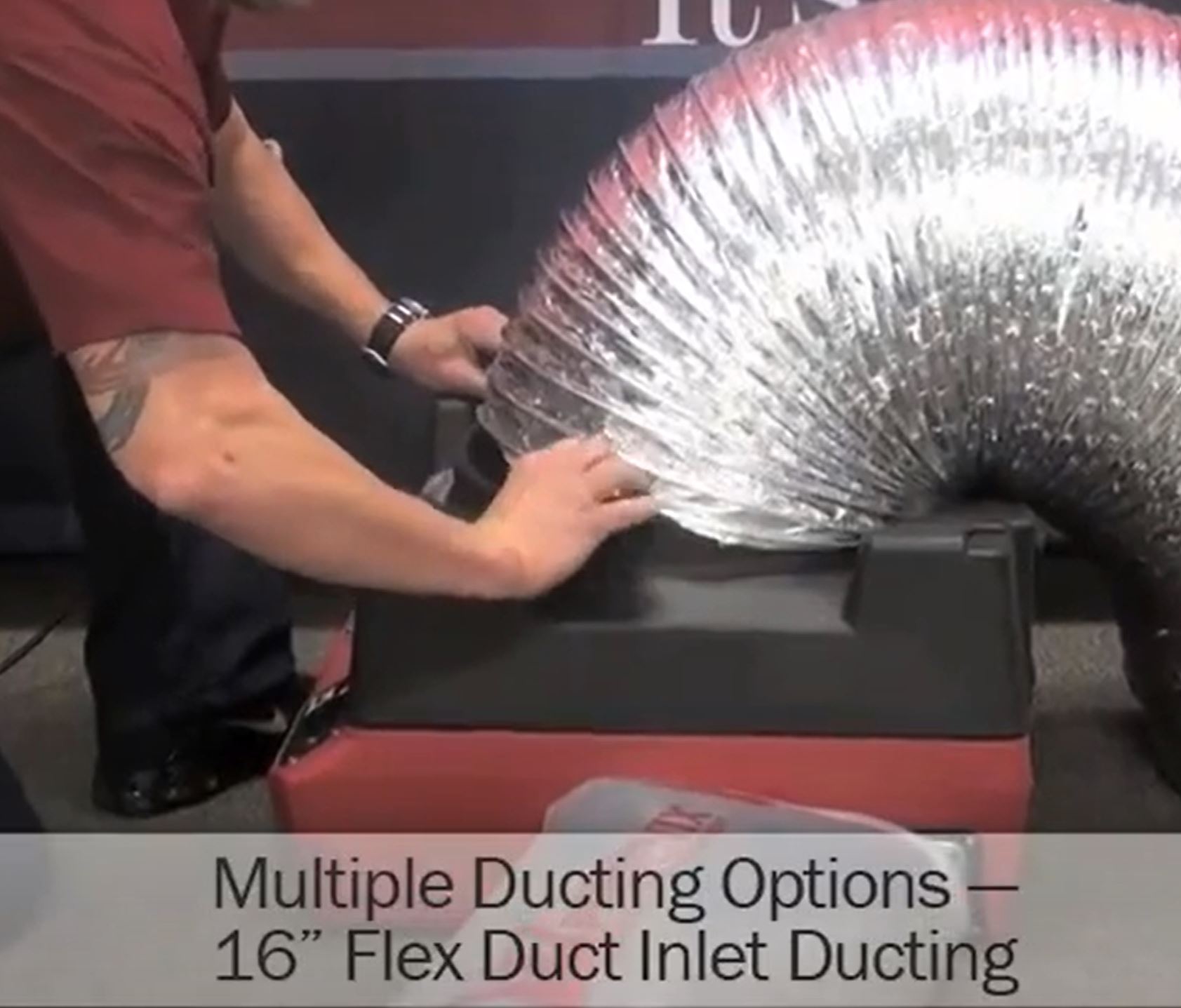

- Multiple ducting options for intake and exhaust flexibility
- Tough rotomold cabinet built for jobsite durability

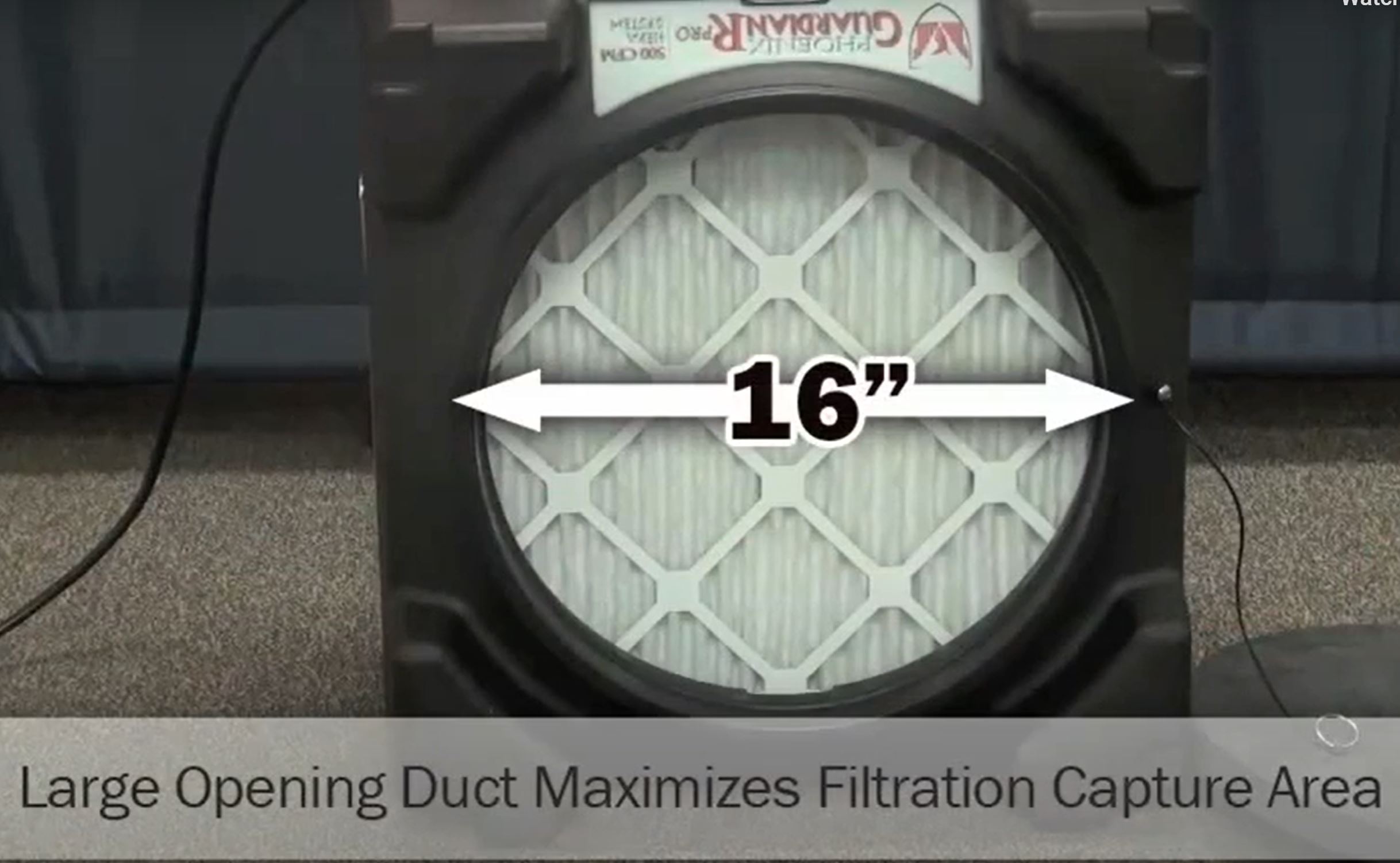

- Large horizontal inlet maximizes capture zone
- 30% more filter media for extended filter life
- True HEPA filtration with 2-stage filtration design

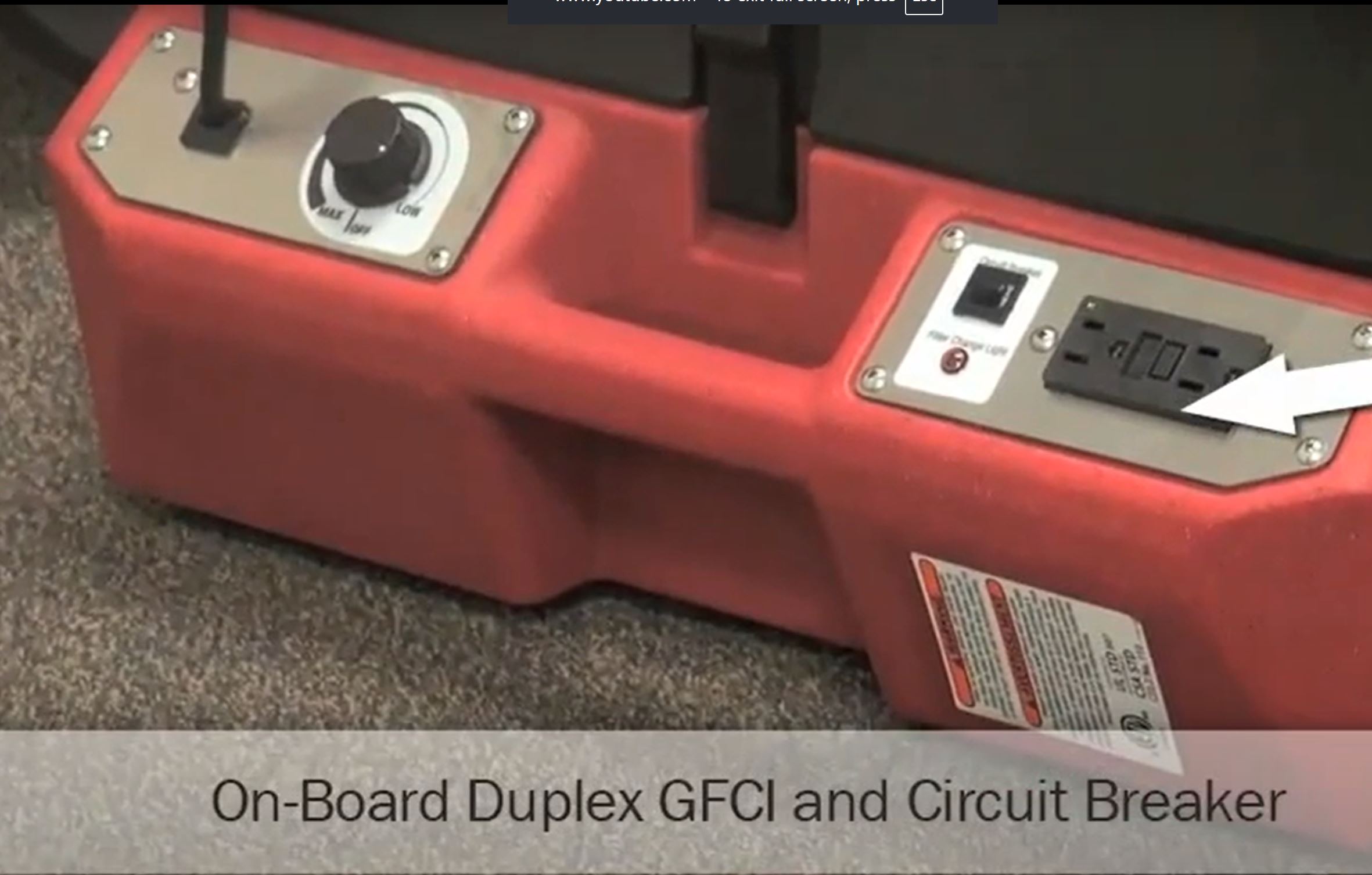

- On-board duplex GFCI and circuit breaker
- Stackable design - store up to 4 units high safely
- Change Filter Light - For easy maintenance

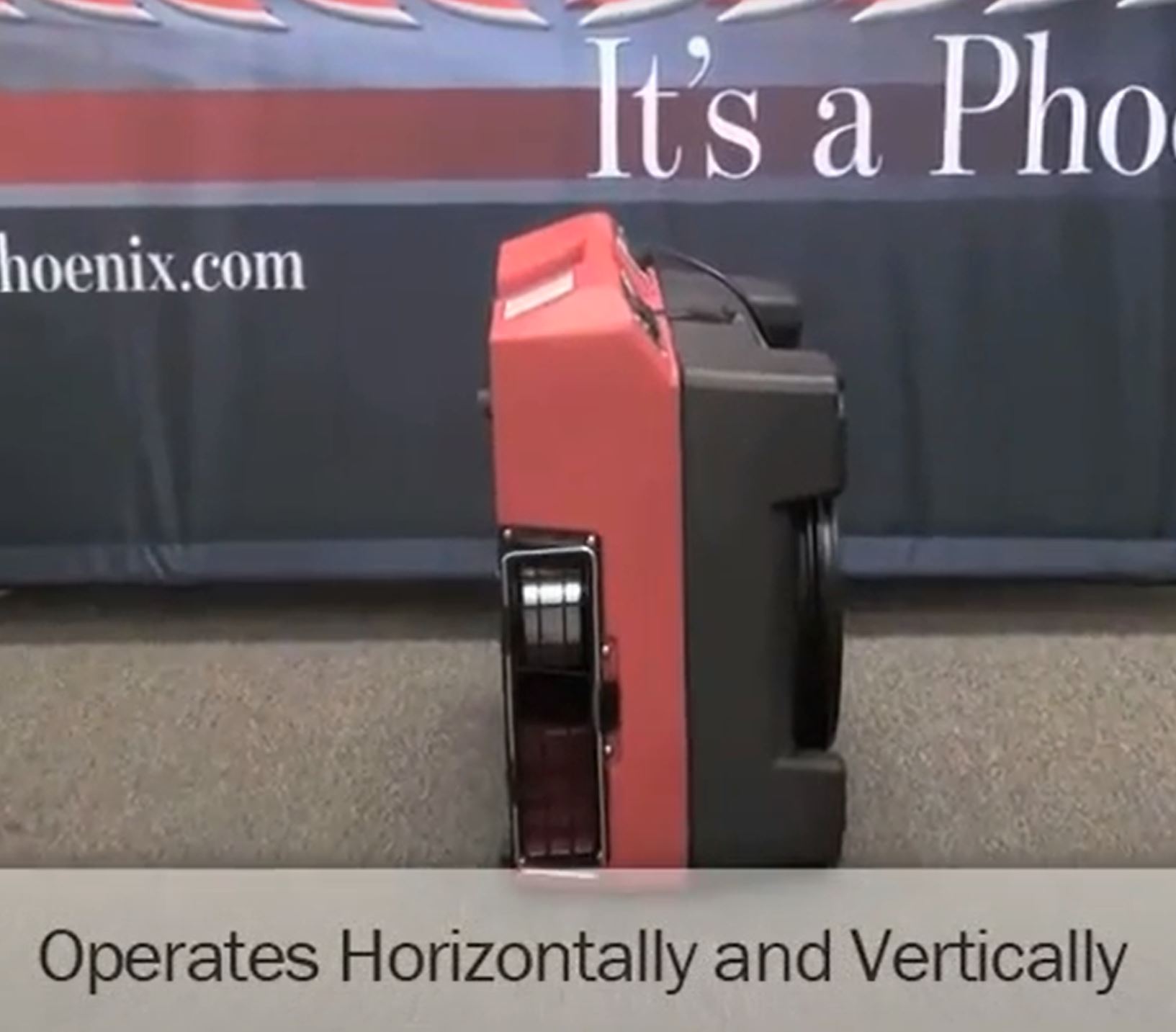

- Horizontal & Vertical operation - For added versatility
-
Optional carbon/potassium permanganate blend filter - to adsorb
a wide range of odors and gases. - Detachable outlet duct ring - Making ducting connections easy

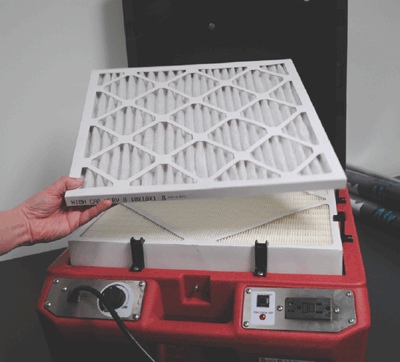

Filtration System
- 1st Stage: 1" Pleated Media Filter (18" x 18")
- 2nd Stage: 2.5" Pleated HEPA Filter (18" x 18") - 99.97% Efficient
- Optional: 1" Carbon and Potassium Permanganate Filter
Specifications
Airflow: 500 CFM
Power Draw: 2.4 Amps
Voltage: 110-120 VAC, Grounded
Coverage: Single unit provides 4 air changes per hour on 7,500 cubic feet (30' x 30' x 8' room)
GFCI: 15A UL rated GFCI Duplex Receptacle
25' Power Cord

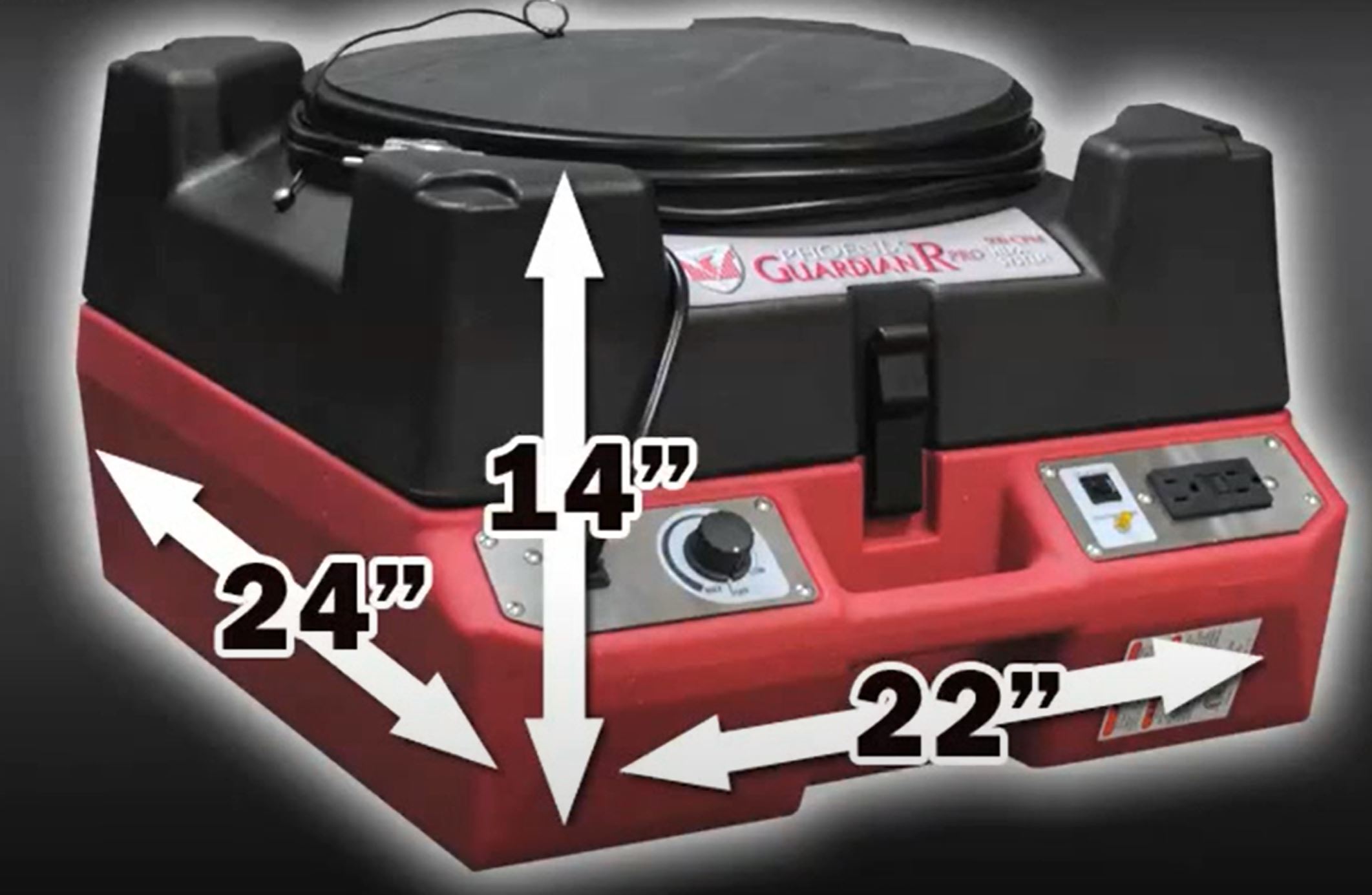

Dimensions:
- Width: 22"
- Height: 14"
- Depth: 24"
- Weight: 33 lbs
Shipping Dimensions:
- Width: 22.25"
- Height: 14.25"
- Depth: 24.75"
- Shipping Weight: 36 lbs
Guardian R Units:

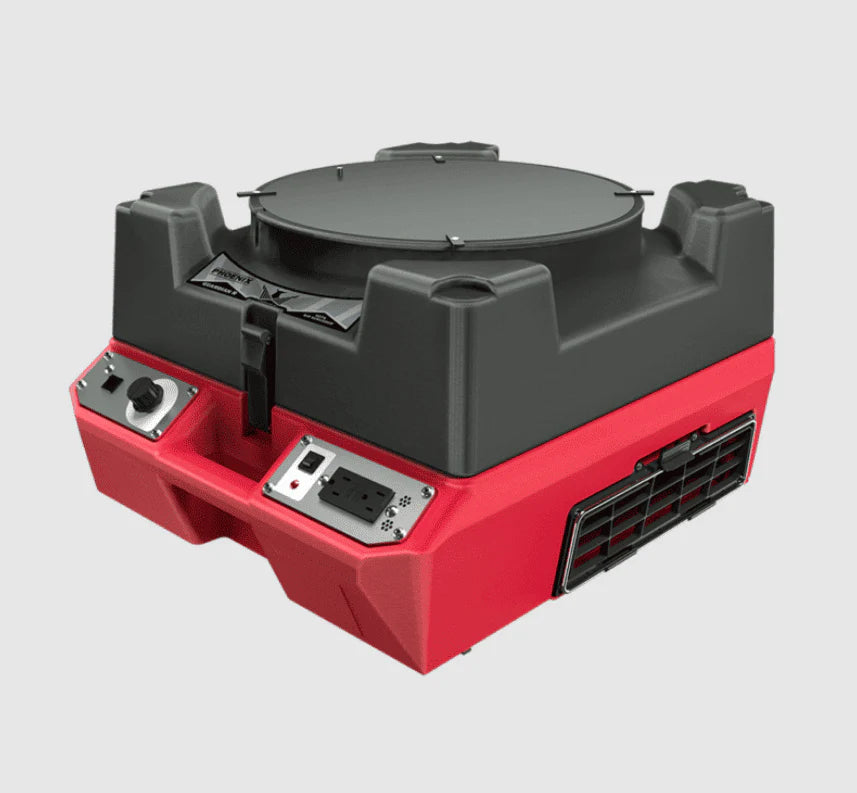

- 4031350 - Phoenix Guardian R (Red)

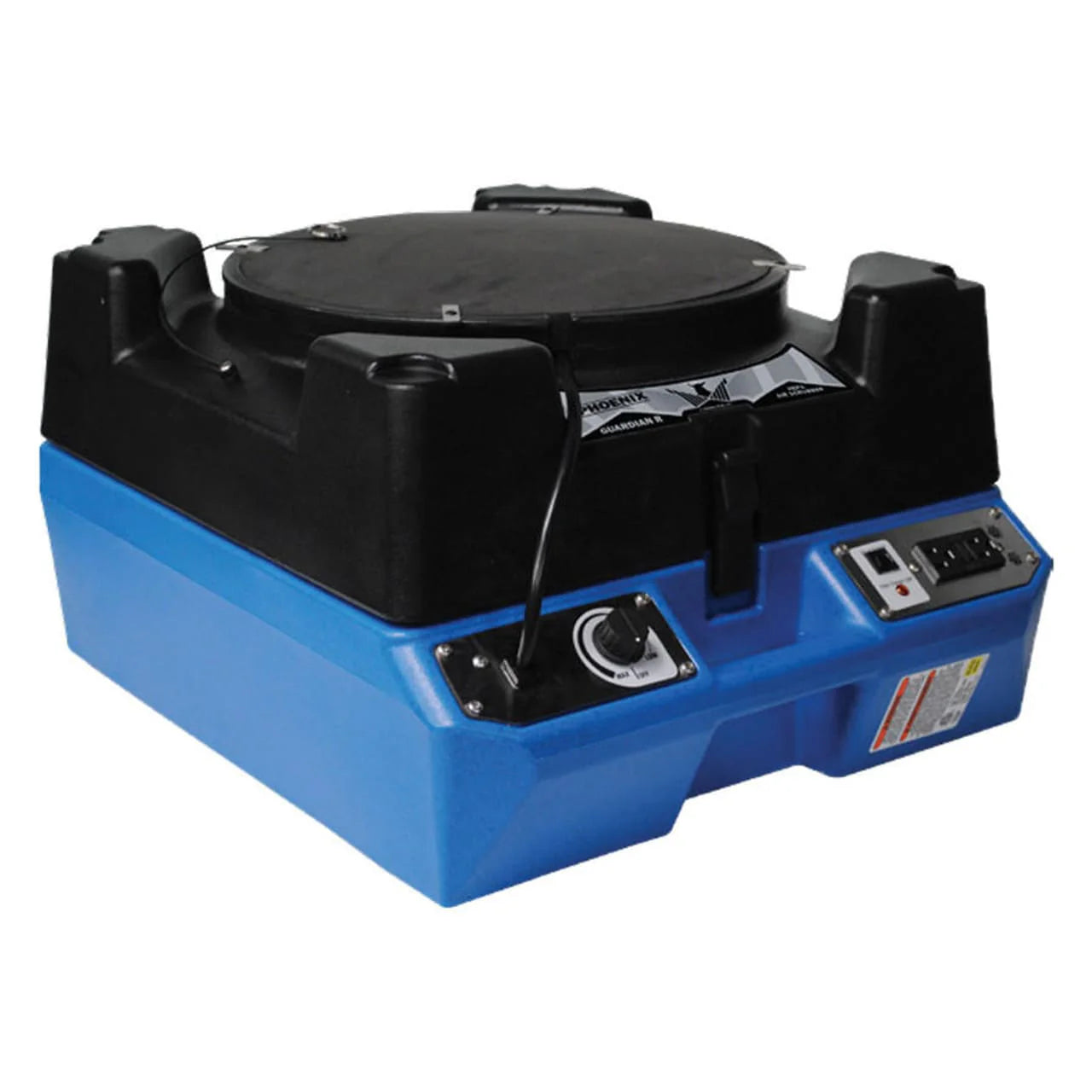

- 4031460 - Phoenix Guardian R (Blue)
Filters:
- 4031877 - Air Filter, Pleated, 1" x 18" x 18"
- 4031864 - Air Filter, HEPA, 2.5" x 18" x 18" (99.97% Efficient)
- 4031878 - Air Filter, Disposable Carbon/Potassium Permanganate
Ducting:
- 4028357 - Duct, Flex, 16" x 25'
- 4024935 - Duct, Lay Flat, 10" x 250'
Product Support
Video
Warranty
Year 1: 100% coverage of parts and labor
