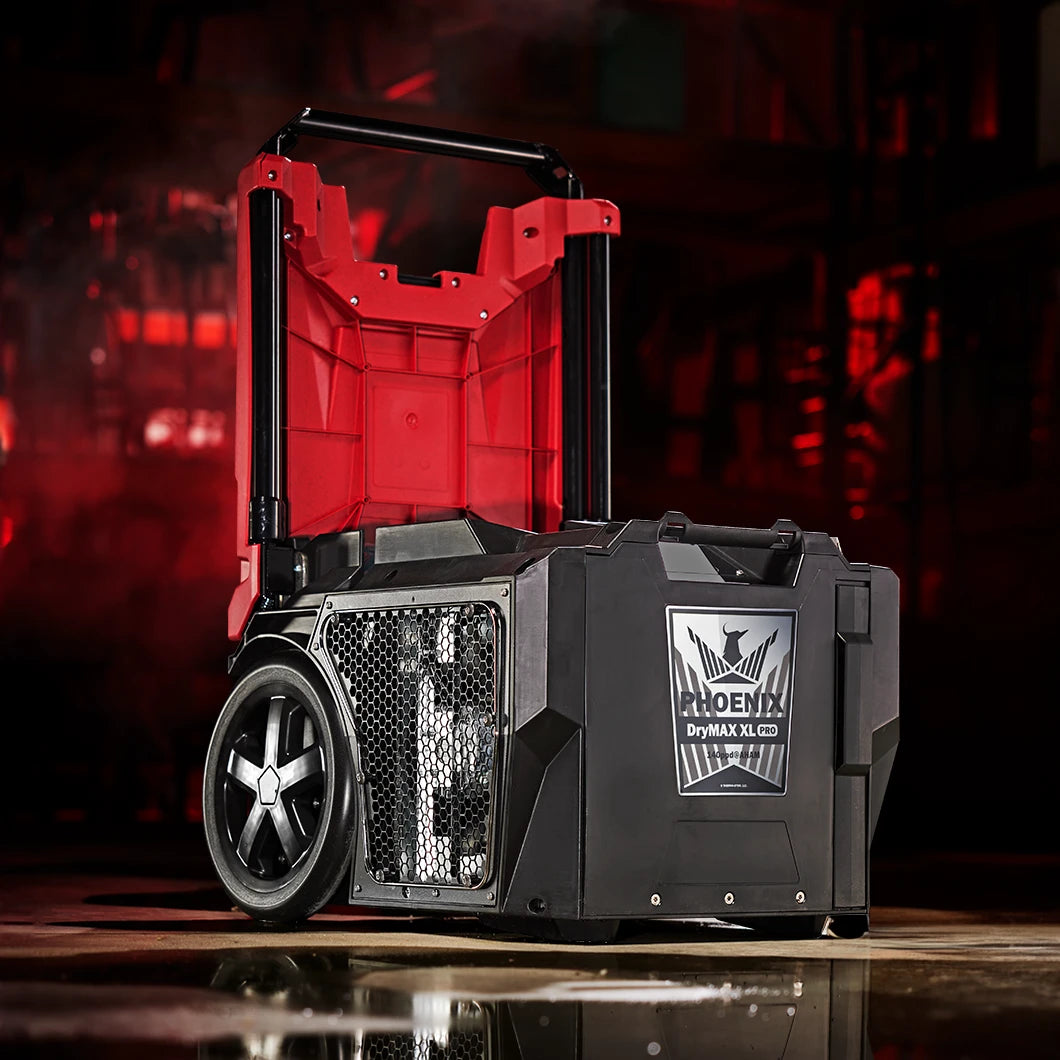

Phoenix DryMAX XL Pro: Maximum Capacity with Unmatched Portability
The Phoenix DryMAX XL Pro offers an innovative design that eliminates the transportation challenges commonly associated with horizontal dehumidifiers when navigating stairs. Featuring a distinctive dual-position handle system, this unit provides effortless mobility across level surfaces and vertical staircases, delivering superior portability compared to traditional upright dehumidifiers.
The system integrates seamlessly with AirMAX, AirMAX BLE, and Focus II air movers, enabling consolidated and secure transportation of your complete equipment suite. Built-in USB power functionality supports remote monitoring capabilities, allowing continuous oversight from any location while removing the requirement for separate asset tracking beacons.
Transport & Mobility:

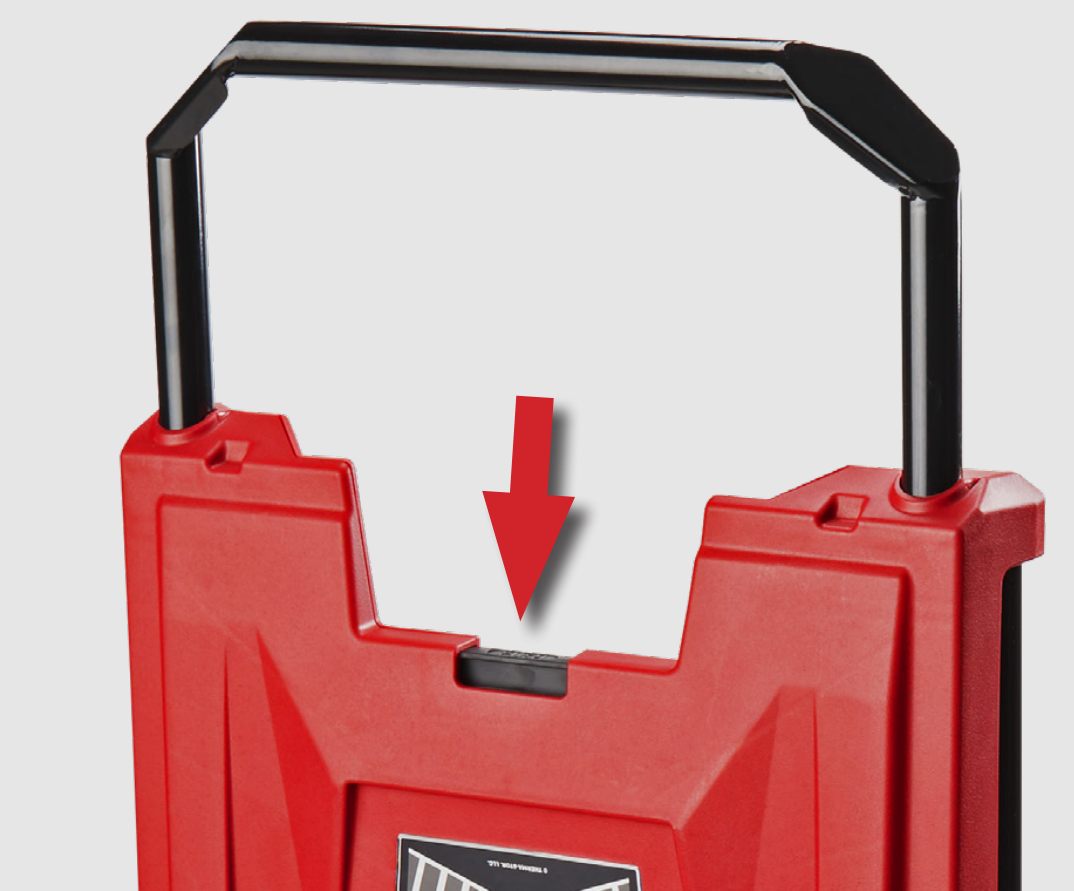

- Two-position push-button extendable handle
- 12" wheels for easy transport on stairs

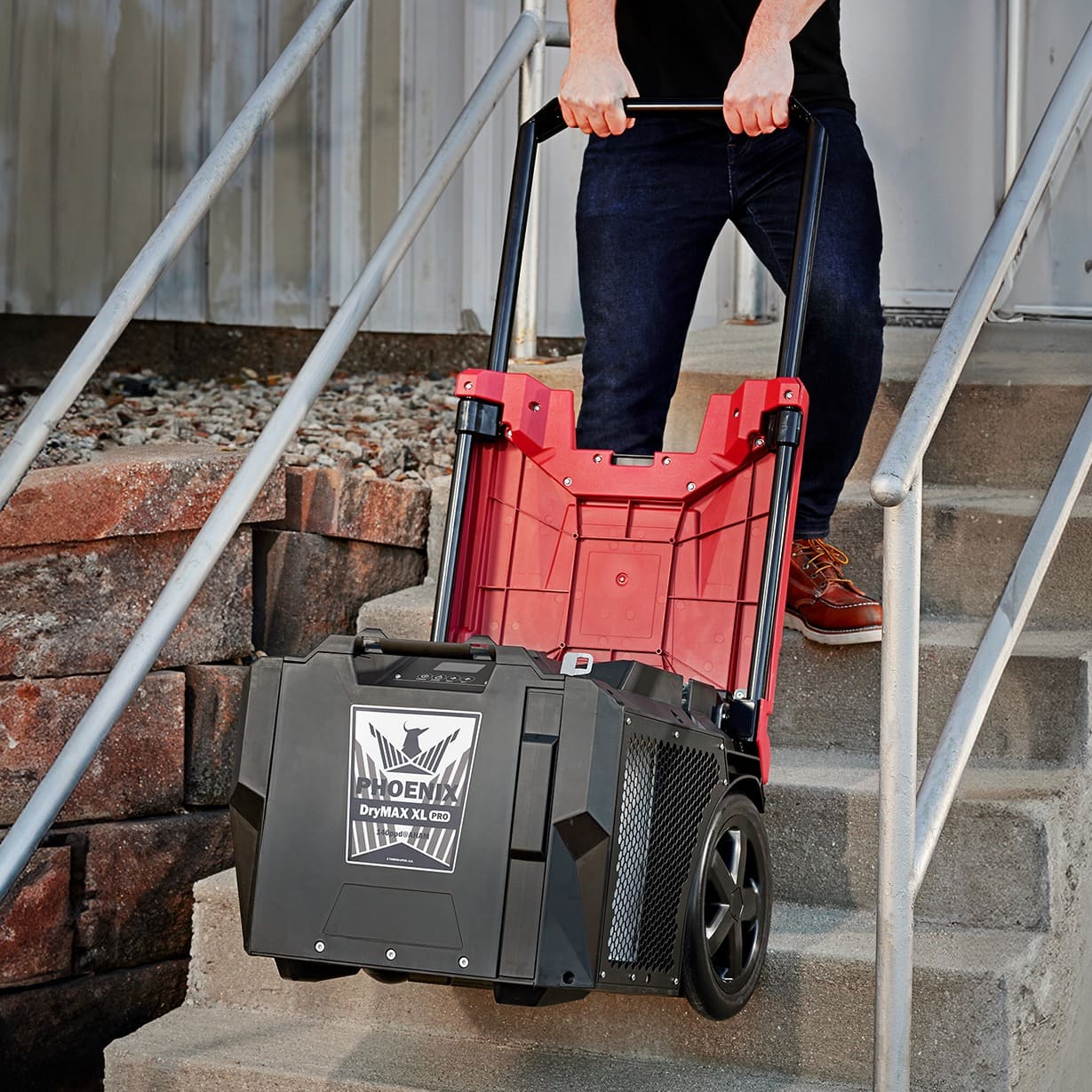

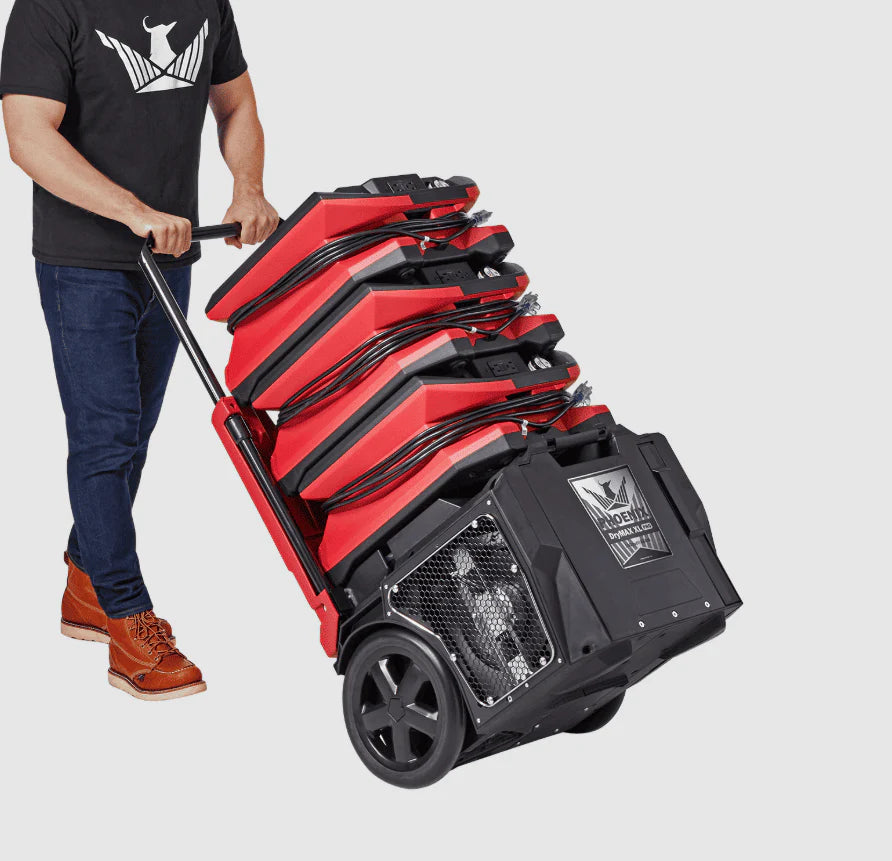

- Extended handle can act as a dolly and lock in AirMAX, AirMAX BLE, and Focus II air movers.
Performance Specifications:
- 135 Pints/Day capacity at 80°F/60% RH

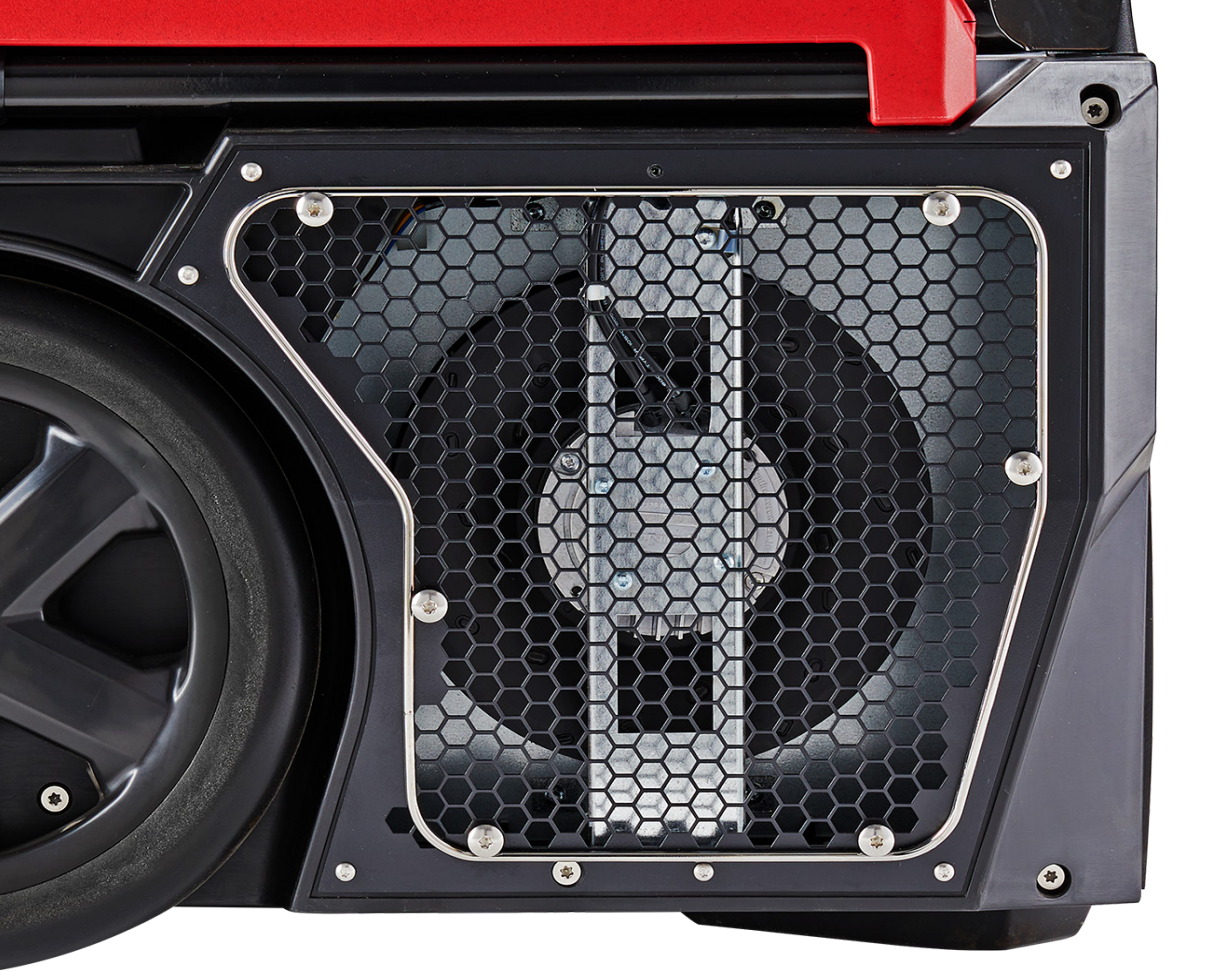

- 300 CFM airflow
- Operating range: 33°F - 105°F
- 6.7 Amps current draw
Design & Storage:
- Superior stacking capability for space savings (up to 3 units)
- Nesting capability for space savings

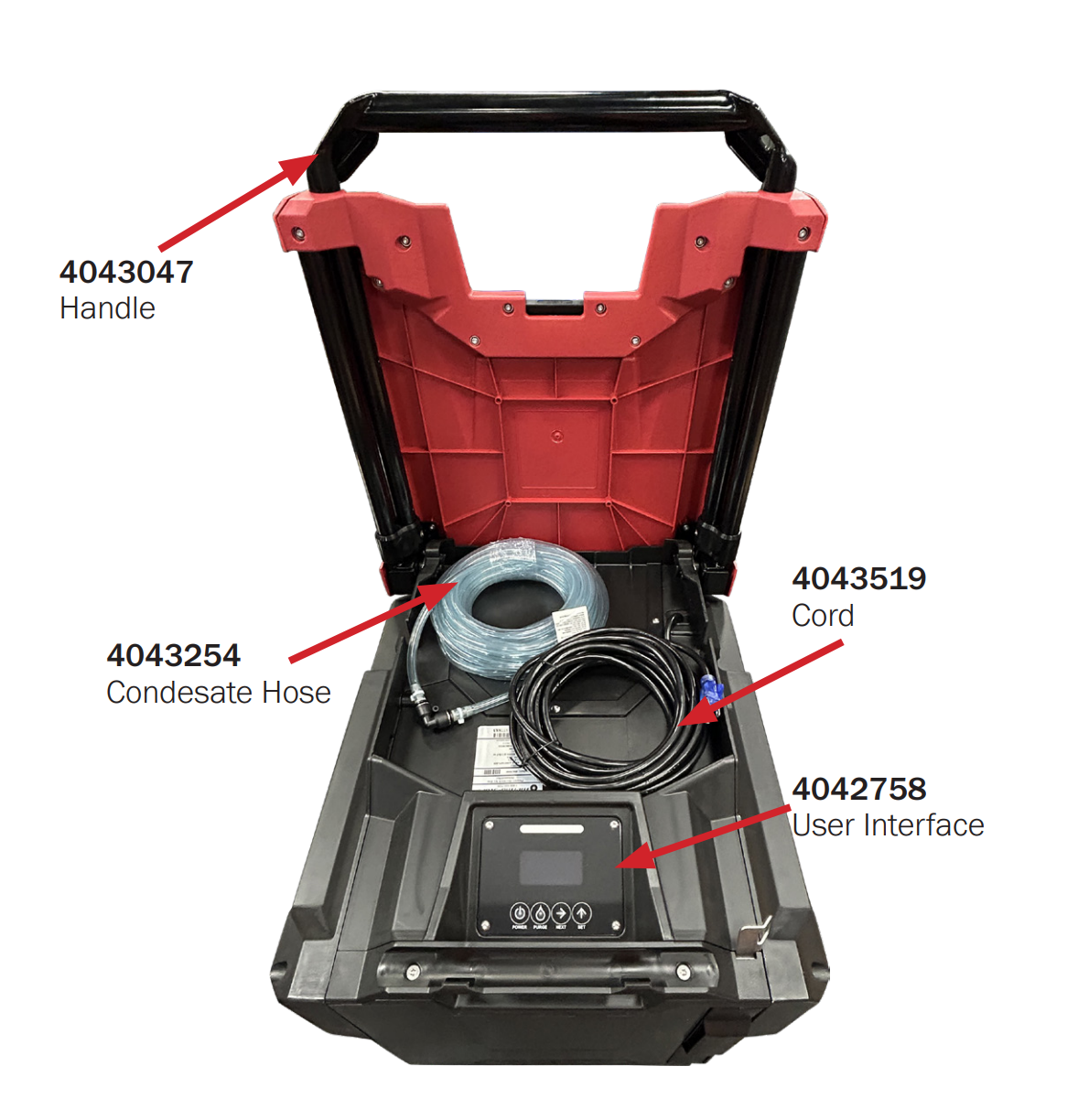

- Lockable cover to secure DryPHONE
Connectivity & Monitoring:

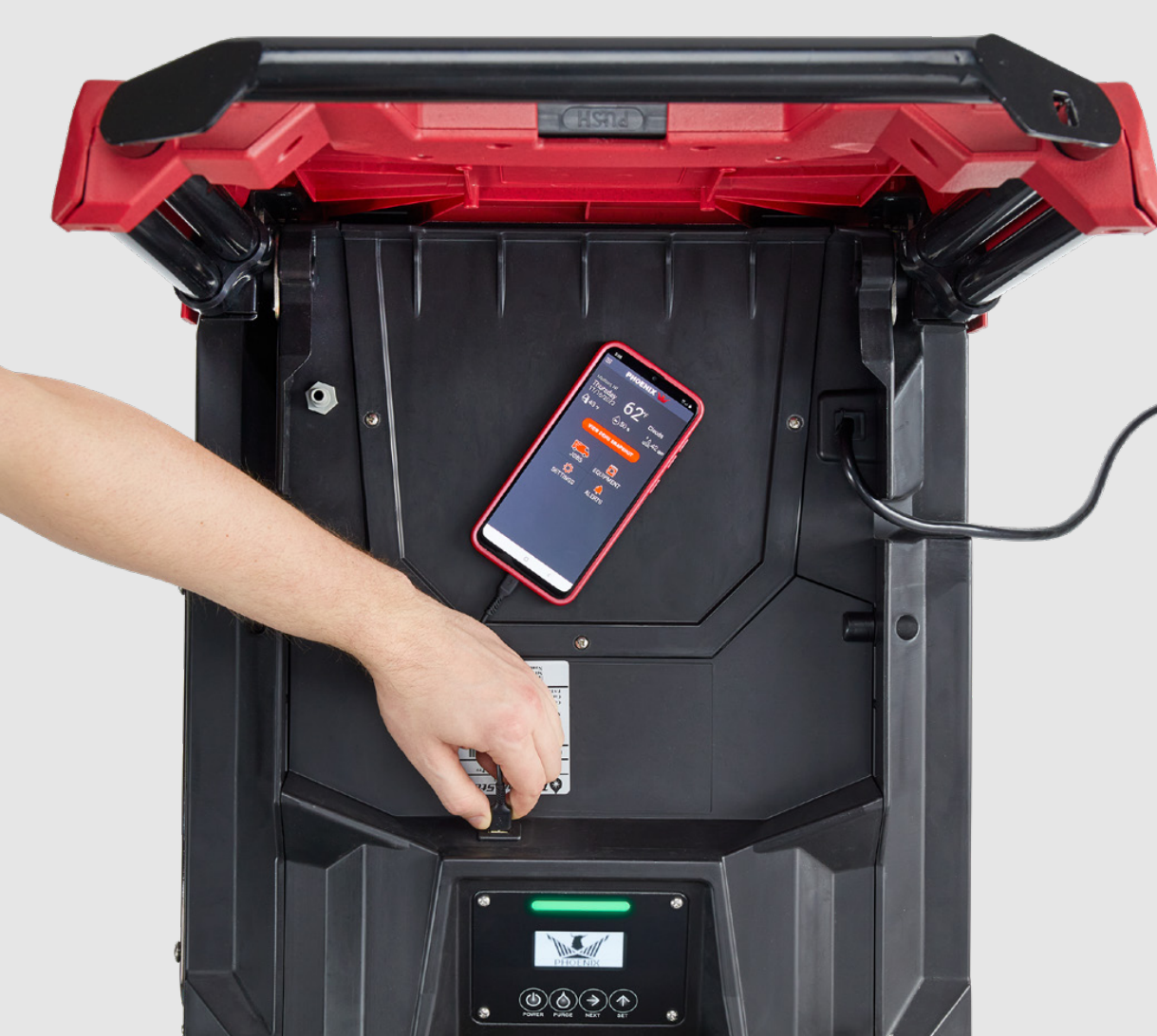

- Onboard USB to power DryPHONE for remote monitoring
- Built-in Bluetooth with data logging of temperature and relative humidity (inlet and outlet)
- DryLINK enabled - add two AA batteries for built-in connection to DryLINK Asset Manager (no tag needed)
Physical Specifications:
- Dimensions: 20"W x 18"H x 25.4"D
- Weight: 85 lbs
- 25 ft. power cord length
- 33 ft. hose length
Additional Features:

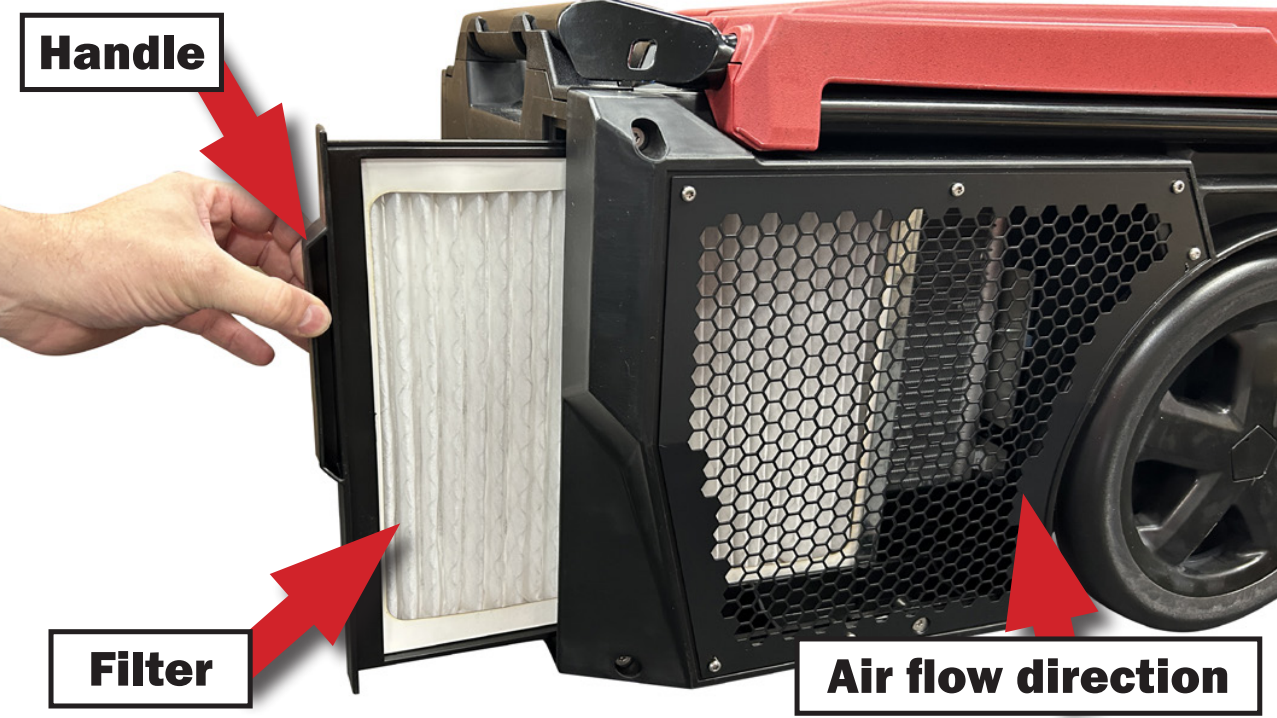

- MERV-10 filter (55% efficiency up to 1.0 microns, 12" x 14" x 1")
- Compatible with 14" Round Lay-Flat Duct

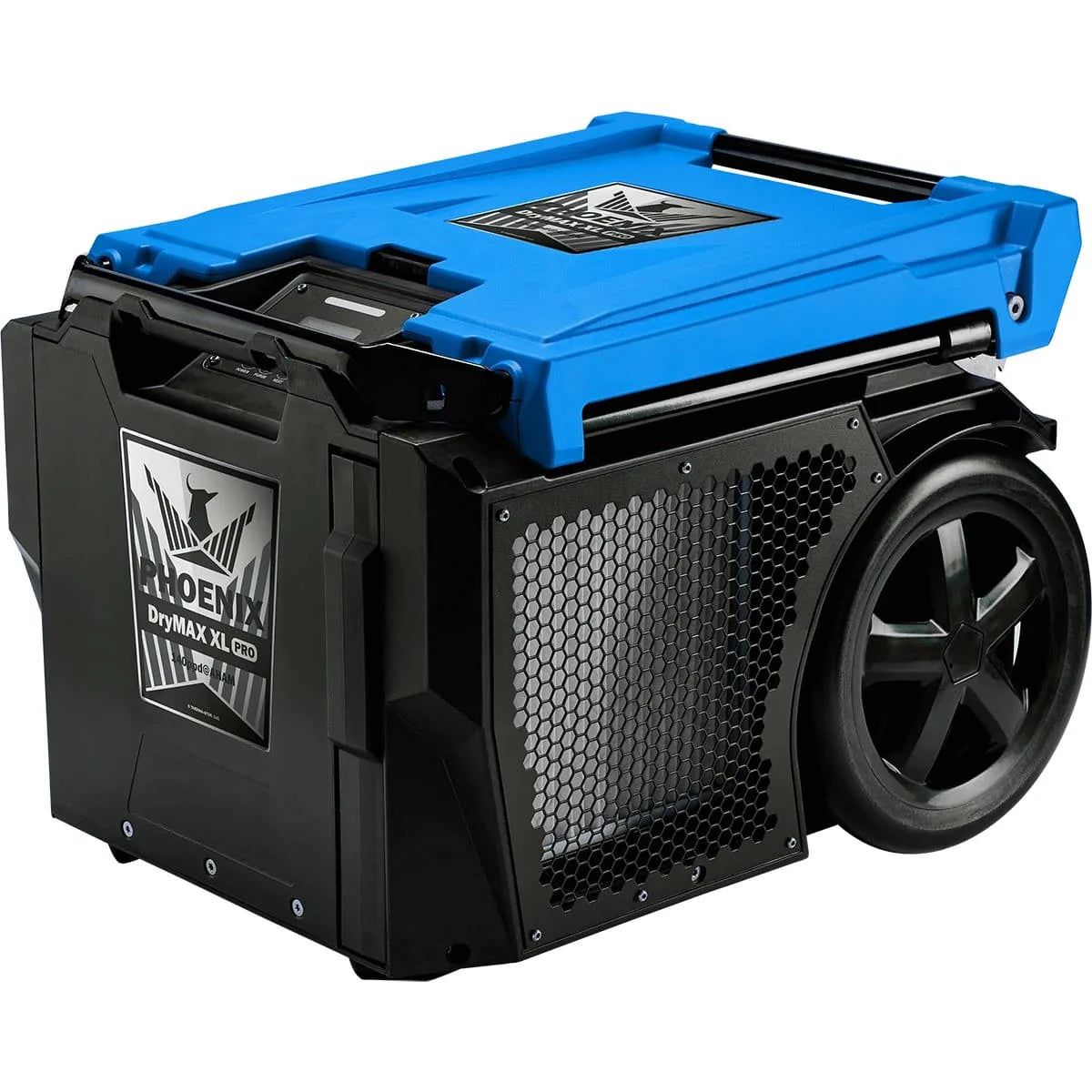

- Available in Red (4045100-01) or Blue (4045100-02)
Specifications
- Part Number: 4045100-01 (Red)
- Part Number: 4045100-02 (Blue)
- Capacity: 135 Pints/Day @ 80F/60%RH
- Current: 6.7 Amps
- Airflow: 300 CFM
- Cord Length: 25 ft.
- Hose Length: 33 ft.
- Operating Range: 33°F - 105°F
- Size: 20”W x 18”H x 25.4”D, 85 lbs.
- Xactimate Category: XL
- Xactimate Code: WTRDHM>>
- Dimensions: 20"W x 18"H x 25.4"D
- Weight: 85 lbs
- 25 ft. power cord length
- 33 ft. hose length
Video
Product Support
Warranty
100% parts and labor warranty for first year, 100% sealed refrigeration system warranty for years 2-5
