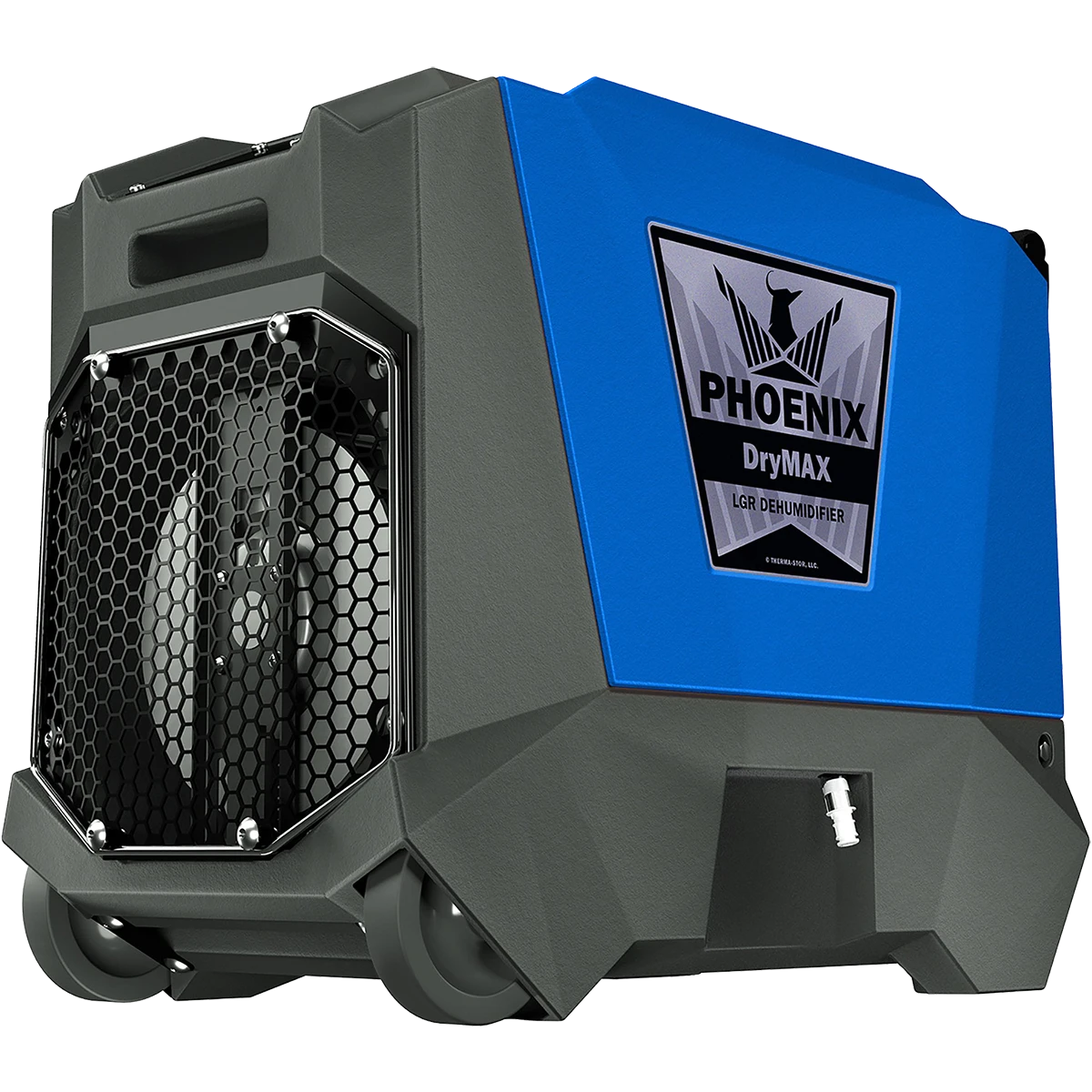

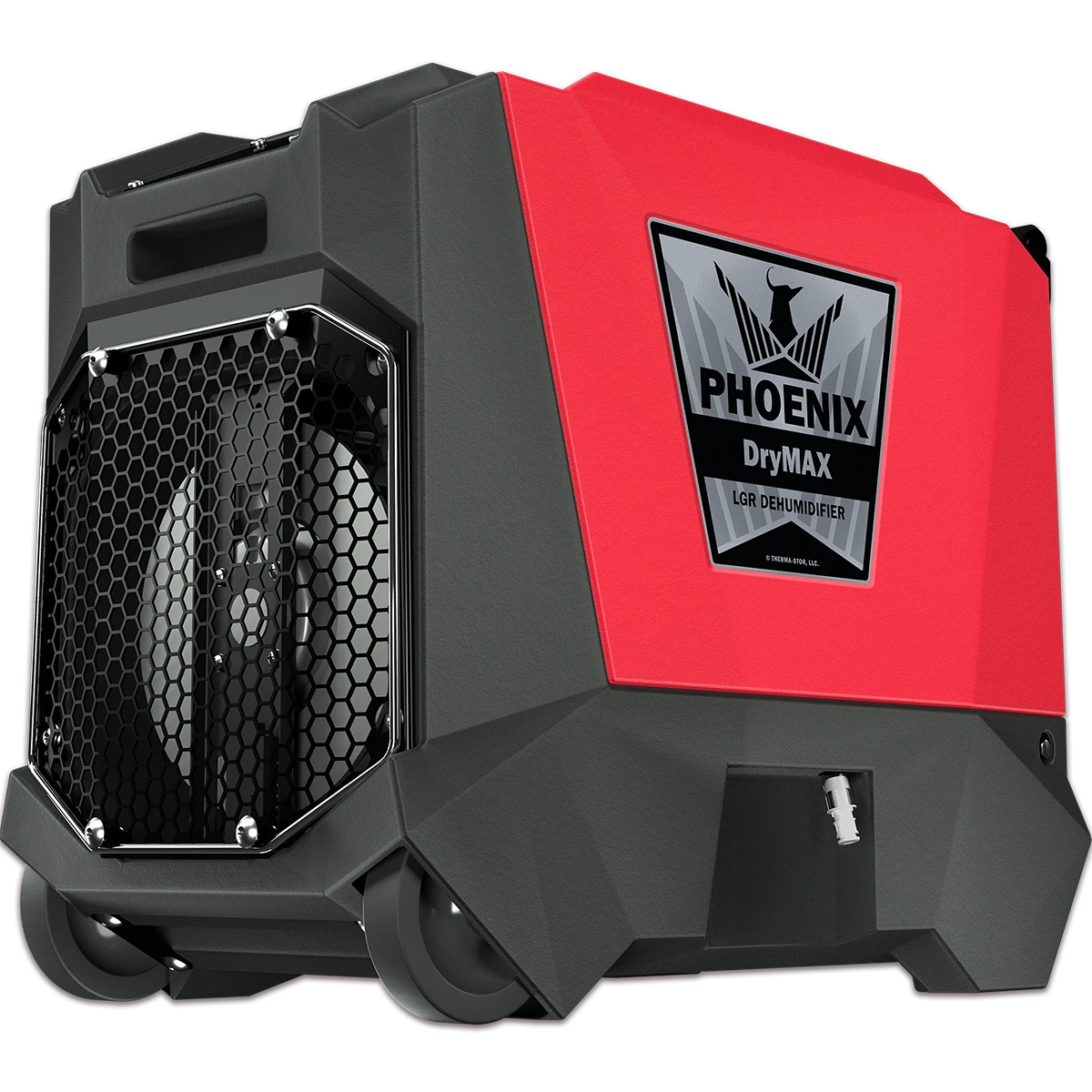

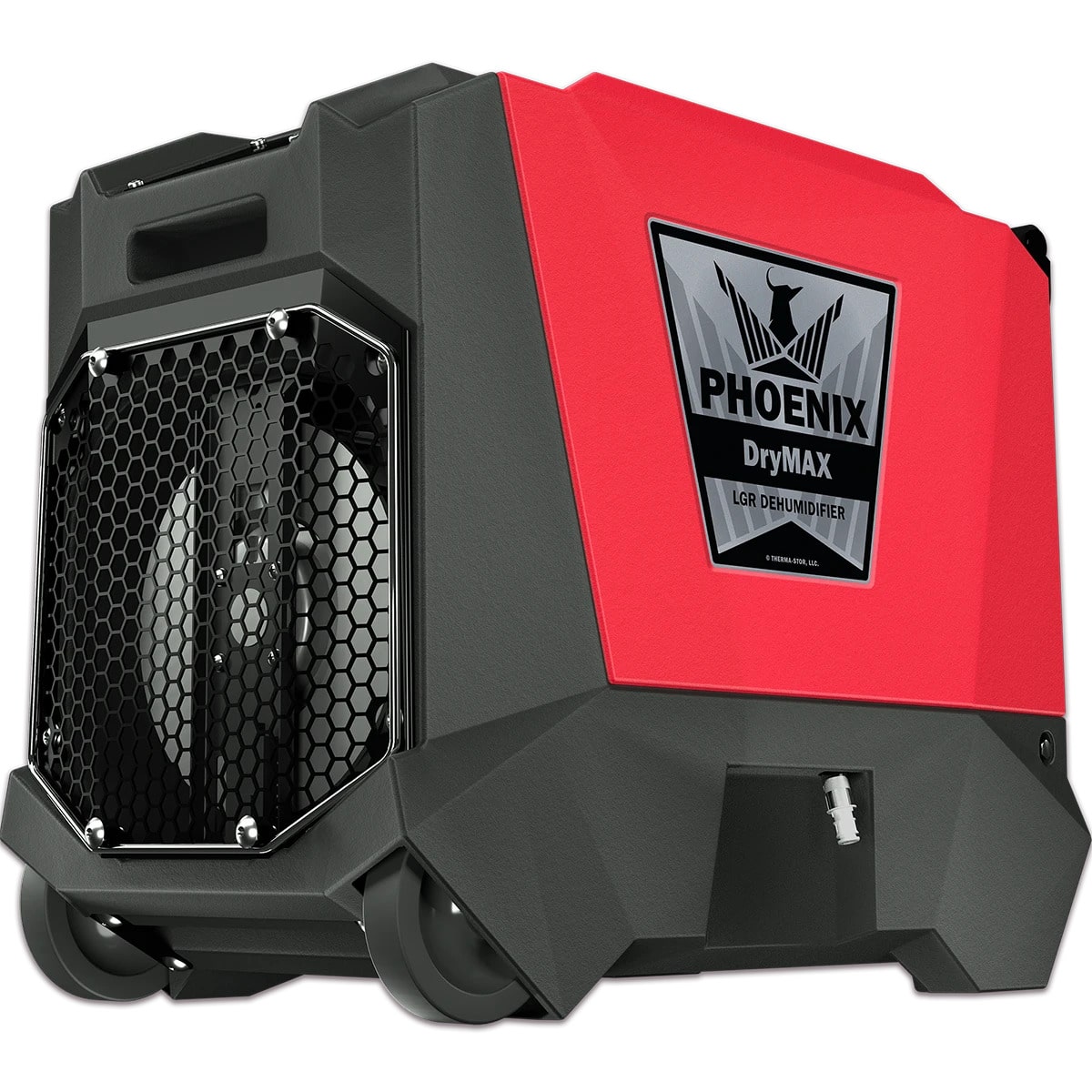

DryMAX BLE: Serious Dehumidification Power, Now Bluetooth-Connected
Built for restoration professionals who demand reliability, the Phoenix DryMAX BLE LGR Dehumidifier delivers powerful dehumidification in a compact, durable package. Engineered for quality and longevity, this unit features cutting-edge technology including our proprietary condensate pump system.
Key Features of the Phoenix DryMAX BLE LGR Dehumidifier
- Capacity: 80 PPD @ AHAM
- Airflow: 170 CFM
- Power: 5.5 Amps
- Lightweight at 63lbs
- Built-in Bluetooth technology with data logging and instant readings
- Free Phoenix DryLINK mobile app (compatible with iOS and Android)
- Compact, stackable for maximum portability

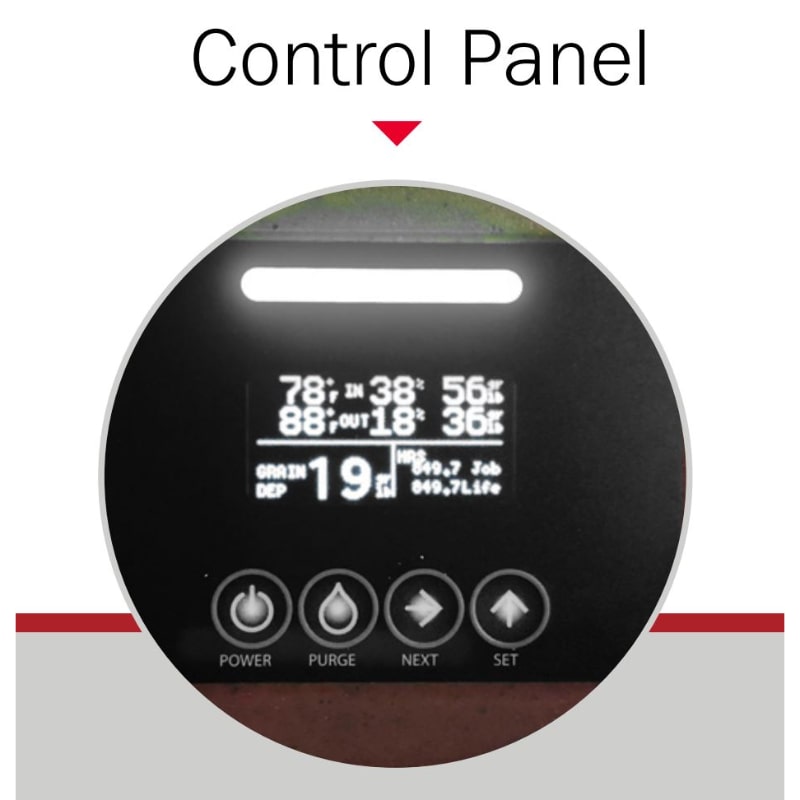

- Industry leading graphical control panel with simple-to-use interface
- All essential information displayed on control screen

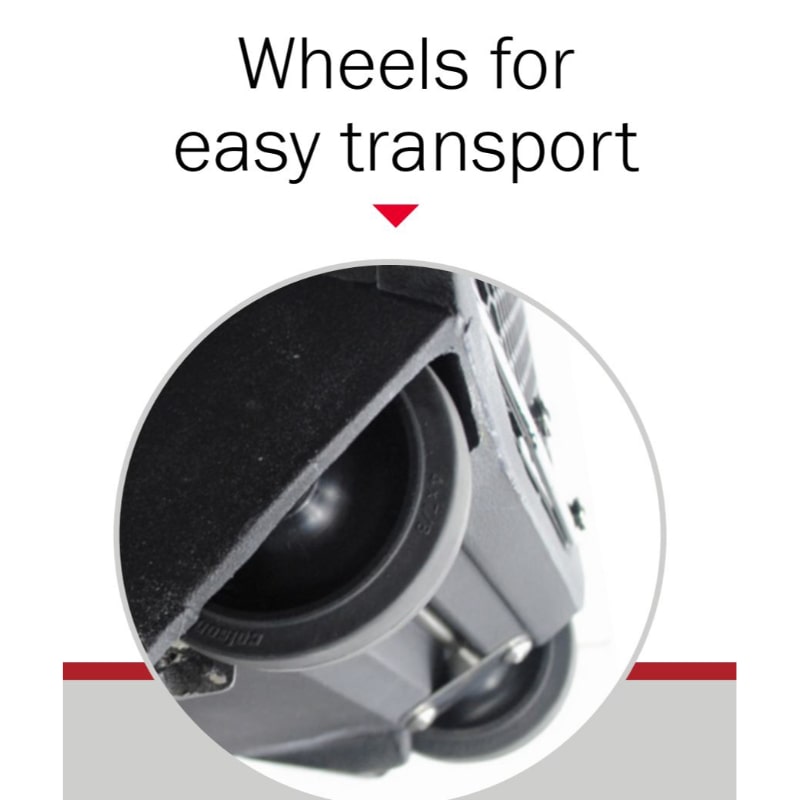

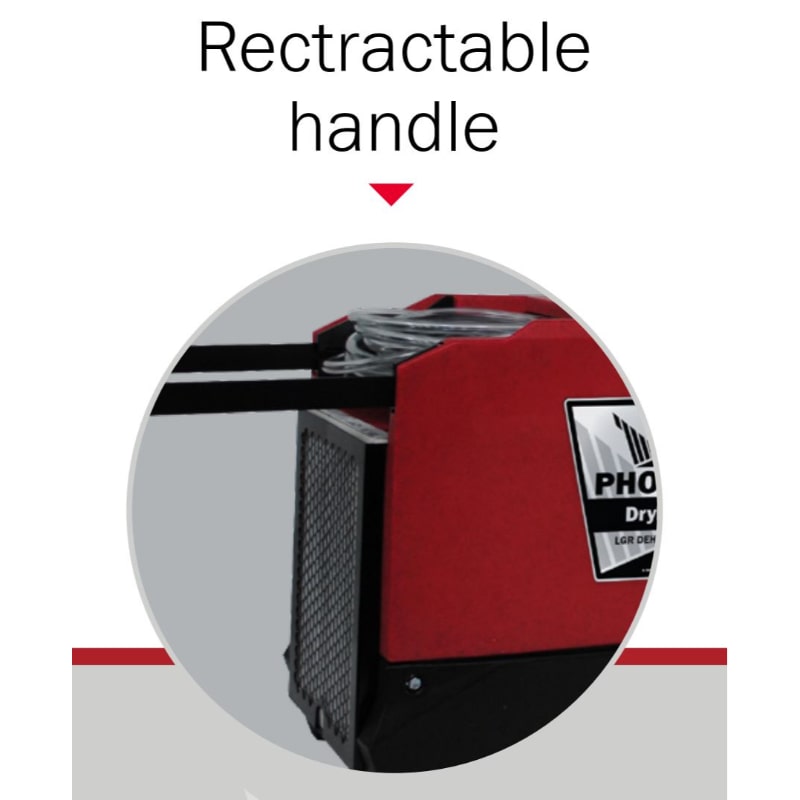

- Slide-out handle and integrated wheels
- On-board storage for 25' power cord and 33' condensate hose
- Ductable (duct ring included)
DryLINK® App Integration
- Take daily readings in seconds
- Data automatically logged every 15 minutes
- Access previous readings remotely when unable to visit jobsite
- Prevents readings during defrost mode (uses nearest good reading)
- Auto-populates equipment type, manufacturer, model, and serial number when claimed
- Calibrate inlet and outlet sensors directly in app
Inventory Management
- GPS location tracking with map display
- Last known location shown on map
- No monthly fees for location tracking
Alert System
- Filter replacement notifications
- System protection warnings (high incoming temperature or refrigeration issues)
- Reservoir full alerts (pump issues, kinked hose detection)
Advanced Alerts (Requires DryPHONE)
- Dehumidifier power status (on/off notifications)
- Connection status monitoring
- High/Low chamber temperature and relative humidity warnings
- GPP (Grains Per Pound) decrease monitoring with customizable time and GPP thresholds
- Configurable user notifications
Filters
-
MERV-10 Filter (55% Efficiency)
- Part Number: 4037046
- Air filter, pleated, 55% efficiency up to 1.0 microns
- Size: 9" x 12" x 1"
Ducting
-
10" Round Lay-Flat Duct Compatible
- Part Number: 4024935
- 4 mil poly tubing duct, 10" x 250' roll
-
10" Duct Ring (included)
- Part Number: 4037048
- Exhaust duct ring for 10" lay-flat
- Note: Duct ring included with unit, lay-flat sold separately
Specifications
Part Numbers
4045300-01 (Red)
4045300-02 (Blue)
Power
Current Draw: 5.5 Amps
Voltage: 120 VAC, Grounded
Water Removal
80 PPD at 80°/60% RH (AHAM)
CFM
170 CFM Without External Ducting
Filter
Pleated 9″ x 12″ x 1″ Media MERV 10
Ducting Options
10″ Round Lay-Flat
Cord Length
25 ft. Power Cord
Unit Dimensions
Width: 12″
Height: 17.5″
Depth: 21″
Weight: 63 Lbs.
Shipping Dimensions
Width: 16″
Height: 19″
Depth: 25″
Weight: 65 Lbs.
Operating Range
33°F to 110°F
Refrigerant Charge
Warranty
- First Year: 100% parts and labor coverage
- Years 2-5: 100% sealed refrigeration system coverage
- Condensate Pump: 3-year warranty on new style pump
