0/50 [&:not(:first-child)]:-x-[hsla(var(--border-100) / 0.5)] border-t-[0.5px] px-2 [&:not(:first-child)]:border-l-[0.5px]">Width
24.25"
27.5"
Height
40"
45.5"
Depth
21.375"
22"
Weight
105 lbs
130 lbs
Filtration System
| Filter Type | Size | MERV Rating |
|---|---|---|
| Process Air Filter | 16" x 20" x 2" | MERV-11 (Standard) |
| Reactivation Air Filter | 12" x 12" x 1" | MERV-7 |

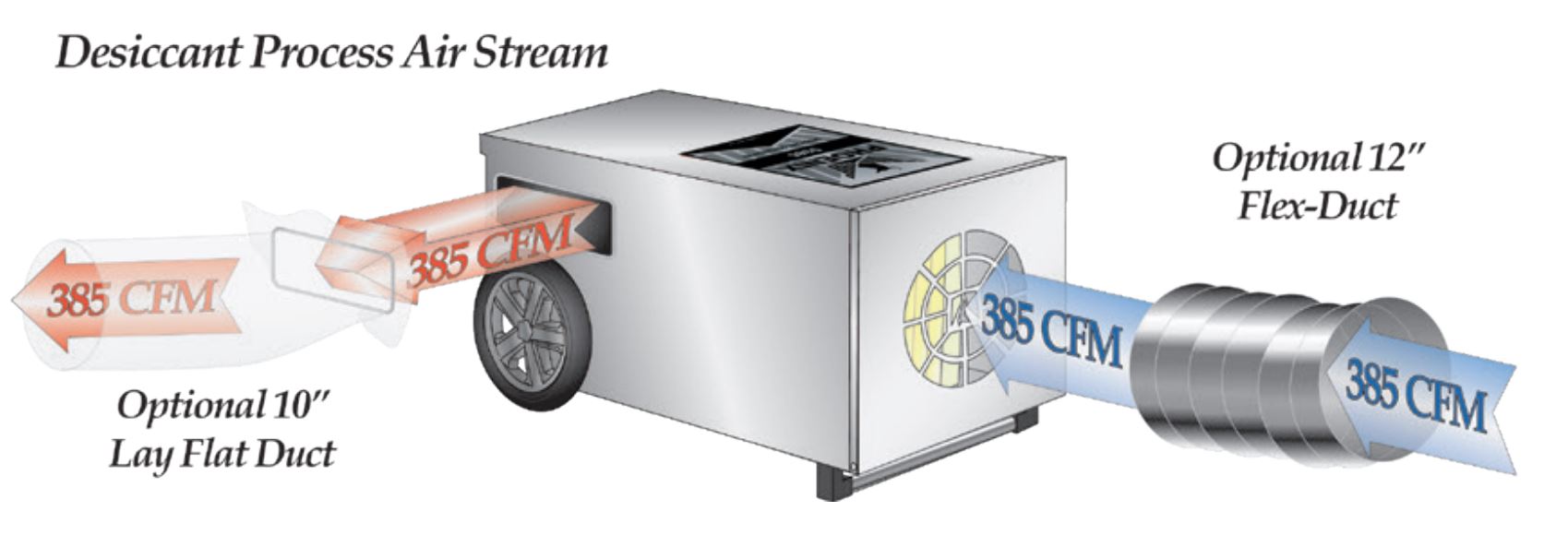

Ducting Options
| Connection | Size/Type | Status |
|---|---|---|
| Process Inlet | 12" flex-duct | Optional |
| Process Outlet | 10" lay-flat collar | Optional |
| Reactivation Inlet | 6" flex-duct | Optional |
| Reactivation Outlet | 6" flex-duct | Required |
Ducting Accessories
- 4026859: 6" Metalized Polyester Flex-Duct 25' (Standard)
- 4020128: 6" Insulated Flex-Duct 25'
- 4024750: 12" Metalized Polyester Flex Duct 25'
- 4022537: 10" Lay Flat Duct 500'
- 4024935: 10" Lay Flat Duct 250'
Monitoring Equipment
- 4030115: Reed LM-8000 Meter
Process Air Filter Replacements
- 4021475: 16" x 20" x 2" MERV 11 Filter (Standard)
- 4024969: 16" x 20" x 2" MERV 6 Filter (Optional)
- 4022164: 16" x 20" x 2" MERV 14 Filter (Optional)
Reactivation Air Filter Replacement
- 4026315: 12" x 12" x 1" MERV 7 Filter
Video
Product Support
Warranty
Year 1 - 100% of Parts and Labor
