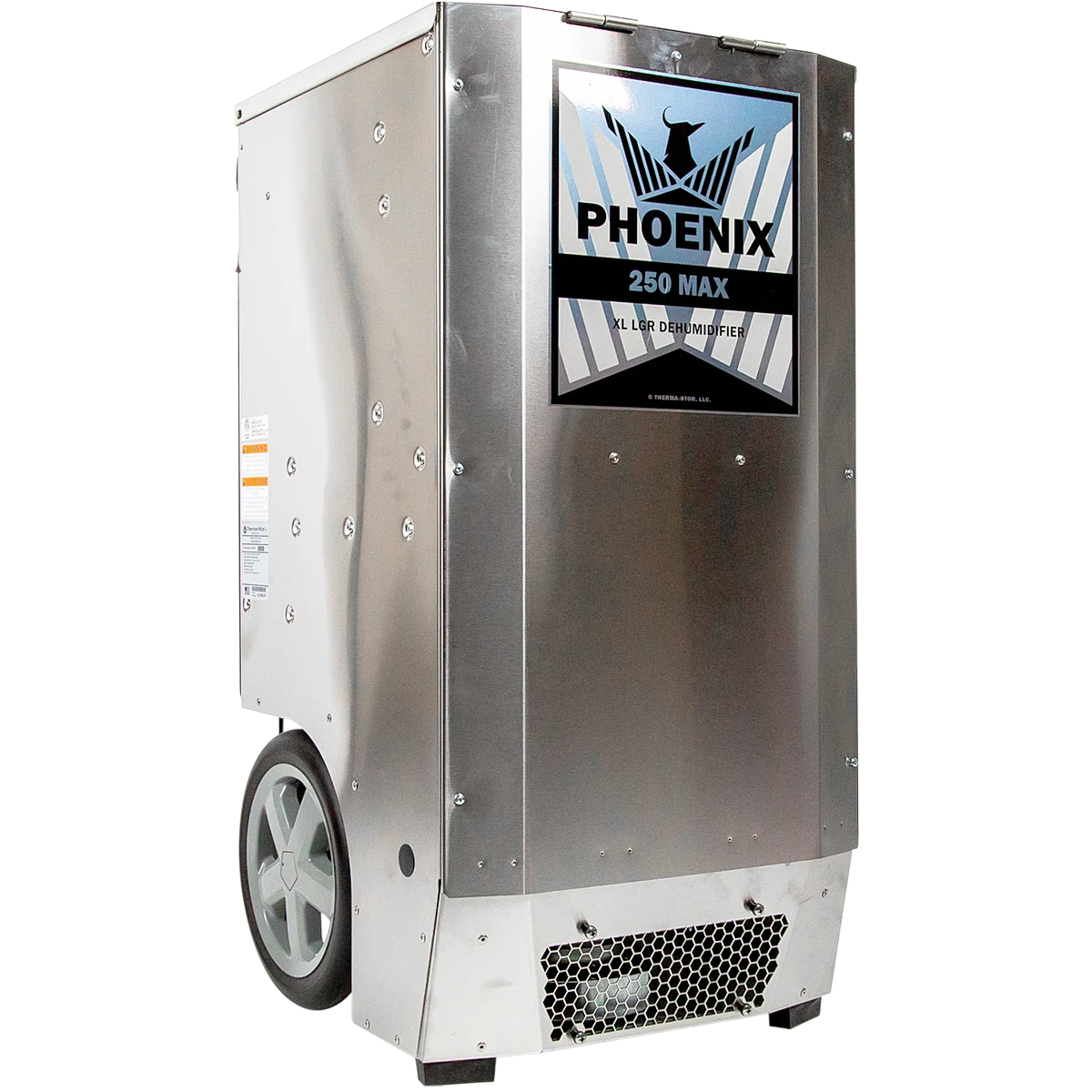

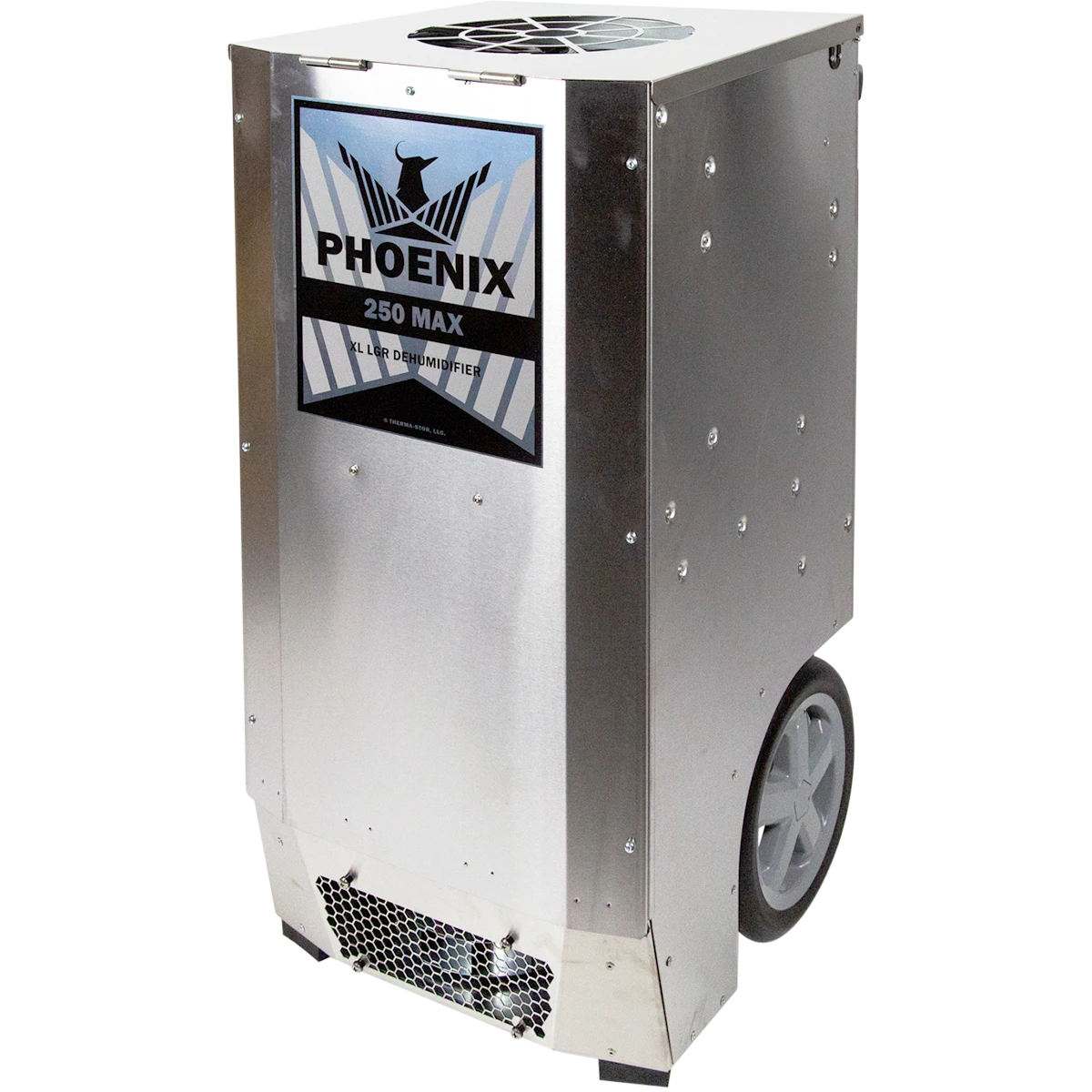

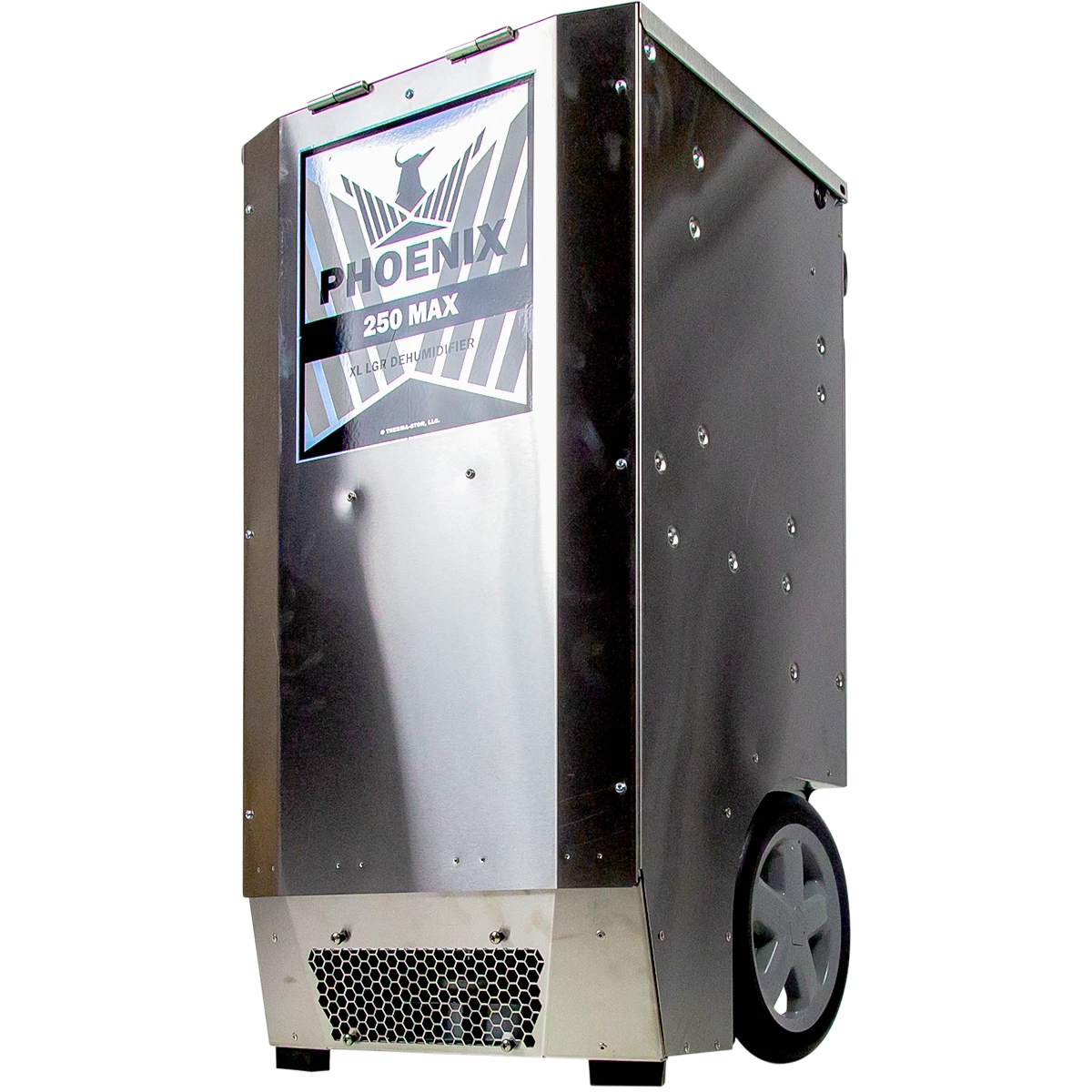

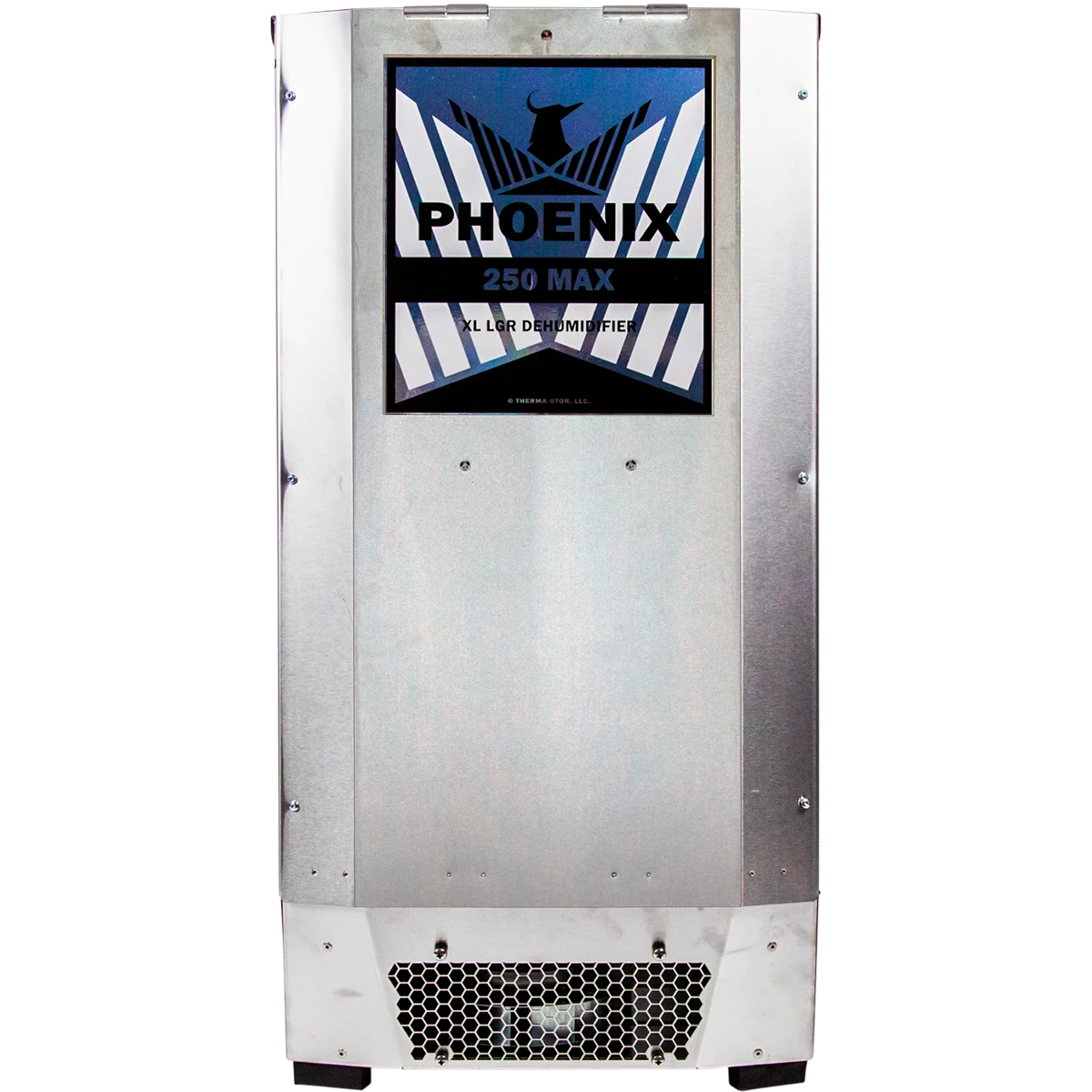

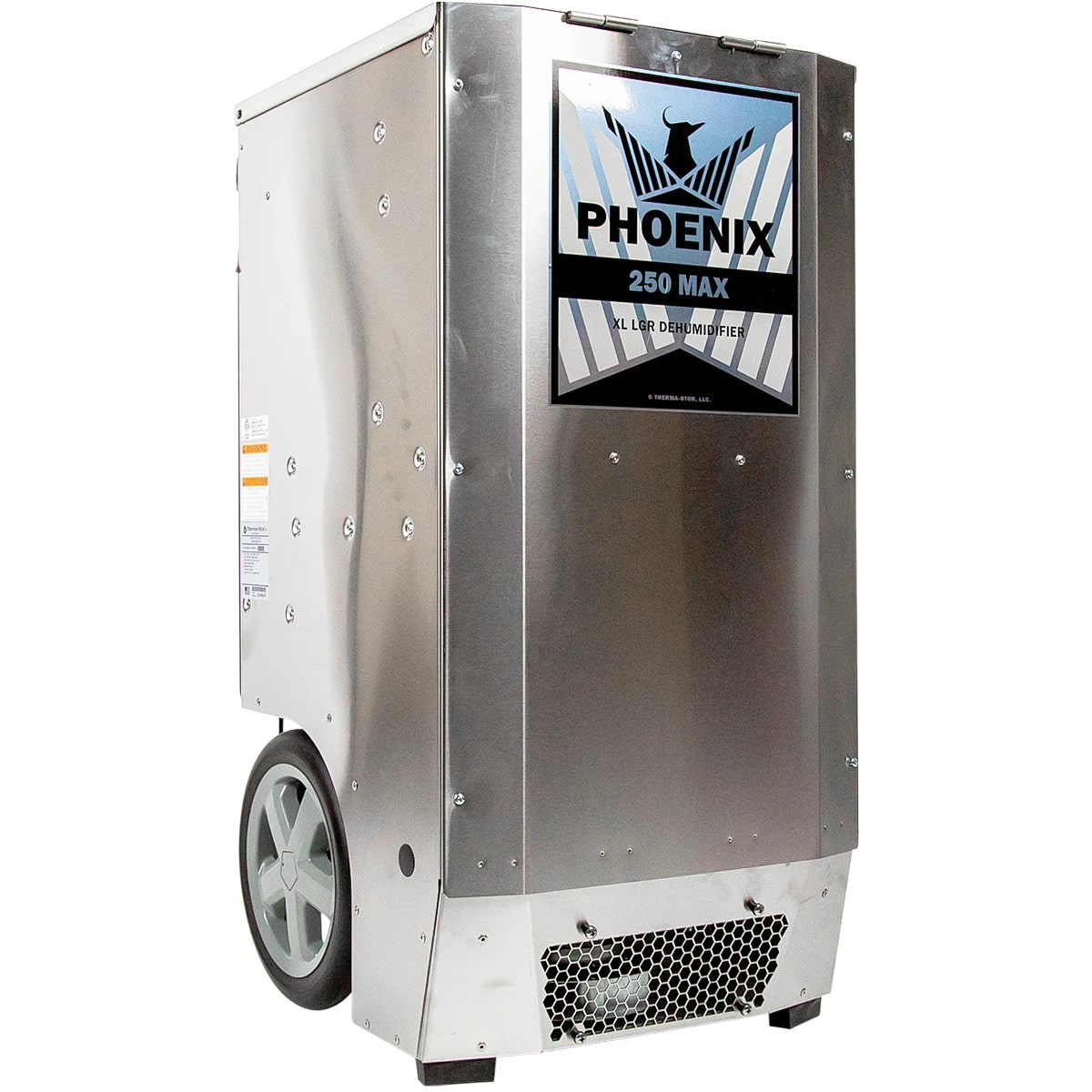

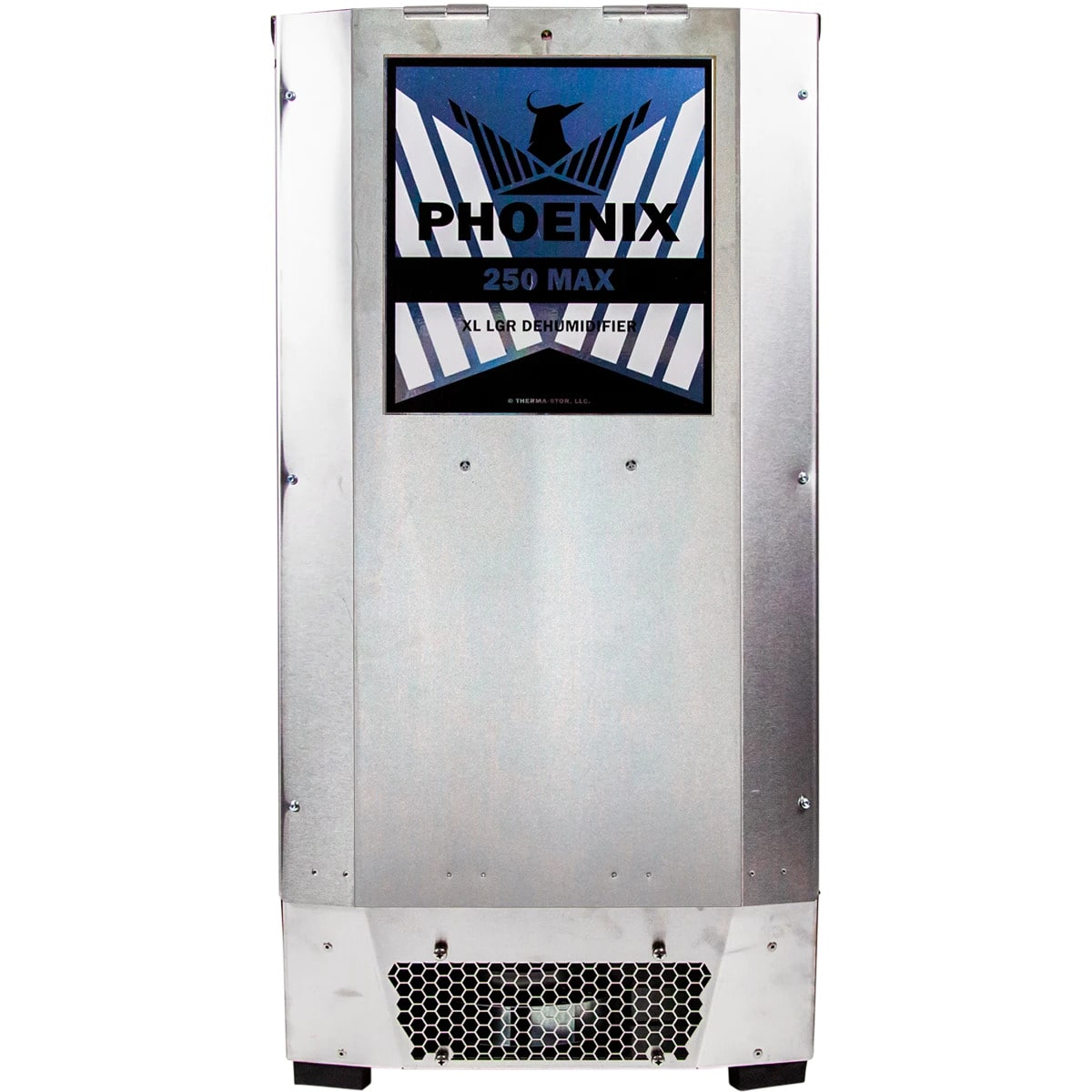

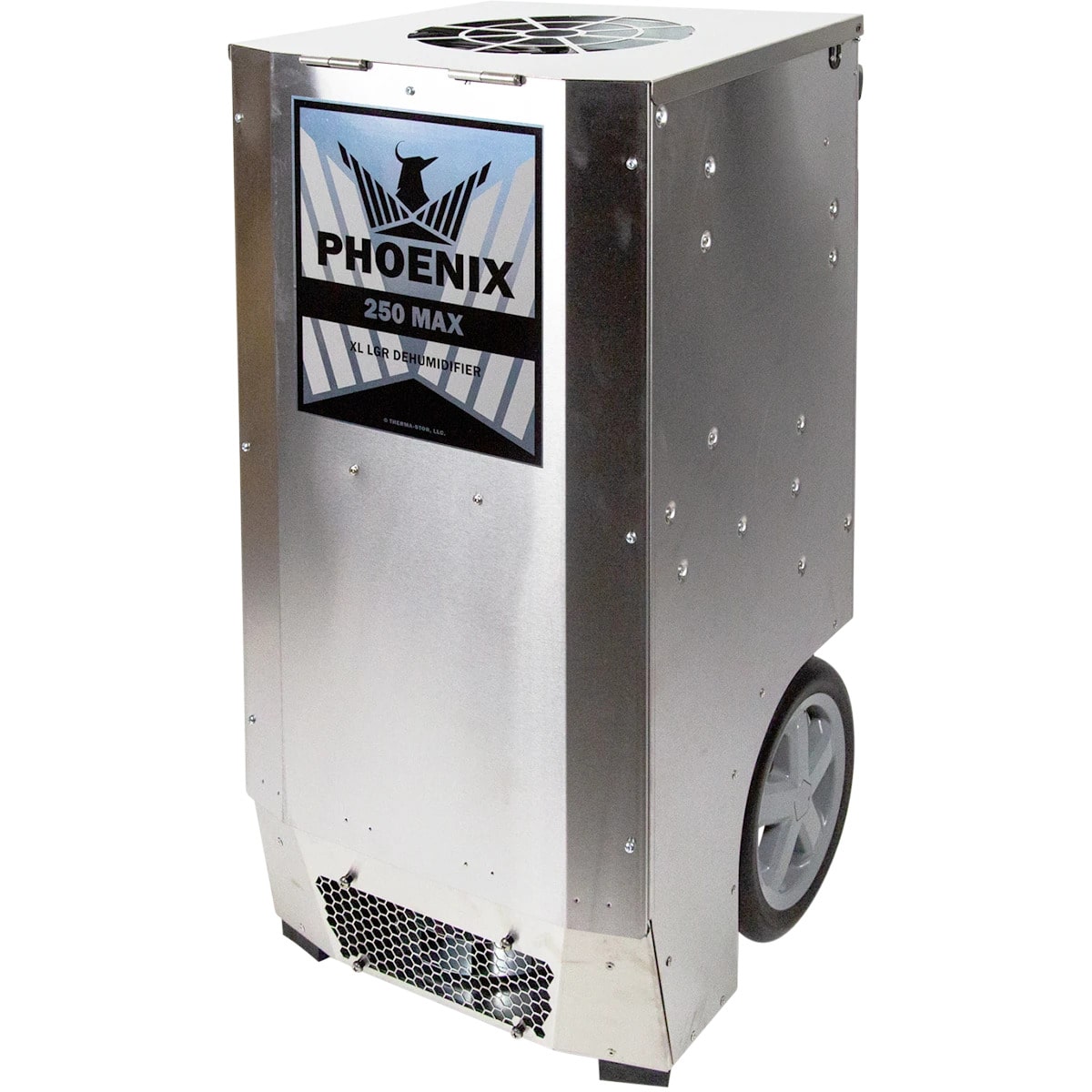

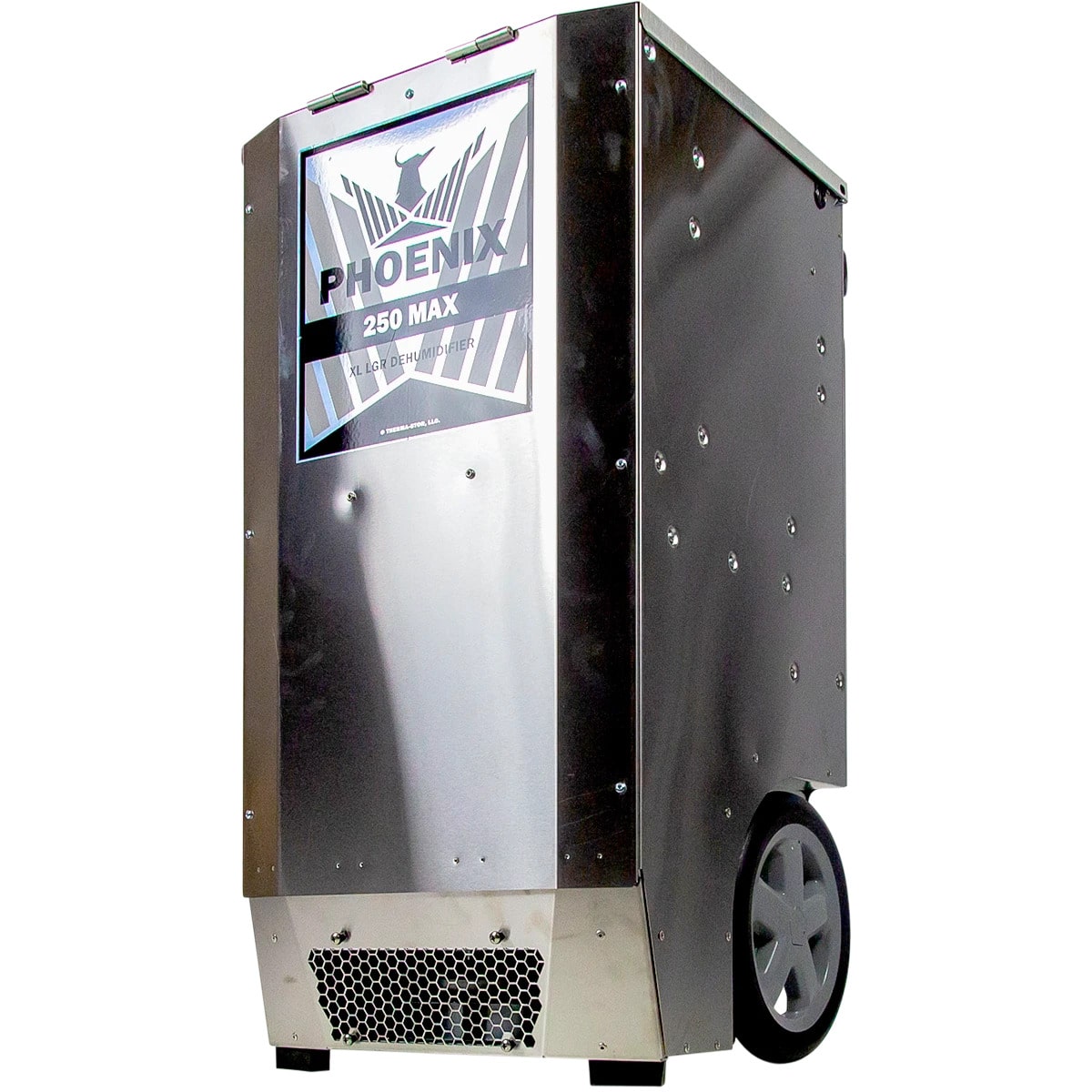

Phoenix Dehumidifier 250 MAX - High-Performance Dehumidification Even at 125°F
A top-level professional dehumidifier, the Phoenix dehumidifier 250 MAX gives you outstanding low grain operation coupled with exceptional high-temperature performance. It removes 145 ppd at AHAM conditions.
The Phoenix 250 MAX dehumidifier combines the latest in Phoenix technology with a lineage dating back to the original Phoenix 200. Building on decades of innovation, this unit merges the best features of the legendary 200 MAX and the high-temperature excellence of the 200 HT into one powerful dehumidification system.
Outperforms competitors at ALL temperature conditions - no bypass needed, no jobsite adjustments required. Plus, it's one of the most energy efficient units available, delivering exceptional pints per kilowatt-hour performance.
High Performance Water Removal
- 145 pints/day at AHAM conditions (80°F, 60% RH)
- 31 gallons/day maximum capacity
- Improved grain depression delivers the driest air from an LGR unit
Energy Efficiency
- Less than 8.2 amps current draw
- Removes the most pints of water per kilowatt-hour
- Even beats the beloved 200 MAX for efficiency
Versatile Operation
- Multiple ducting options: 12" intake, 10" lay-flat supply
- Multiple air filter options: Standard 65% MERV-11 or 57% MERV-8
- Wide temperature operating range: 33°F to 125°F
Professional Construction

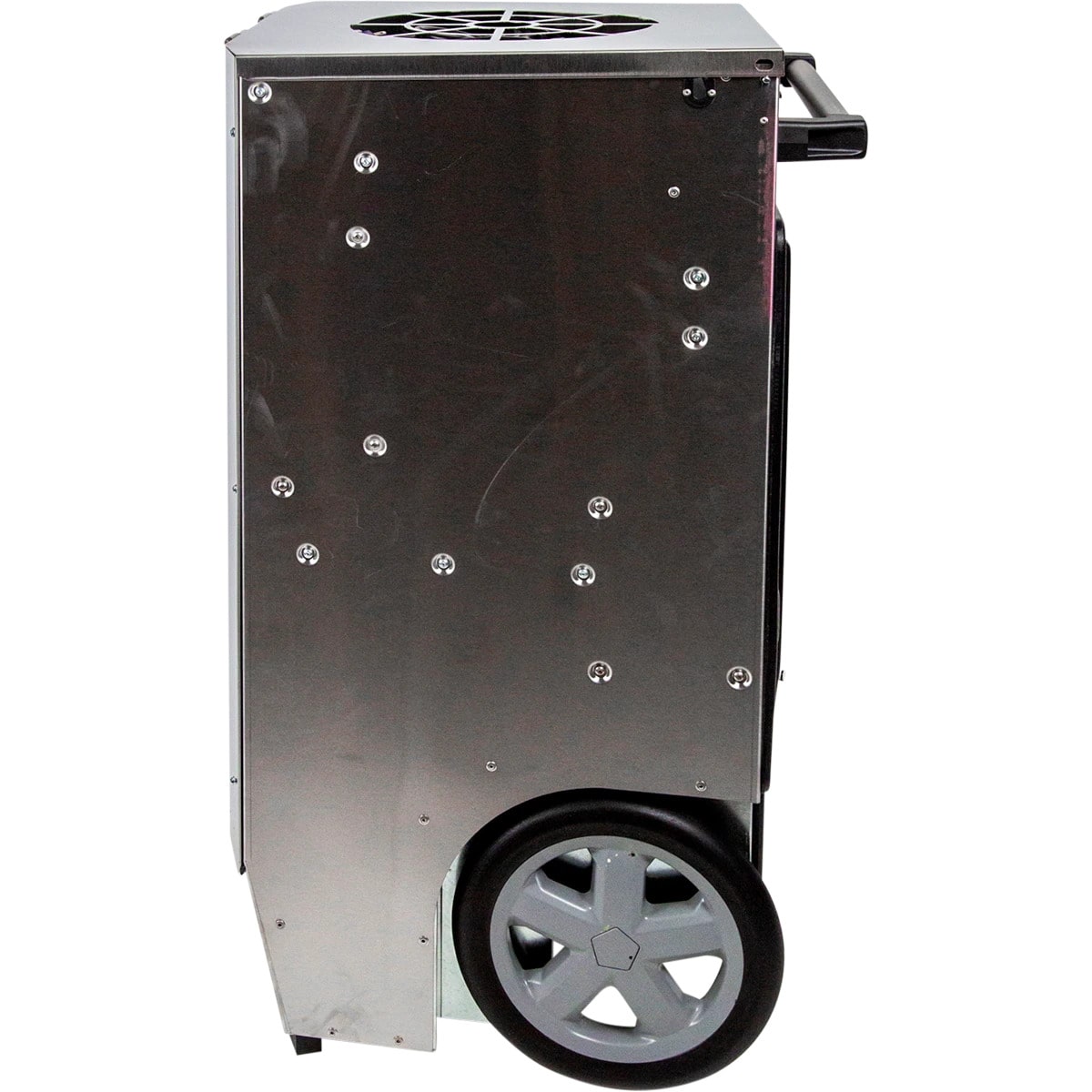

- Stainless steel cabinet for durability

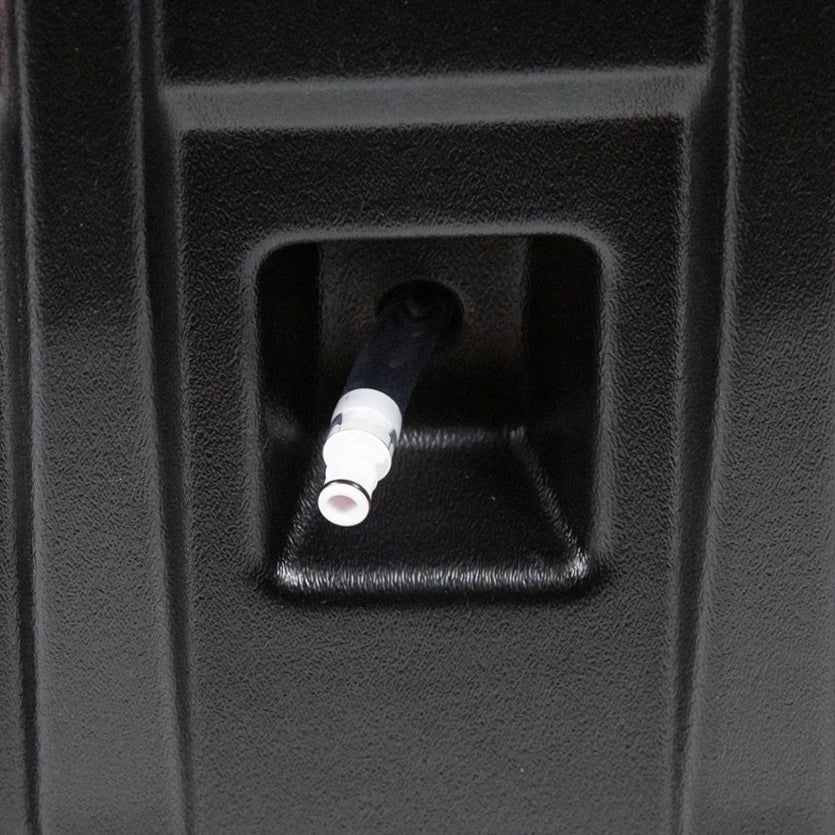

- Internal pump with 30 feet of hose included

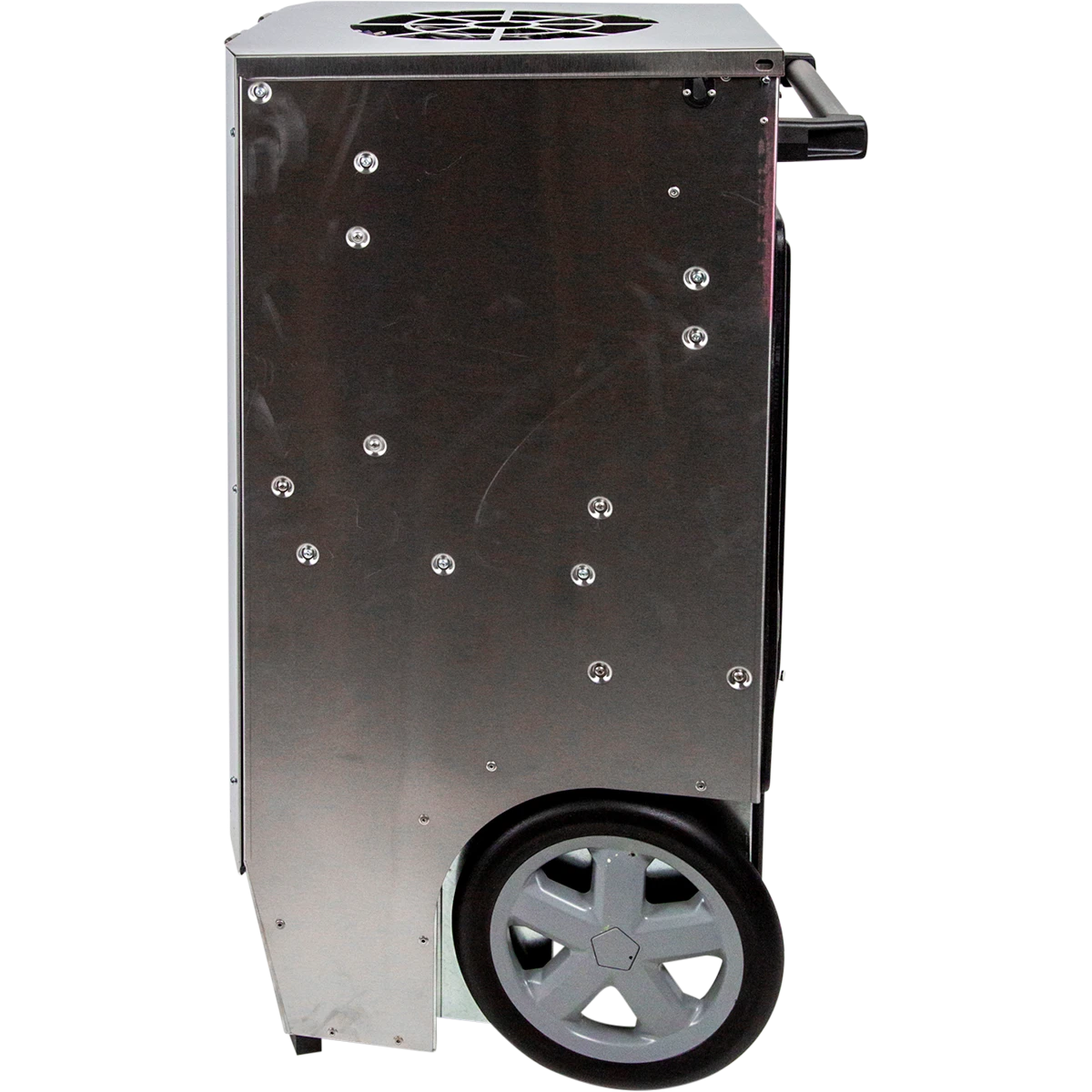

- 12" wheels for easy mobility
- 1/8" thick skid plate for protection
- Convenient storage for power cord and drain hose
SPECIFICATIONS
| Specification | Details |
|---|---|
| Part Number | 4030010 |
| Power Requirements | 120 VAC, Grounded / 8.2 Amps Current Draw |
| Water Removal | 145 PPD at 80°F/60% RH (AHAM) |
| Airflow (CFM) | 365 CFM without external ducting |
| Filter | Pleated 16" x 20" x 2" Media MERV-11 (Standard) |
| Ducting Options | SUPPLY: 10" lay-flat / INTAKE: 12" flex-duct |
| Operating Range | 33°F to 125°F |
| Refrigerant Charge | 2 lb, 5 oz. R-410A |
| Unit | Shipping | |
|---|---|---|
| Width | 20" | 24" |
| Height | 40" | 47" |
| Depth | 23" | 26" |
| Weight | 119 lbs | 137 lbs |
| Part Number | Filters & Ducting |
|---|---|
| 4024969 | 16" x 20" x 2" Pleated Media 30% MERV-8 |
| 4021475 | 16" x 20" x 2" Pleated Media 65% MERV-11 |
| 4024750 | 12" x 25' Intake Flex Duct |
| 4024935 | 10" x 250' Lay-flat Duct |
VIDEO
PRODUCT SUPPORT
WARRANTY
- Year 1: 100% of Parts and Labor
- Years 2-5: 100% of sealed refrigeration system parts
- Five-year warranty on the sealed refrigeration system
