Turn your iOS® and Android™ Smart Devices into a Thermal Camera with the FLIR ONE® Edge Pro
Connectivity & Operation

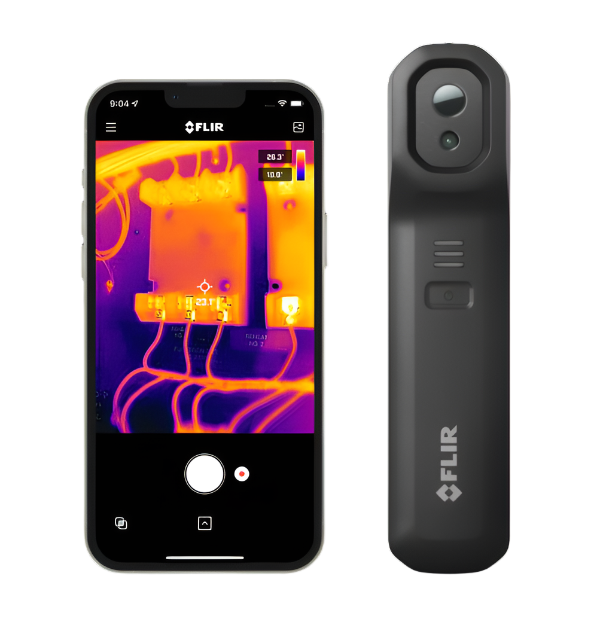

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation.
Imaging Technology
This thermal camera for smart phones combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) so you can take crisp thermal images from any angle.
Durability & Performance
Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments.
Device Compatibility
The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues.
Data Storage & Management
- All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use
- Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow
EASILY INSPECT ANYWHERE

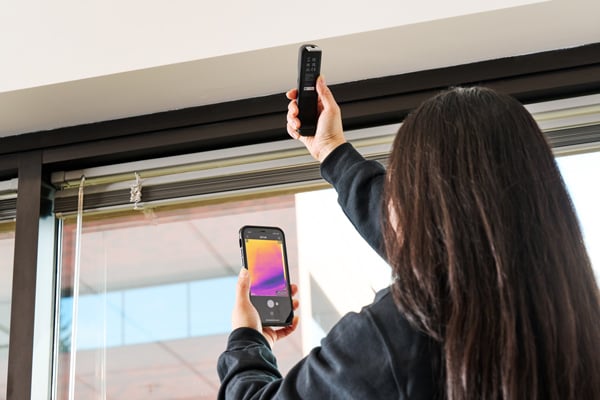

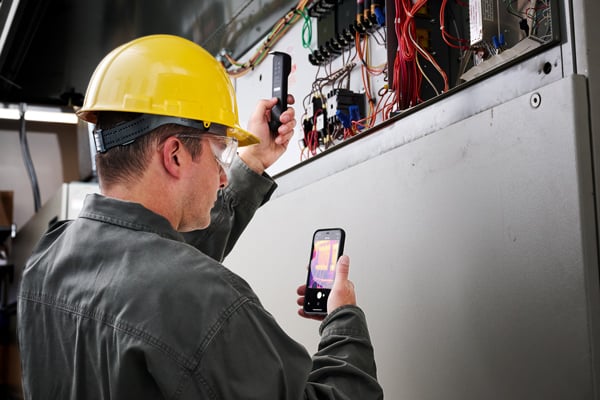

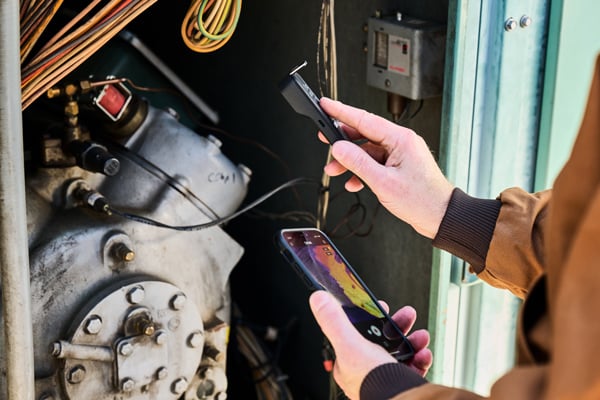

Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the FLIR ONE Edge Pro to your smart device for one-handed operation with a natural grip.
HIGH-QUALITY IMAGES AND PERFORMANCE
Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution.
A PROFESSIONAL TOOL
With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge Pro is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.

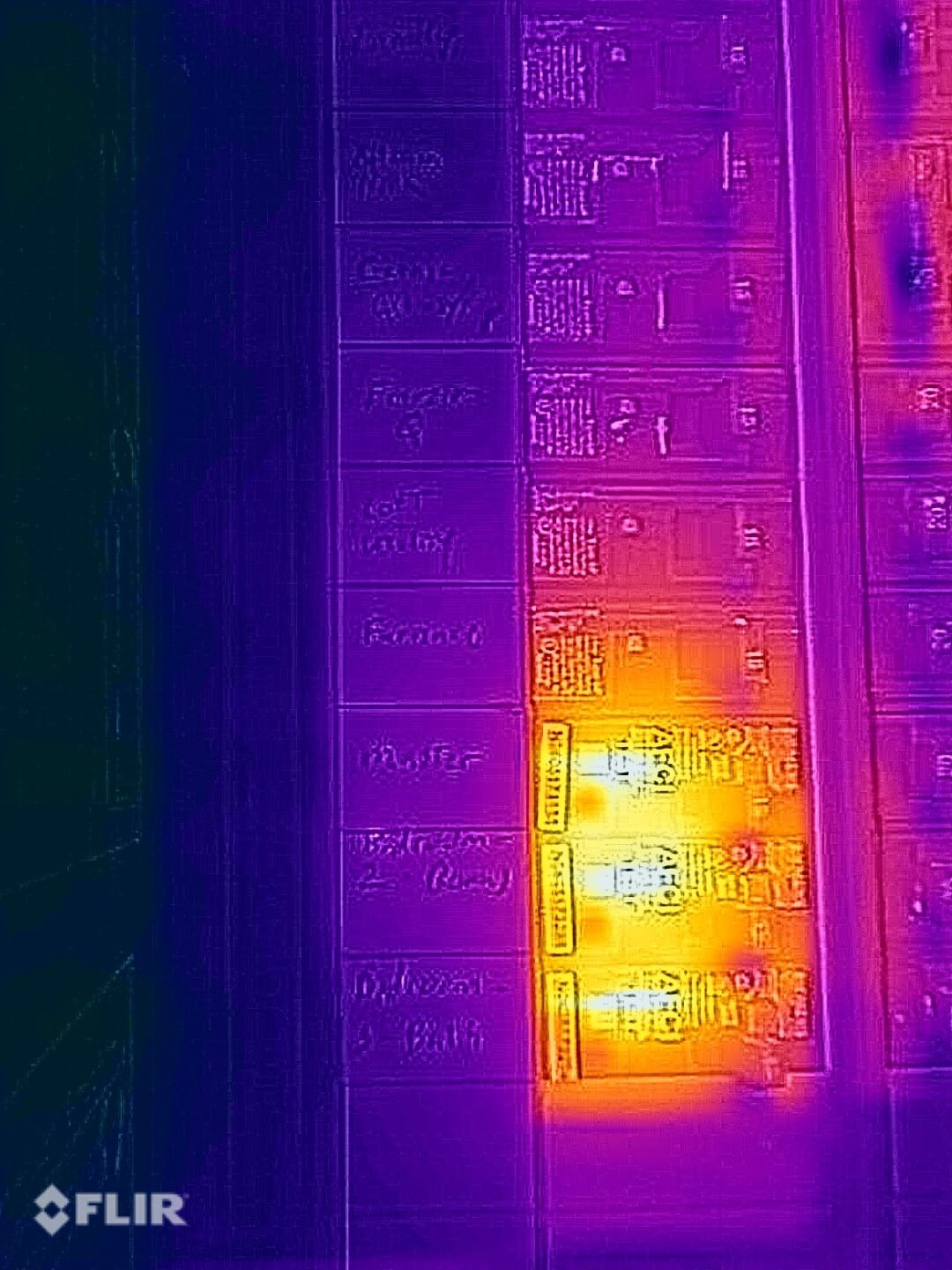

MSX® Image Enhancement
The FLIR ONE Edge Series features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.

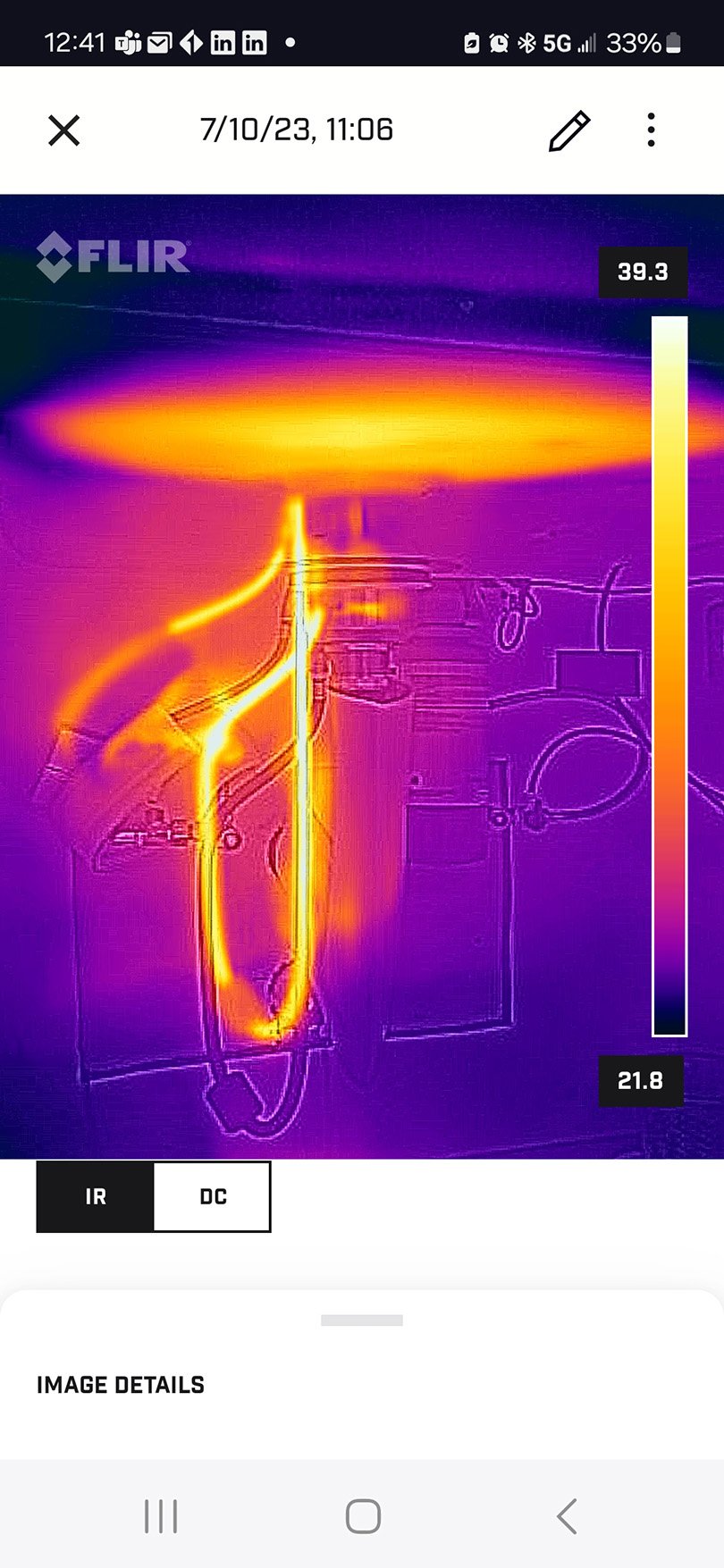

Get More from the FLIR ONE app
The FLIR ONE Edge Series connects to your smart device through the FLIR ONE app available on Google Play and the Apple App Store. The app allows you to view the live feed from your FLIR ONE camera; upload images directly to the FLIR IgniteTM cloud; change camera and display settings; access help articles to improve your camera knowledge; access inspection guides; and find third-party apps that meet your specific application or inspection needs.
FLIR Home Inspect
Use Your FLIR ONE Like a Pro
Home Inspect, within the FLIR ONE app, is your step-by-step guide to finding air leaks, insulation voids, moisture build up, and more with your FLIR ONE camera. Learn what to look for, get helpful tips for better inspections, and compare your results to typical faults so you can use your FLIR ONE with confidence.
FLIR ONE Mobile Apps for Your Unique Applications
Explore the large eco-system of available apps, or develop your existing app to integrate thermal capabilities
There is a wide range of FLIR ONE compatible mobile apps that offer a tailored solution for specific needs. Some examples include the RocketPlan app, which digitizes the claims process within restoration; the MultiSens-1234 app for plotting multiple sensor data within condition monitoring; and the ThermaFY Home app which analyzes your home's energy efficiency. Check out all the available apps, and if you are interested in developing an app or integrating thermal into your app, create a developer account today.
Videos
Specifications
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Battery Life
- Approximately 2 hours 30 minutes
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
Imaging & Optical
- Adjustable MSX distance
- 30 cm — Infinity
- Focus
- Fixed 30 cm — Infinity
- Frame Rate
- 8.7 Hz
- HFOV/VFOV
- 54° ±1° / 42° ±1°
- Image Modes
- Infrared, visual, MSX
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
- Shutter
- Automatic/Manual
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Thermal Sensitivity/NETD
- 70 mK
- Thermal Sensor
- Pixel size 12 µm, 8 — 14 µm spectral range
- Visual Resolution
- 640 × 480
- VividIR
- Yes
Power
- Battery charge time
- 60–90 min for fully charged
15 min charging, from empty battery, gives 40 min operating time
- Battery Life
- Approximately 2 hours 30 minutes
- Charging Method
- Female USB-C (5V/1A)
Measurement & Analysis
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Measurement Corrections
- Emissivity; Reflected apparent temperature (22°C / 72°F)
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
General
- Battery charge monitor
- 0 — 100%
- Clip Span
- 130 mm (min) / 195 mm (max)
- Compatible with FLIR software
- FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
- Device Compatibility
- iOS (version 16 and later) or Android (version 12 and later) smartphones and tablets
- Dimensions (H x W x D)
- 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
- Form Factor
- Phone
- Remote Operation
- Up to 5 m (16.4 ft) from smart device via Wi-Fi
- Weight
- 153 g (5.4 oz)
Environmental & Certifications
- Certifications
- RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
- Drop test
- Drop from 2 m (6.56 ft)
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Non-Operating Temperature
- -40°C to 70°C (-40°F to 158°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
Communication & Data Storage
- Bluetooth
- Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
- Capture modes
- Video, Still image
- Charging
- Female USB-C (5V/1A)
- File Formats
- Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
- WiFi
- IEEE 802.11 a/b/g/n
