Easy to use Pin & Pinless Moisture Meter for pros on the job site
-
Destructive or Non-Destructive Measurements
Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates.
-
Clear, Accurate Readings
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB.
-
Simple to Use and Create Reports
Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.
Overview

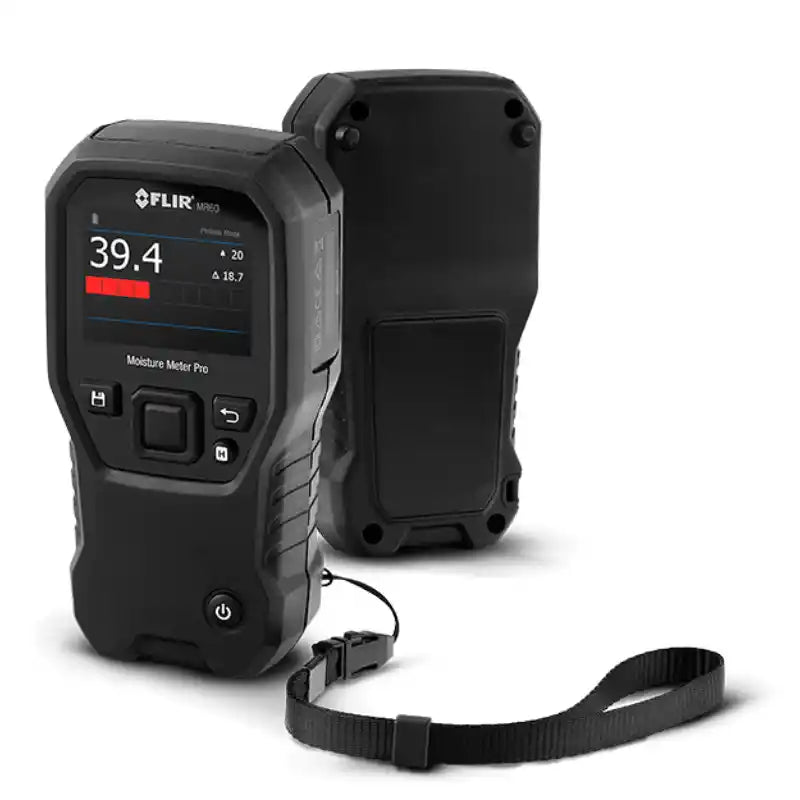

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
Video
Specifications
-
- Includes
- MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
Imaging & Optical
- Display type (W x H)
- QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display
Measurement & Analysis
- Measurement Resolution
- 0.1
- Pin Moisture via Ext Probe Range
-
Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only)
- Pinless Moisture Depth
- 1.9cm (0.75") maximum
- Pinless Moisture Range
- 0–100 relative measurement
- Response Time Pin Mode
- 750 ms
- Response Time Pinless
- 100 ms
- Sample Rate
- 10Hz (approx., both modes)
Communication & Data Storage
- Internal Memory
- 4GB
- Saved Image File format
- Bitmap (.bmp) with measurement values overlaid
- Stored Data File Format
- Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included.
- Stored Image Capacity
- 9999 images
Power
- Auto Power Off
- Programmable: OFF, 1, 5, or 20 minutes
- Battery
- 3.7 V, 3000mAh Li-ion rechargeable via micro USB
- Continuous Run Time
- 18 hours max
- Power Adapter
- 100–240 V input/ 5 V 1A output
- Power Requirements
- Integrated rechargeable battery
- Typical Usage
- 4 work weeks
General
- Includes
- MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
- Packaging Size
- 51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.)
Environmental & Certifications
- Agency Approvals
- FCC Class B, CE, UL
- Certification Standards
- EN61326 (EMC), EN61010 (Battery + Charger)
- IP Rating/Drop Test
- IP54/3m (9.8 ft)
- Operating Humidity
- ≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F)
- Operating Temperature
- 0~50 °C (32~122 °F)
- Storage Humidity
- 90% RH
- Storage Temperature
- -10~60°C (14~140°F)
- Warranty
- 2 years
