Infrared Guided Moisture Meter - Visually Detect & Measure with Precision
-
Troubleshoot Quickly
Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.
-
Identify and Verify Moisture
Use the built-in thermal imager to locate areas of moisture. Verify the moisture level using pin and pinless moisture measurement.
-
Portable, Tough, Durable
Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you
Overview
Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box — or as the perfect complement to any high resolution thermal camera you already own.

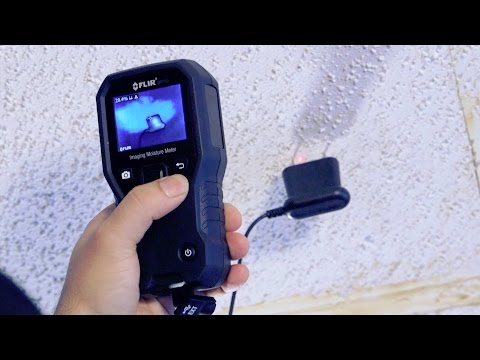

Video
Specifications
- Thermal Image Resolution
- 4800 pixels (80 × 60)
- Pin Moisture Groups
- 9 material groups
Imaging & Optical
- Field of View [W x H]
- 51° × 38°
- Gallery
- 17544
- Image Display
- Color moisture alert
- Laser Orientation
- Single laser pointer to center of thermal image
- Minimum Focus Distance
- 10cm (4")
- Spectral Response
- 8–14µm
- Thermal Image Resolution
- 4800 pixels (80 × 60)
- Thermal Imaging Detector
- FLIR Lepton® microbolometer
Measurement & Analysis
- Image Calibration
- Automatic
- Image Frame Rate
- 9 Hz
- Measurement Resolution
- 0.1
- Pin Moisture Groups
- 9 material groups
- Pin Moisture via Ext Probe Range [Accuracy]
- 0–100% WME (± 5%)
- Pinless Measurement Depth
- 0.75" (19mm) Max
- Pinless Moisture Range
- 0–100 relative measurement
- Response Time Pin Mode
- 750ms
- Response Time Pinless
- 100ms
- Thermal Sensitivity
- <0.15°C
Communication & Data Storage
- Saved Image File format
- BMP with measurement values overlaid
- Stored Image Capacity
- 9999 images
Power
- Battery
- 3.7 V, 3000 mAh Li-ion rechargeable via micro USB
- Battery power\Cont Run Time
- 18 hours max
- Battery power-Typical Usage
- 4 work weeks
- Power Requirements
- Integrated rechargable battery
General
- Dimensions (H x W x L)
- QVGA (320 x 240 pixel) 2.3" 64k color TFT
- Packaging Size
- 12.1 cm x 14 cm x 33.1 cm
Environmental & Certifications
- Agency Approvals
- FCC class B, CE, UL
- Certification Standards
- EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)
- Drop test
- 9.8’ (3m)
- Warranty
- 10 year
Warranty & Returns
2 year full product warranty*. 10 year detector warranty*.
Warranty & Return Info
This vendor permits returns for issues covered in the warranty only, such as repairs for defective items.
