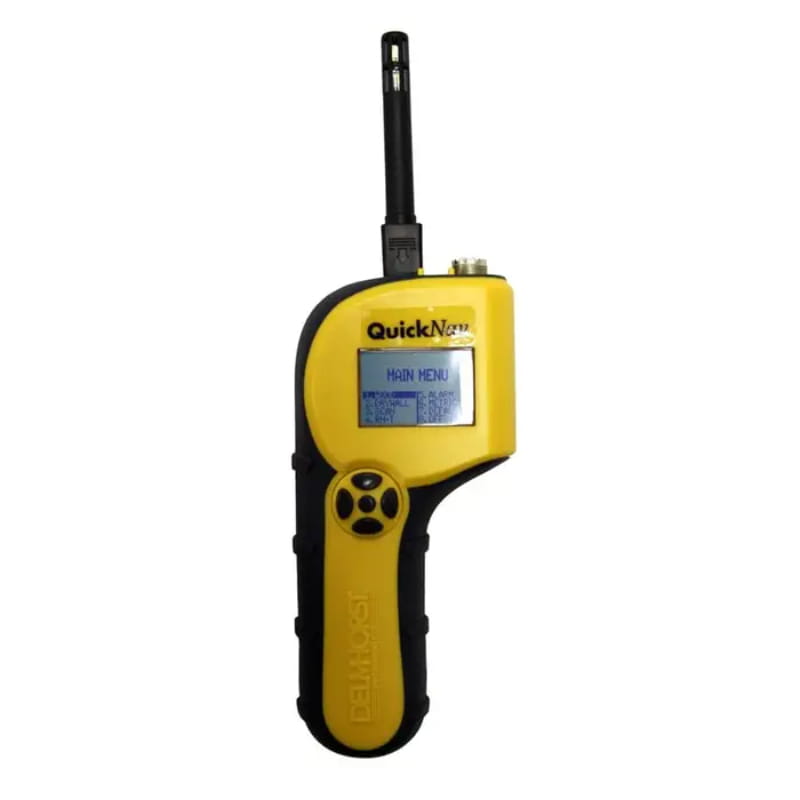

Delmhorst QuickNav is a simple to use 3-in-1 Moisture Meter for Water Damage Pros
User friendly 3-in-1 Delmhorst QuickNav Moisture Meter provides moisture readings in building materials using pin and scan modes, and has a thermo-hygrometer, all in one device. Tailored for water damage restoration professionals, QuickNav packs all the power of the NavigatorPro into an intuitive, easy-to-use design. Want a versatile 3-in-1 meter but don't need to store or downloading readings? QuickNav delivers exactly that.
SKU: QUICKNAVW/CS
What is included?
- QuickNav Meter
- 324CAS-0103 Carrying Case

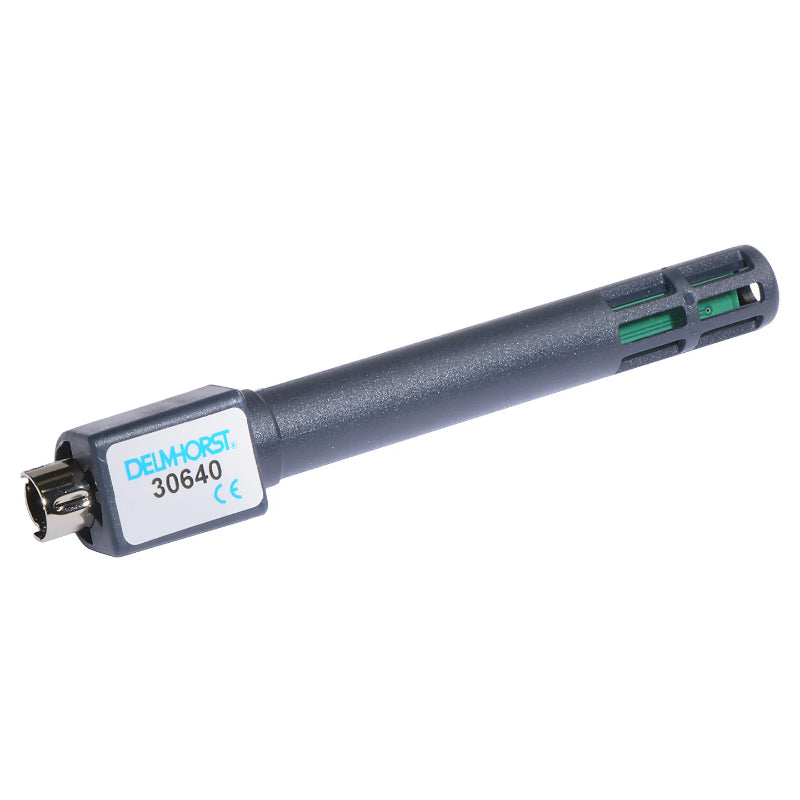

- RH/T-S1 Sensor - Relative Humidity/Temp Sensor
- Owner's Manual
Features of the QuickNav Moisture Meter
- Scan depth of ¾”
- Correction scales for wood and drywall
- Moisture range of 6-60% on wood and 0.1-6% on drywall
- Scan range of 0-300 numerical reference scale
- RH/T Range of 0-100% RH
- Measures temperature over the range of -40°F-255°F with of +/- 1.8°F over -4°F to 158°F (range of -40°C - 124°C with of +/- 1°C over -20°C to 70°C)
- Dewpoint -40°F - 176°F
- Calculates Vapor Pressure
- Grains Per Pound (GPP) 0.1 – 3820 GPP (0.1 – 545GPK)
- Backlit LCD screen
- Hold feature that allows the displayed reading when testing hard to reach areas
- Adjustable alarm alerts you when moisture level is reached, easily compare to established dry standard
3 Modes of the Delmhorst QuickNav
-

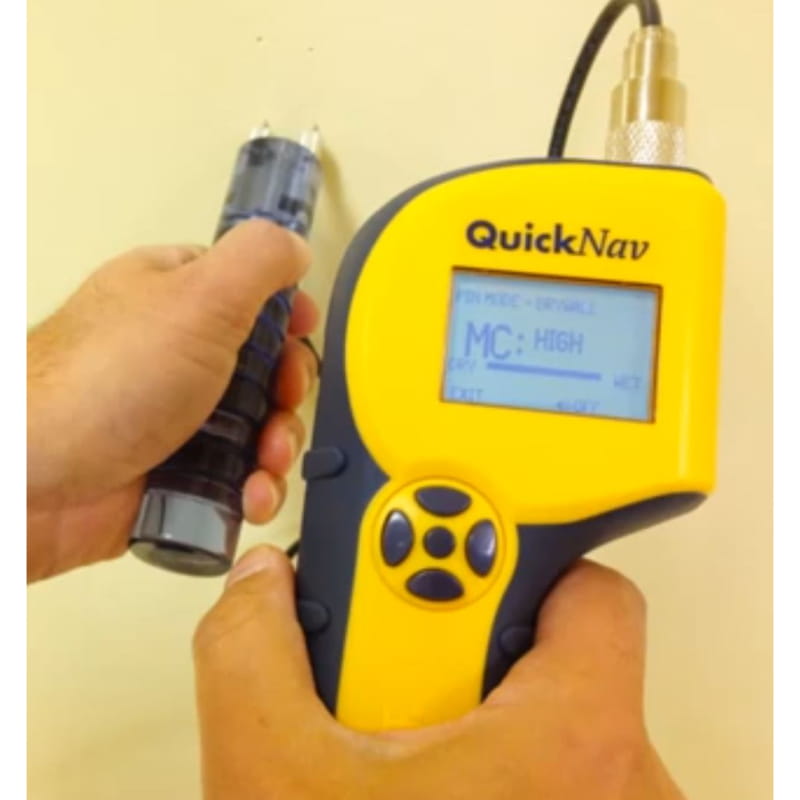

Mode 1: Pin mode -
- For drywall, wood, concrete, insulation, hardwood floors, subfloors, and other building materials.
- Moisture range of 6-60% on wood and 0.1-6% on drywall

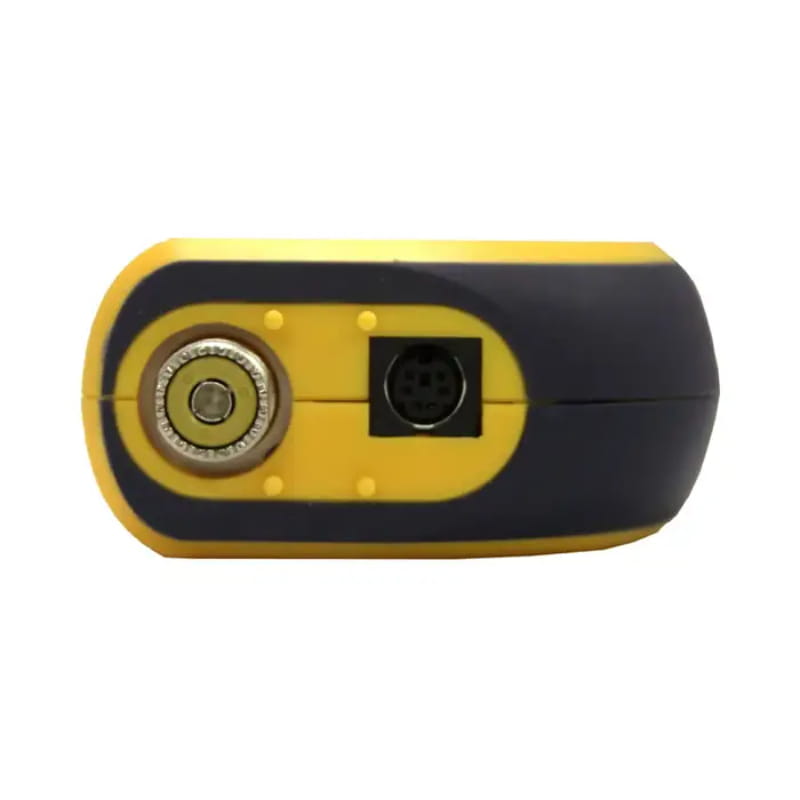

A variety of pins can be connected directly to the top of the moisture meter.
-

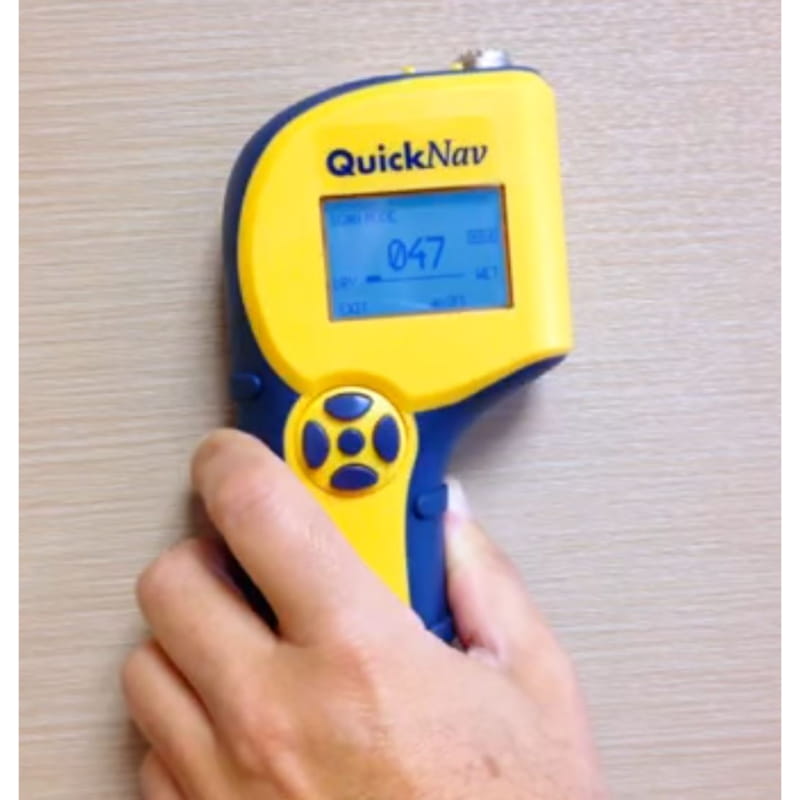

Mode 2: Scan Mode-

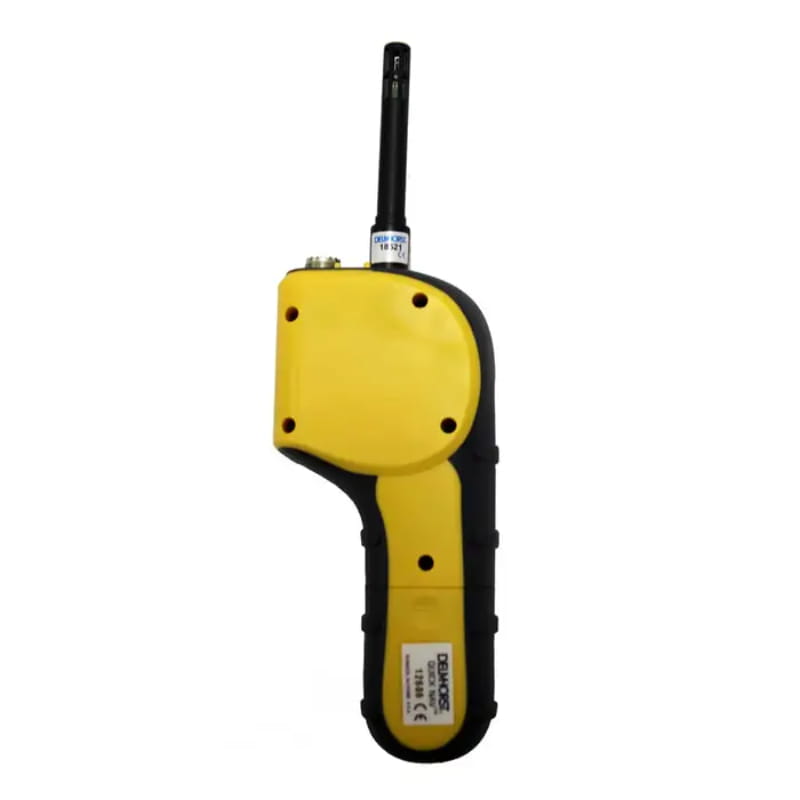

- For non-penetrating readings use the back surface of the moisture meter to scan for moisture.
- 0-300 numerical reference scale.
-

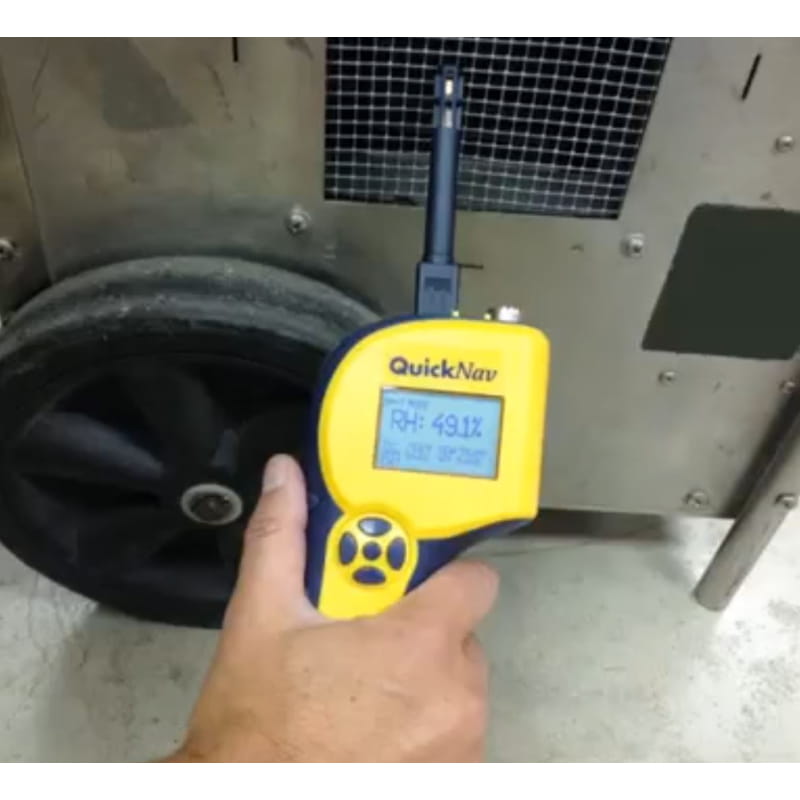

Mode 3: Thermo-Hygrometer:
- Measures temperature/RH (Relative Humidity).
- Calculates GPP(Grains per pound)/dew point.
Optional Packages
Optional Base Package with wood, drywall, masonry probe, PC Kit
Optional Contractor Package with wood/drywall/masonry probe, deep wall/insulation probe, slide hammer probe, PC Kit

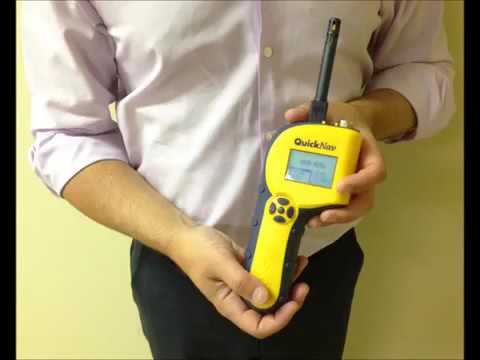

Product video
Warranty
1 Year Warranty
