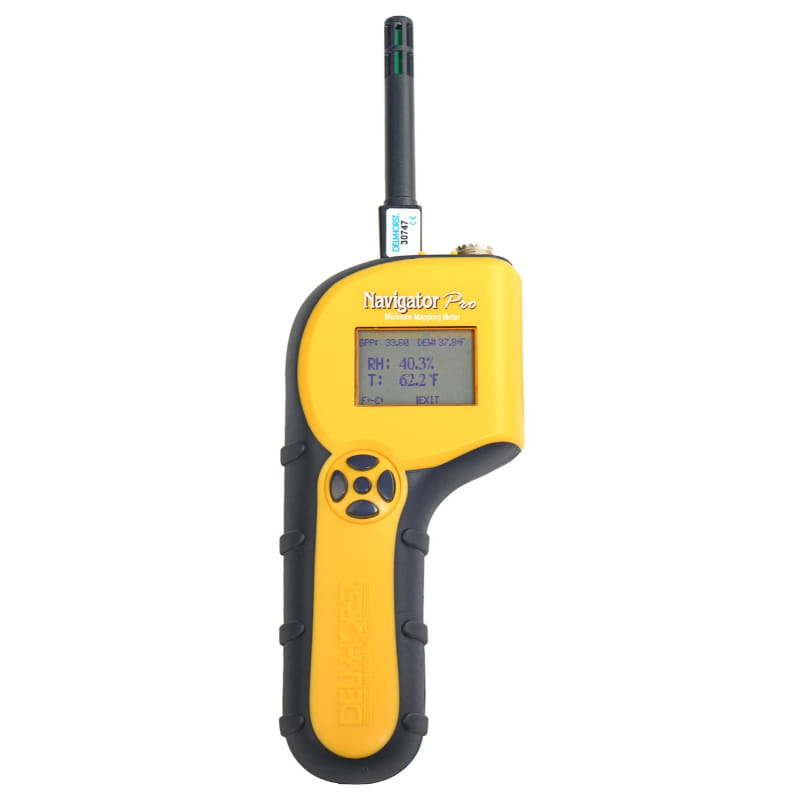

3-in-1 Delmhorst Navigator Pro Advanced Package includes three electrodes for jobsite flexibility and PC kit for downloading moisture reading results.
SKU: NAVPRO/RP

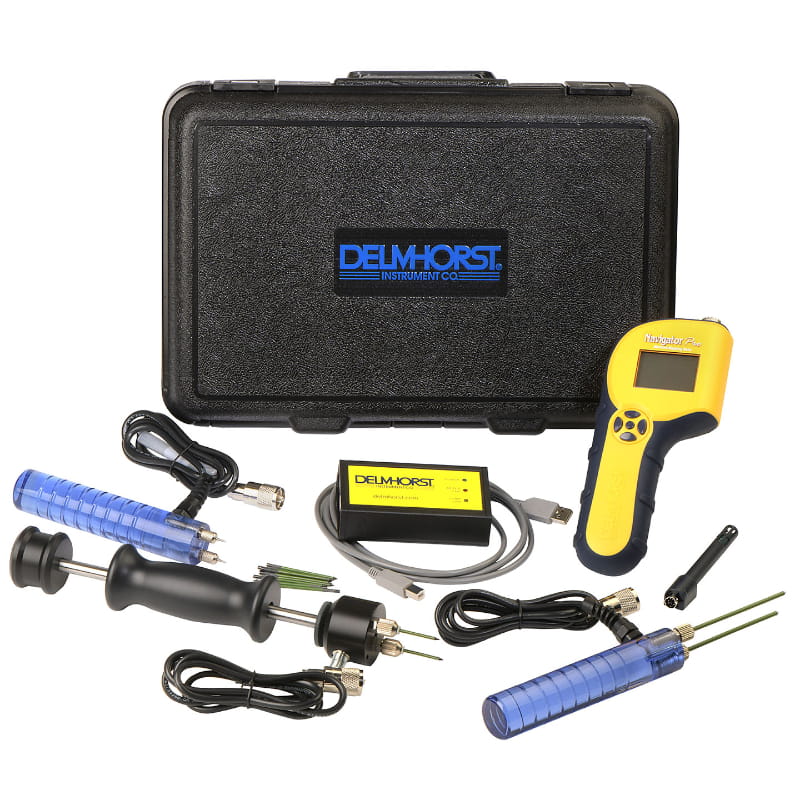

What is included in this Advanced Delmhorst Moisture Meter Package?
- Navigator Pro Moisture Meter
- 324CAS-0103 Carrying Case

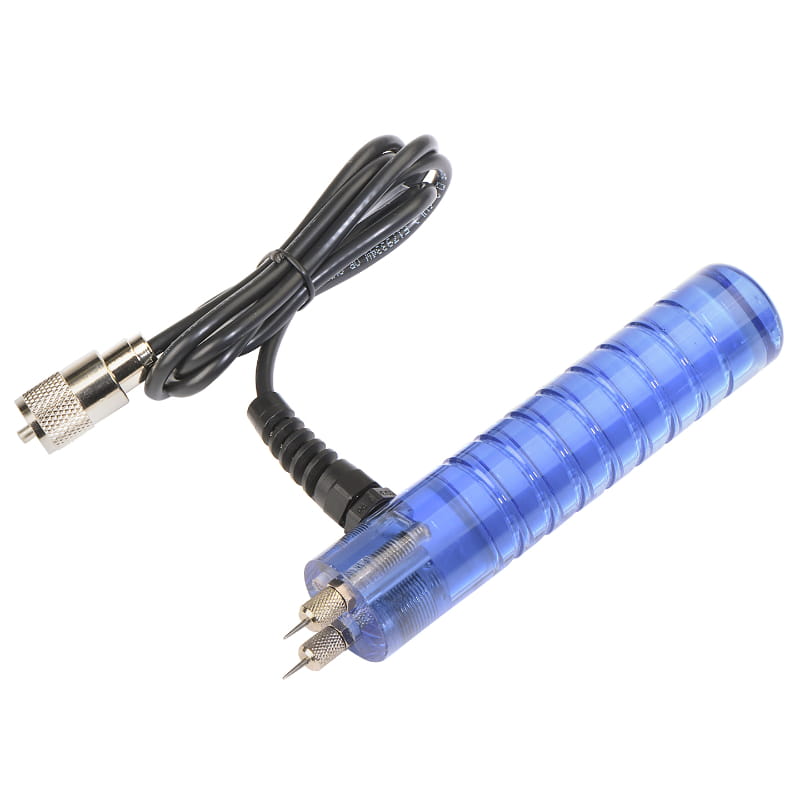

- 2-E Electrode - Ideal probe for wood, drywall, and masonry.

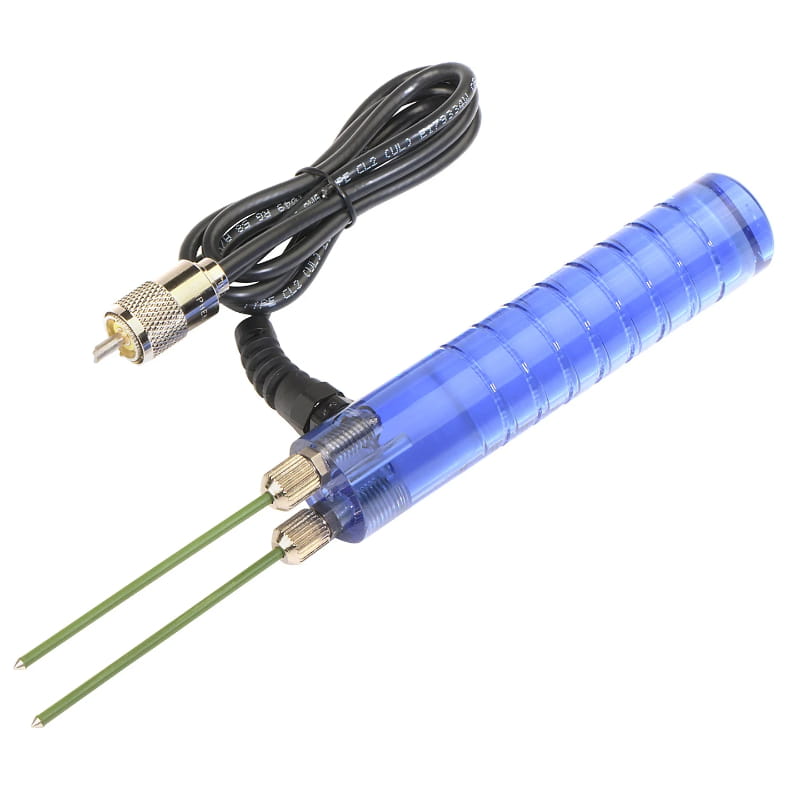

- 21-E Electrode - Delmhorst Moisture Probe for testing wall cavities, insulation behind drywall, stucco and roofing materials.

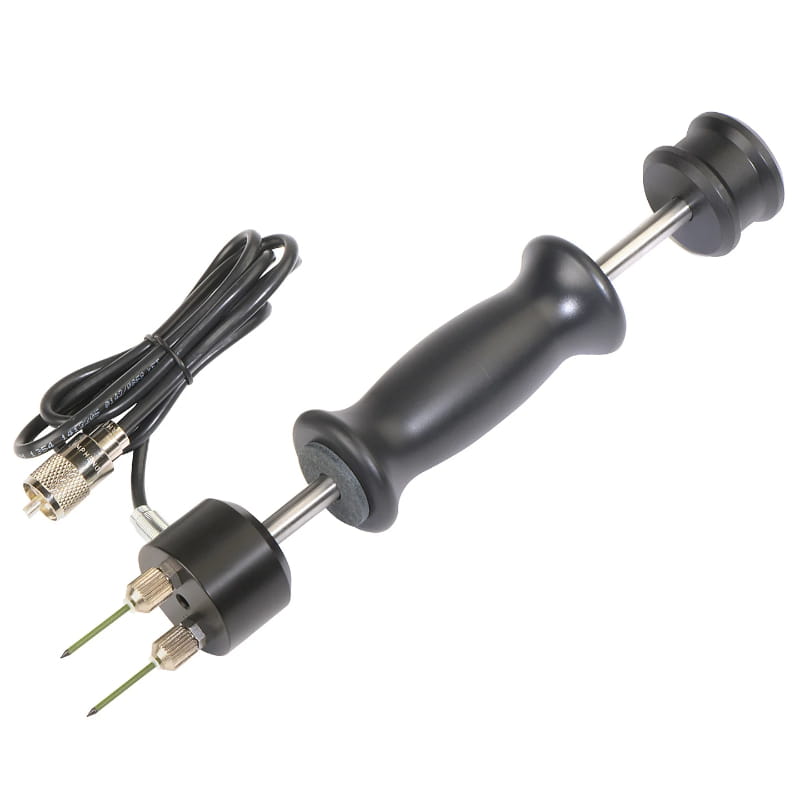

- 26-ES Electrode - Slide hammer electrode fitted with contact pins. The pins make contact with wood fibers only at their uninsulated tips and provide much more accurate readings of moisture content at various levels of penetration.
- RH/T-C1 Extension Cable - 3' long cable to connect the RH/T-S1 (relative humidity/temp sensor) to the moisture meter. Easily view the meter screen while measuring in hard-to-reach areas.
- PC/KIT/USB PC Interface Kit for uploading readings onto computer

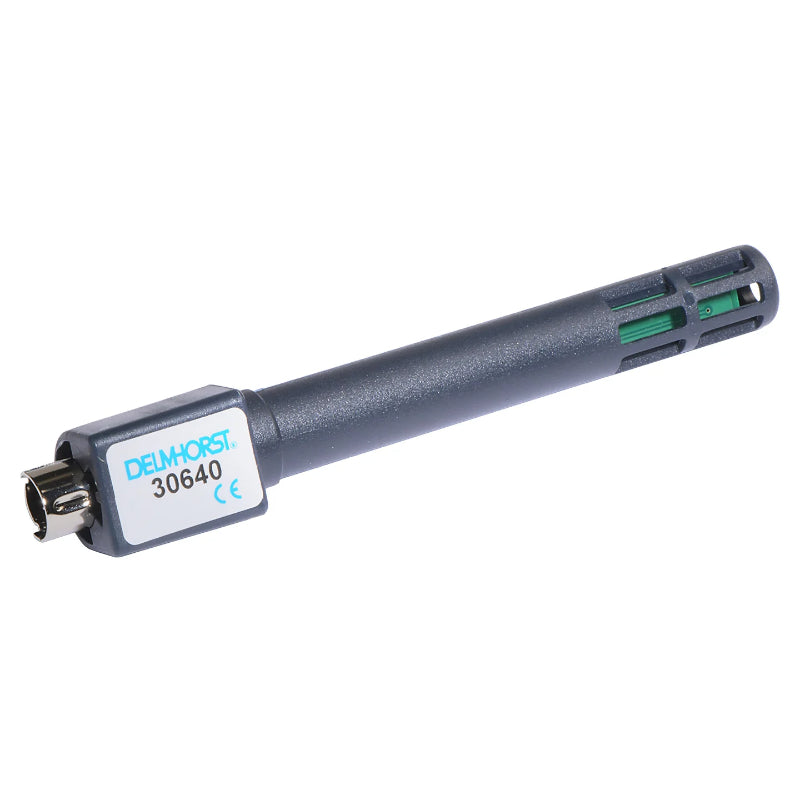

- RH/T-S1 Sensor (Relative Humidity/Temp Sensor)
- Owner's Manual
Features of the Delmhorst Navigator Pro -
-
Mode 1: Pin mode (below Delmhorst Moisture Probes are included)
- 2-E Electrode - For drywall, wood, concrete, insulation, hardwood floors, subfloors, masonry, and other building materials.
- 21-E Electrode - Delmhorst Moisture Probe for testing wall cavities, insulation behind drywall, stucco and roofing materials.
- 26-ES Electrode - Slide hammer electrode fitted with contact pins. The pins make contact with wood fibers only at their uninsulated tips and provide much more accurate readings of moisture content at various levels of penetration.
- 5%-60% MC wood
- 0-100 numerical reference scale.
- 0.1% - 6% drywall scale.

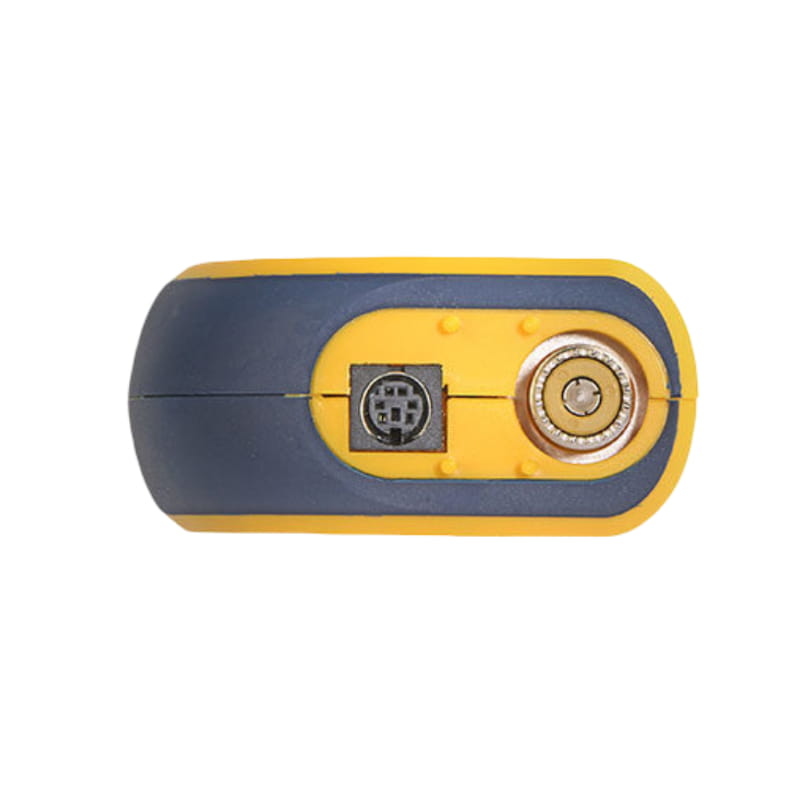

A variety of pins can be connected directly to the top of the moisture meter.
-
Mode 2: Scan Mode-

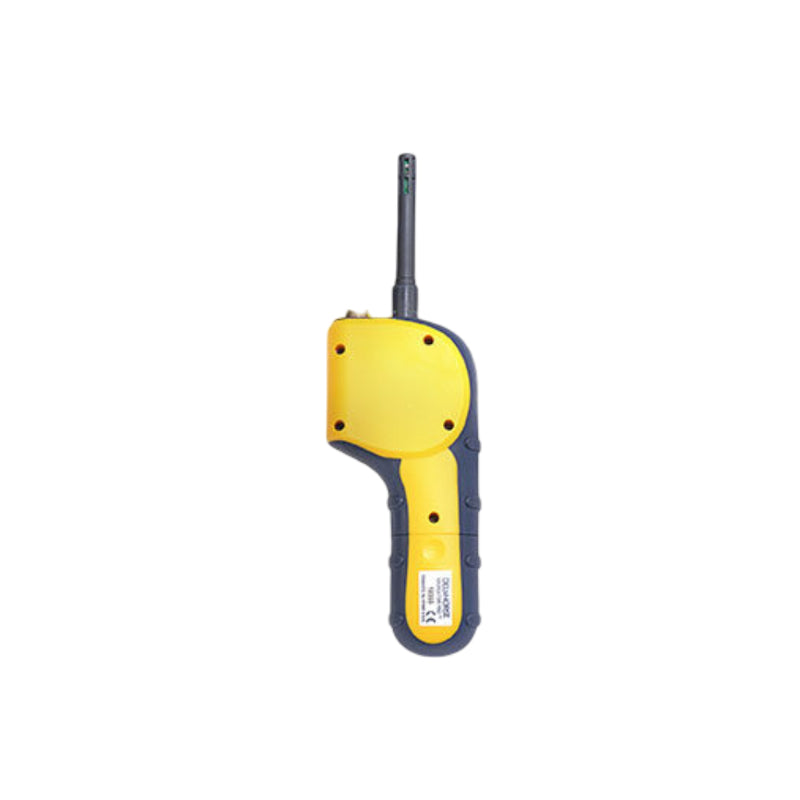

- For non-penetrating readings use the back surface of the moisture meter to scan for moisture.
- 0-300 numerical reference scale.
-
Mode 3: Thermo-Hygrometer:
- Measures temperature/RH (Relative Humidity).
- Calculates GPP(Grains per pound)/dew point.
Basic or Enhanced Mode on the Navigator Pro Delmhorst Moisture Meter
- Select Basic Mode for quick and easy use without storage, OR Enhanced Mode for full data room by room readings storage capability
- Store up to 5 jobs worth of data with unique Job ID numbers
- Once a job is set up, the moisture meter will prompt you where to take your next reading.
- Organize readings by specific rooms, with up to 32 rooms per job
- Within each room you can identify the materials for the floor, walls, and ceiling.
- Store up to 1400 readings with date, time, room, and location stamp.
- View stored readings on screen.
- Included Windows based software & PC Kit to download readings to PC and generate Excel reports.
Specifications
- Size: 8 ½” x 3 ⅜” x 1 ¾”.
- Weight: 11 oz.
- Rugged construction ensures years of reliable use.
Optional Packages
Optional Base Package with wood/drywall/masonry probe, PC Kit
Product Video
Warranty
- 1-year limited warranty.
